Modern Forms Slim - 06 Attaching the Fan Blades

11FR-W2003
3
4

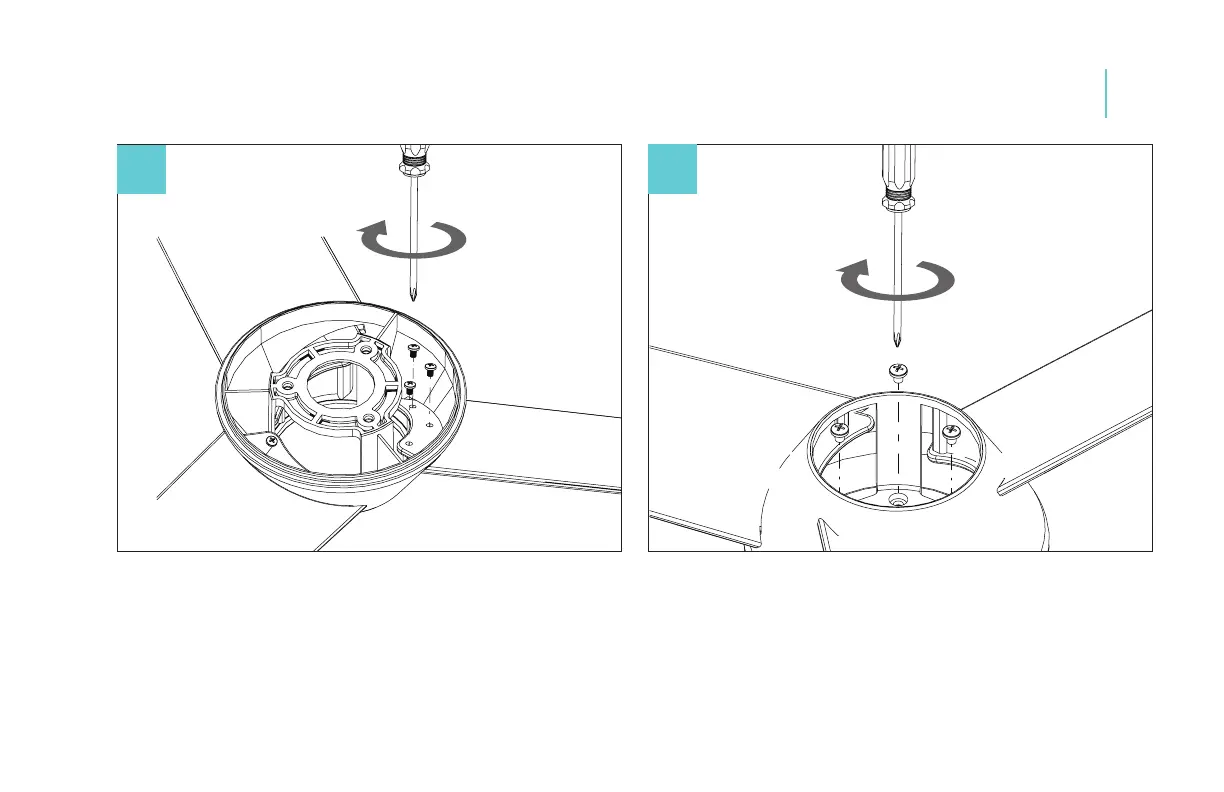

1. Place blade on motor and secure with the blade attachment,
screws and washers.
2. Insert blades in slots, aligning with motor assembly holes.
3. Secure blades with blade attachment screws & washers.
Attaching the Fan Blades
06
4. Remove set screws from motor housing, install blade collector
ring (when applicable), and re-install screws.
