Modern Forms Slim - 10 Installing the Luminaire Module

17FR-W2003
13
14
Installing the Luminaire Module 10
NOTE: If you are not installing the luminaire module skip to step 18.

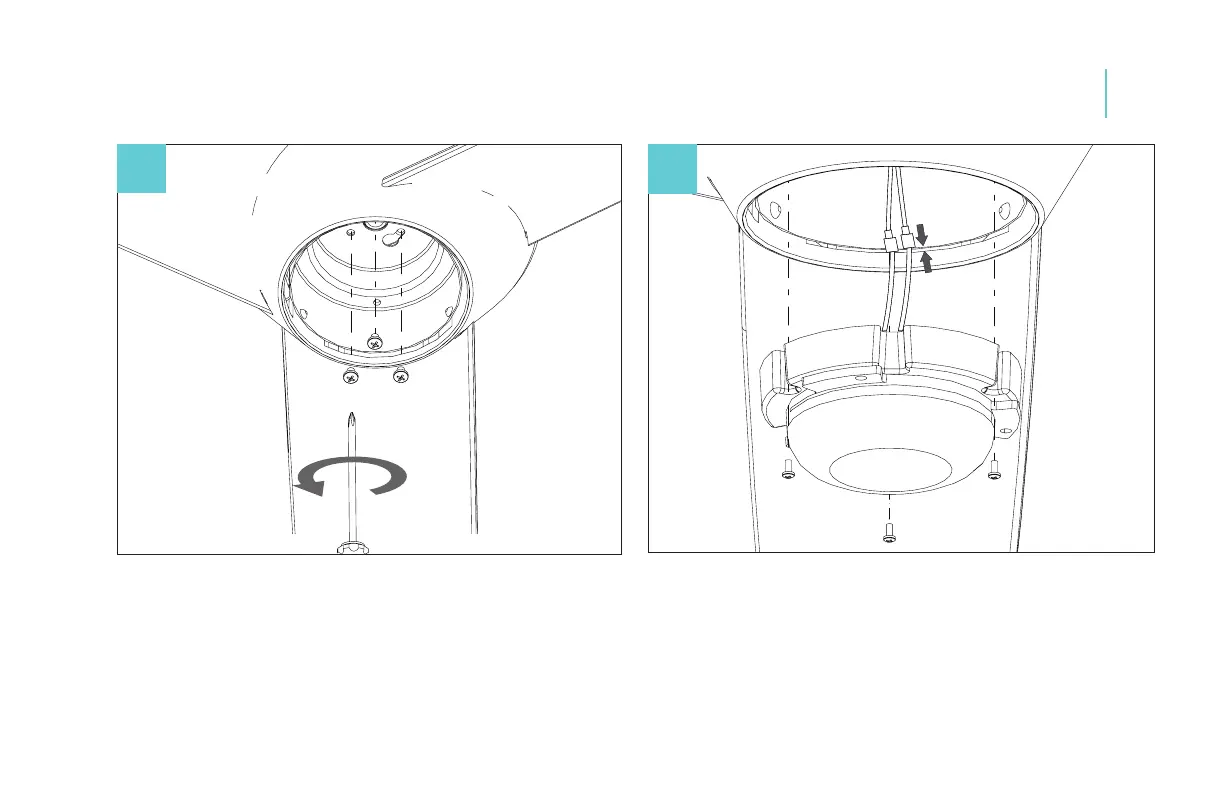

1. Attach LED wires from motor assembly to luminaire module.
2. Install glass shade without over-tightening.
1. Remove 1 of 3 screws and loosen the others (do not remove).
2. Using the screw from the previous step, install the adapter plate.
3. Secure the luminaire module.
