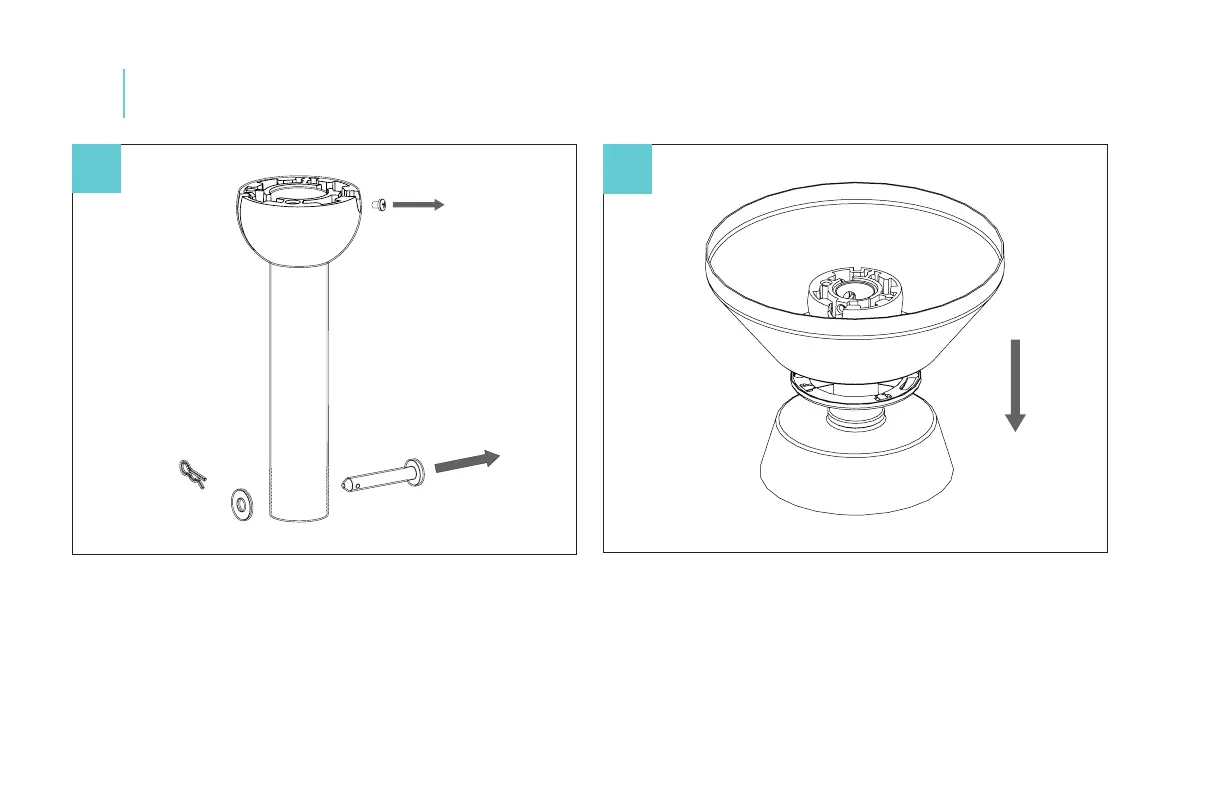

1. Remove screw from hanger ball. Remove hanger ball and cross pin.
2. Loosen 2 screws, clevis pin and cotter pin.
1. Install coupling cover, canopy screw ring, canopy and downrod
assembly into motor housing as shown.
2. Align downrod and motor collar holes, re-insert pins and screws.
3. Slip up canopy and canopy screw cover. Re-install hanger ball
with cross pin in correct place.
07
Hanging the Fan
