Modern Forms Slim - 08 Making the Electrical Connections

13FR-W2003
7
WHITE (NEUTRAL)
OUTLET BOX
BLACK (HOT)
BLACK (“AC IN L”)
RED (TO MOTOR)
GRAY (TO MOTOR)
YELLOW (TO MOTOR)
YELLOW (MOTOR)
GRAY (MOTOR)
RED (MOTOR)
RECEIVER
GREEN (GROUND)
TO HANGER BALL
GREEN (GROUND)
TO HANGER BRACKET
GREEN (GROUND)
WHITE (FOR LIGHT)
WHITE (FOR LIGHT)
BLUE (FOR LIGHT)
BLACK (FOR LIGHT)
WHITE (“AC IN N”)
GREEN (GROUND)
8

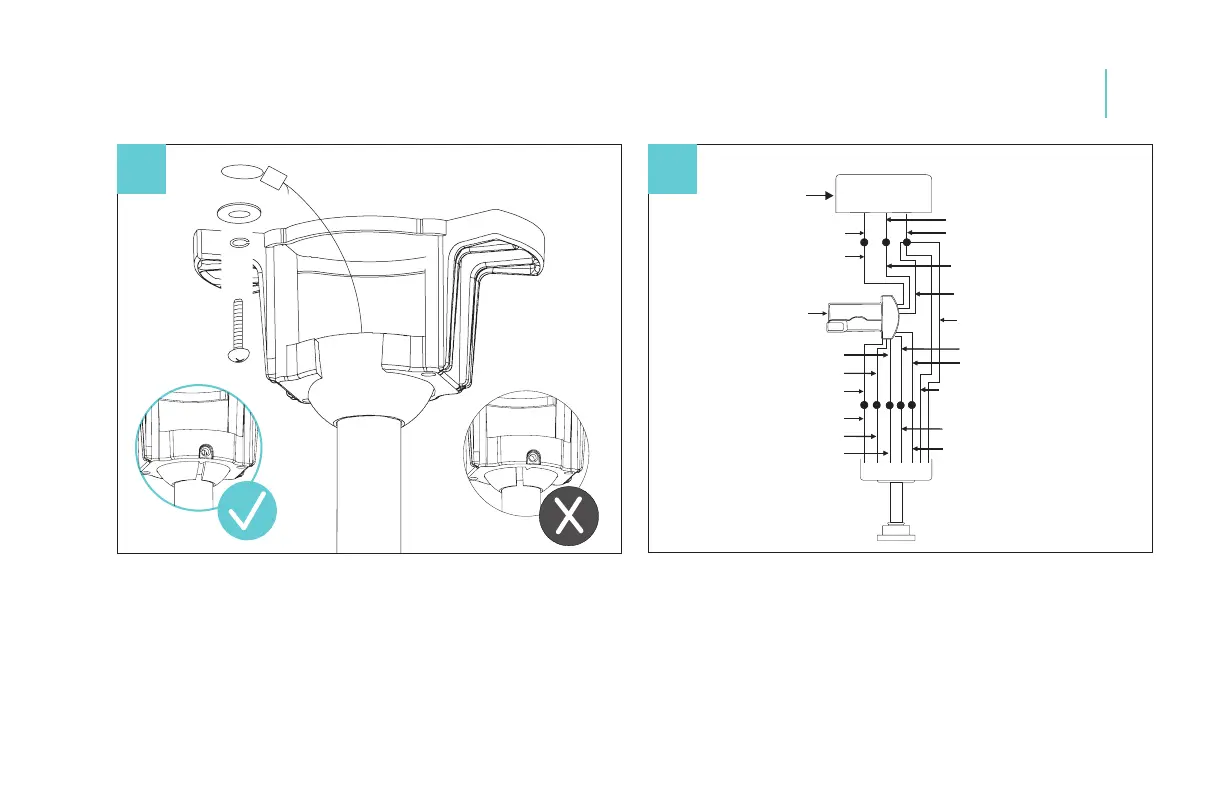

Making the Electrical Connections
08
1. Seat all into the mounting bracket. Rotate until ball drops and
locks into hanger bracket screw.
2. Secure safety cable to structure.
Hanging the Fan
1. Connect the wires from fan to the corresponding wires on
the receiver.
2. Connect the wires from the outlet box to the corresponding
wires on the receiver.
NOTE: Follow wiring diagram found on the receiver hardware.
