Modern Pantograph - Mounting; Unmounting Studio Light on Pantograph

ProperOrientation ImproperOrientation

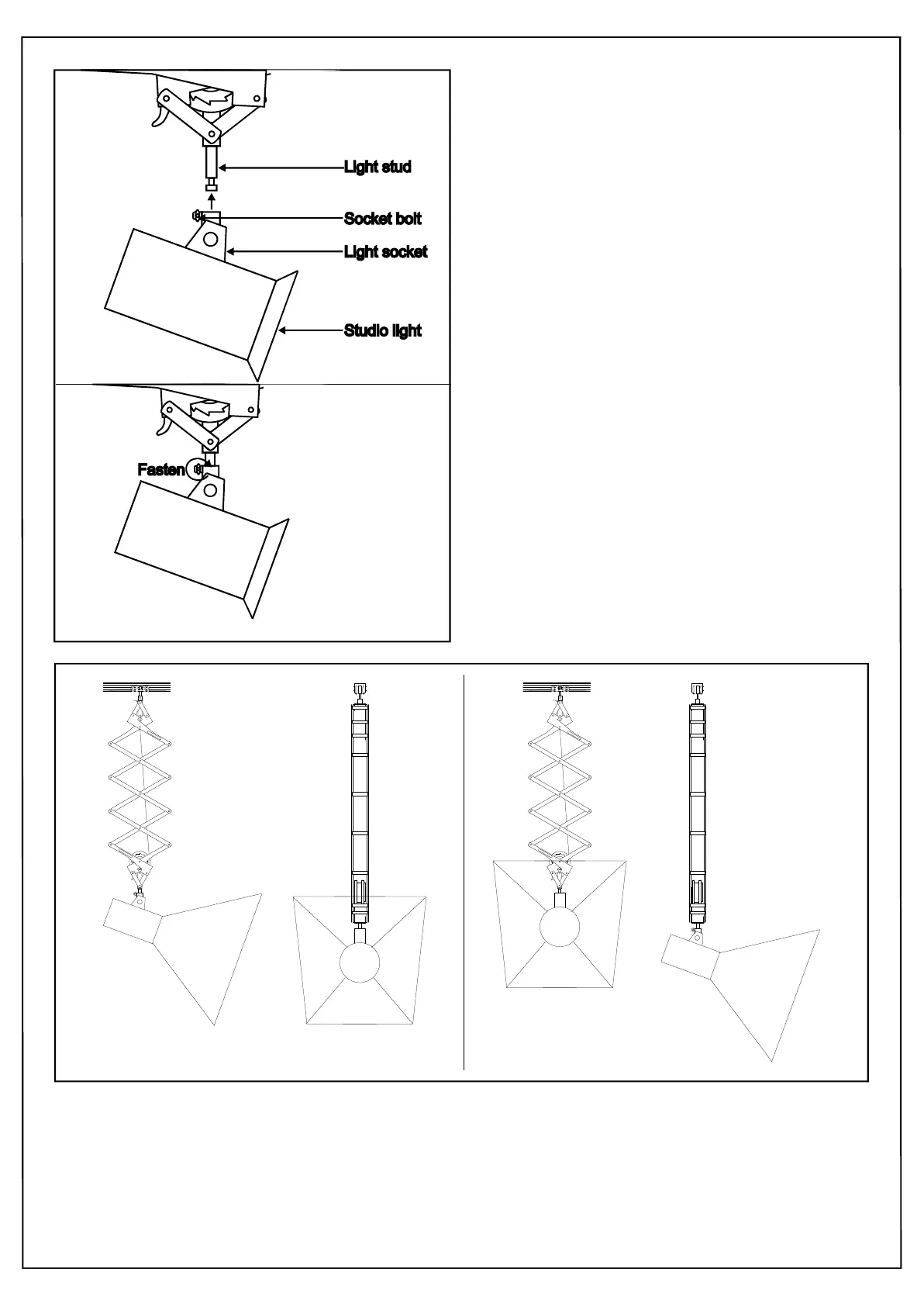

Mounting/unmountingstudiolighton
pantograph
-Standardstudiolightmanufacturerprovidesa
socket(calledlightmountingsocket)attachedto
thebodyoflightwhichhelpstoattachthelight
withstands,pantographs,clampsandother
studio/outdooraccessories.
-Thissockethasastandardsizehole(5/8inches
or19mm)
-Modernpantographisprovidedwiththis(i.e.5/8
inchesor19mm)standardsizelightstudatits
lowermostendtohelpmountthestudiolightsonit
asshownintheadjoiningdiagram.
-Asshownhere,oncethepantographismounted
ontheslidingtrack,takethestudiolightaninsert
thelightstudonpantographintosocketonstudio
light.
-Fastentheboltgivenonthelightsocketaround
thelightstudsothatwhenthepantographis
operated,thelightdosenotgetdetachedfrom
pantographandfallontheground.
-Tounmountthelight,loosetheboldonthelight
socketandpulldownthelight.Thelightwillbe
free.
Lightorientationonpantograph
-Oncethelightismountedonthepantograph,theorientationoflightwithrespecttopantographbody
cageisveryimportantforsmoothfunctioningofthepantograph.
-Asshownintheabovediagram,rotatethelightalongthelightstudonpantographtohavethedesired
orientation.
