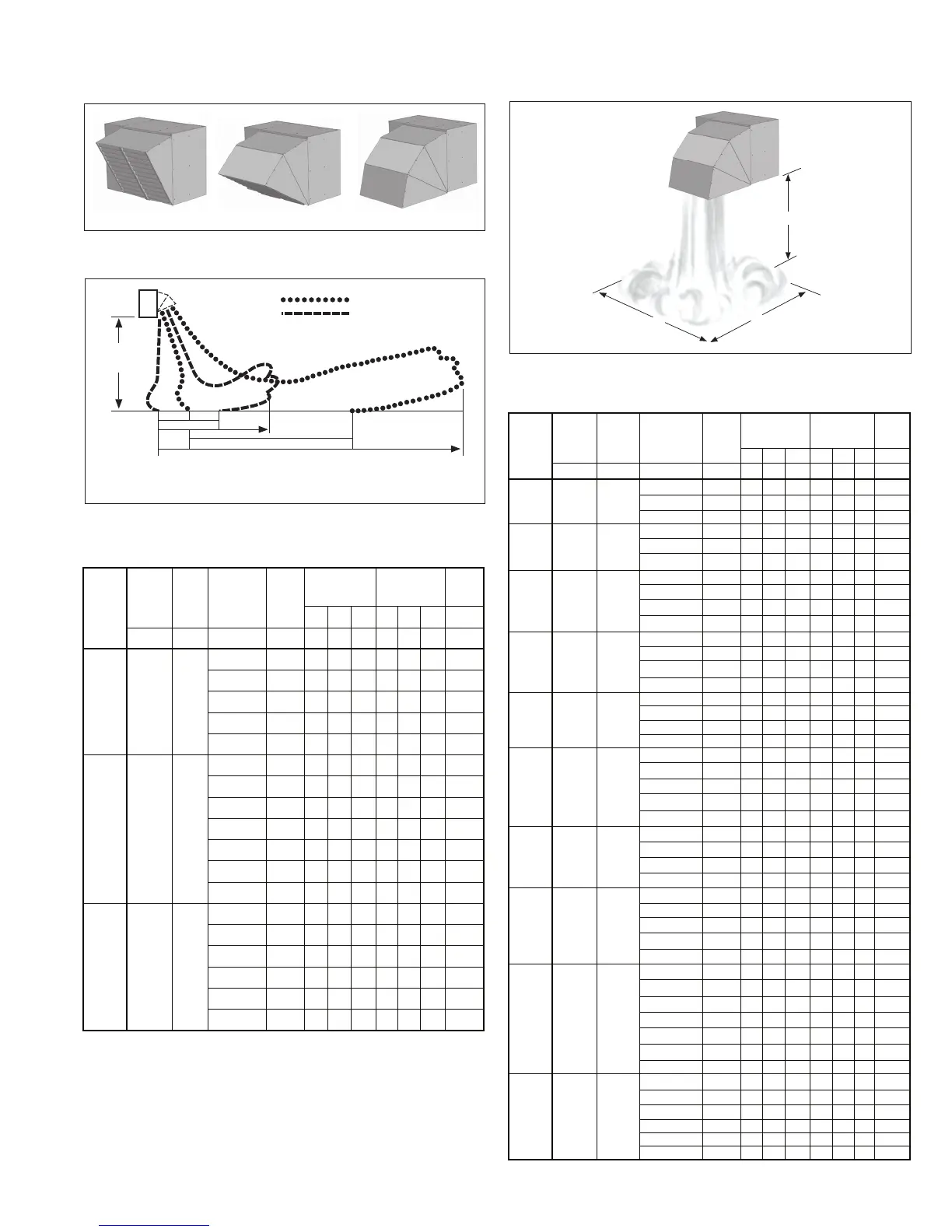

Figure 25.1 - 30°, 60°, & 90° Deflector Hoods
H
S
S
MOUNTING
HEIGHT
X
Y
Y
Z
Z
X
60 DOWNTURN
30 DOWNTURN
Note:
X = Feet from Heater to Start of Floor Coverage
Y = Feet to End of Floor Coverage
Z = Feet to End of Throw
60
30
30 DOWNTURN
60 DOWNTURN
Figure 25.2 - 30° & 60° Hood Throw/Floor Coverage
Figure 25.3 - 90° Hood Throw/Floor Coverage
30° HOOD 60° HOOD 90° HOOD
Table 25.2 - Deflector Hood General Performance
Data - Model PTC
Table 25.1 - Deflector Hood General Performance
Data - Model BTC
Note: Refer to Figures 25.2 and 25.3.
Note: Refer to Figures 25.2 and 25.3.
PERFORMANCE DATA - DEFLECTOR HOODS
Model
Size
Airflow
Temp
Rise
Mounting
Height
Blade
Angle
30° Hood 60° Hood
90°
Hood
X Y Z X Y Z S
(CFM) (°F) (ft) (°) (ft) (ft) (ft) (ft) (ft) (ft) (ft)
215 3366 55
8 59 14 31 42 27 32 44 22
10 50 13 29 40 36 30 41 20
12 40 11 27 37 40 27 37 18
14 27 9 24 33 35 22 31 17
15 17 7 21 30 28 18 25 16
260 4071 55
8 65 18 38 52 34 40 55 29
10 58 17 37 50 48 39 53 26
12 51 15 35 49 59 36 50 24
14 42 14 33 46 64 33 46 22
16 33 12 30 42 61 29 40 21
18 18 9 26 37 42 23 32 19
19 2 6 20 30 52 23 32 19
310 4854 55
8 64 17 37 51 33 39 54 28
10 57 16 36 49 47 37 51 21
12 50 15 34 47 56 35 48 16
14 41 13 32 44 61 32 44 13
16 30 11 29 41 56 27 38 11
18 14 8 23 33 30 20 28 9
Model
Size
Airflow
Temp
Rise
Mounting
Height
Blade
Angle
30° Hood 60° Hood
90°
Hood
X Y Z X Y Z S
(CFM) (°F) (ft) (°) (ft) (ft) (ft) (ft) (ft) (ft) (ft)
55 1097 43
8 55 12 27 37 0 28 39 19
10 44 11 25 35 0 26 35 17
12 31 9 23 32 0 22 30 15
65 1141 49
8 54 12 26 36 0 27 38 18
10 43 10 24 34 0 25 34 16
12 29 8 21 30 0 20 28 15
85 1650 44
8 59 14 30 41 0 32 43 17
10 49 12 29 39 0 29 40 16
12 39 11 26 37 0 26 36 14
13 32 10 25 35 0 24 33 14
110 1750 54
8 57 13 29 39 0 30 41 16
10 47 11 27 37 0 28 38 15
12 35 10 25 34 0 24 33 13
13 28 9 23 32 0 22 30 13
135 2160 53
8 60 15 32 44 0 34 47 24
10 52 13 31 42 0 32 44 21
12 42 12 29 40 0 29 40 19
14 30 10 26 36 0 25 34 18
156 2600 51
8 60 19 41 56 0 43 60 26
10 51 18 40 55 0 42 57 23
12 41 17 38 53 0 40 55 21
14 29 15 37 51 0 37 51 20
16 8 14 34 48 0 34 47 18
180 3020 51
8 63 16 35 48 0 37 51 26
10 55 15 34 46 0 35 48 23
12 46 13 32 44 0 32 45 21
14 36 12 29 41 0 29 40 20
215 3865 48
8 66 19 41 56 0 43 59 32
10 60 18 40 54 0 42 57 29
12 53 17 38 53 0 40 54 26
14 46 15 36 50 0 37 51 24
16 37 14 34 47 0 33 46 23
260 4585 49
8 69 22 45 62 0 48 66 37
10 63 21 44 61 0 47 64 33
12 57 19 43 59 0 45 62 30
14 51 18 42 57 0 43 59 28
16 44 17 40 55 0 40 55 26
18 35 15 37 52 0 36 50 25
20 25 13 33 47 0 31 43 24
310 5400 49
8 68 20 43 58 0 45 62 34
10 61 19 42 57 0 44 60 31
12 55 18 40 55 0 42 58 28
14 48 17 39 53 0 40 54 26
16 40 15 37 51 0 36 50 24
18 31 13 34 47 0 32 44 23
