Modine Manufacturing PTC - DIMENSIONAL DATA - MODEL PTC

26
6-563.7
DIMENSIONAL DATA - MODEL PTC
Table 26.1 - Dimensions (inches) - PTC ➀

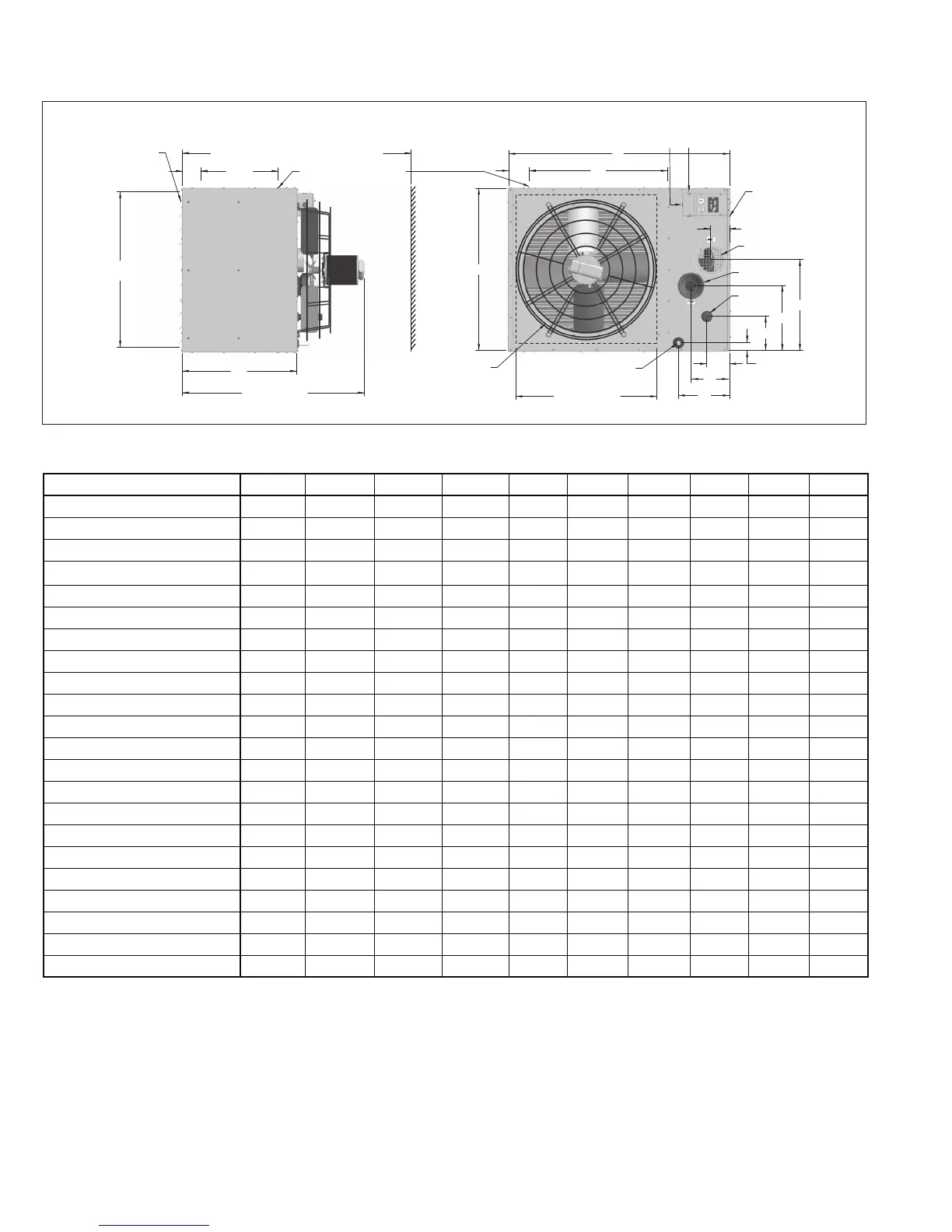

Figure 26.1 - Dimensional Drawings - Model PTC
ADJUSTABLE
LOUVERS
(4) 3/8"-16 MTG HOLES
CONDENSATE DRAIN
3/4" PVC
GAS
CONN.
COMBUSTION
AIR INLET
VENT
OUTLET
FAN
KNOCKOUTS FOR
SUPPLY POWER WIRING
CONDUIT ENTRANCE
ACCESS
PANEL
B
C
R (APPROX.)
D (OPENING)
E
(OPENING)
I
J
K
L
H
F
G
M
A
Q (MINIMUM DISTANCE TO WALL)
3.56 14.90
N P
Models PTC 55 PTC 65 PTC 85 PTC110 PTC135 PTC156 PTC180 PTC 215 PTC260 PTC310
A 29.80 29.80 35.53 35.53 35.53 35.53 42.53 42.53 42.53 42.53
B 18.13 18.13 20.31 20.31 23.06 23.06 25.81 31.31 31.31 39.56
C 19.03 19.03 22.05 22.05 22.05 22.05 22.05 22.05 22.05 22.05
D 17.00 17.00 22.52 22.52 22.52 22.52 29.52 29.52 29.52 29.52
E 16.24 16.24 18.42 18.42 21.18 21.18 23.93 29.43 29.43 37.68
F 4.71 4.71 4.50 4.50 4.50 4.50 4.50 4.50 4.50 4.50
G 7.19 7.19 7.98 7.98 7.98 7.98 7.98 7.47 7.47 8.12
H 10.22 10.22 10.27 10.27 10.18 10.18 10.36 9.86 9.86 9.79
I 3.10 3.10 1.32 1.32 2.15 2.15 1.73 1.63 1.63 1.88
J 12.81 12.81 6.73 6.73 8.09 8.09 9.47 6.72 6.72 10.84
K 6.00 6.00 8.74 8.74 8.45 8.45 9.82 12.58 12.58 16.19
L 9.07 9.07 12.13 12.13 12.95 13.45 14.92 17.58 17.58 22.19
M 3.30 3.30 3.86 3.86 3.48 3.98 3.98 3.72 3.72 4.62
N 1.90 1.90 1.54 1.54 1.54 1.54 3.97 3.97 3.97 3.97
P 16.00 16.00 22.03 22.03 22.03 22.03 26.60 26.60 26.60 26.60
Q ➁ 40.19 40.19 45.83 45.83 45.83 45.83 45.83 45.83 46.83 46.83
R 28.19 28.19 33.83 33.83 33.83 33.83 33.83 33.83 34.83 34.83
Combustion Air Inlet Pipe 3 3 3 3 3 4 4 4 4 6
Vent Outlet Pipe 3 3 3 3 3 4 4 4 4 4
Gas Connection 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4 3/4 3/4
Fan Diameter 14 14 18 18 20 20 22 24 24 26
Approx. Shipping Weight (lbs.) 93 103 125 128 165 165 215 265 265 310
➀ Do not use propeller units with duct work.
➁ Dimension equals overall plus 12".
