Modine Manufacturing PTC - DIMENSIONAL DATA - MODEL BTC

27
6-563.7
DIMENSIONAL DATA - MODEL BTC
Table 27.1 - Dimensions (inches) - BTC

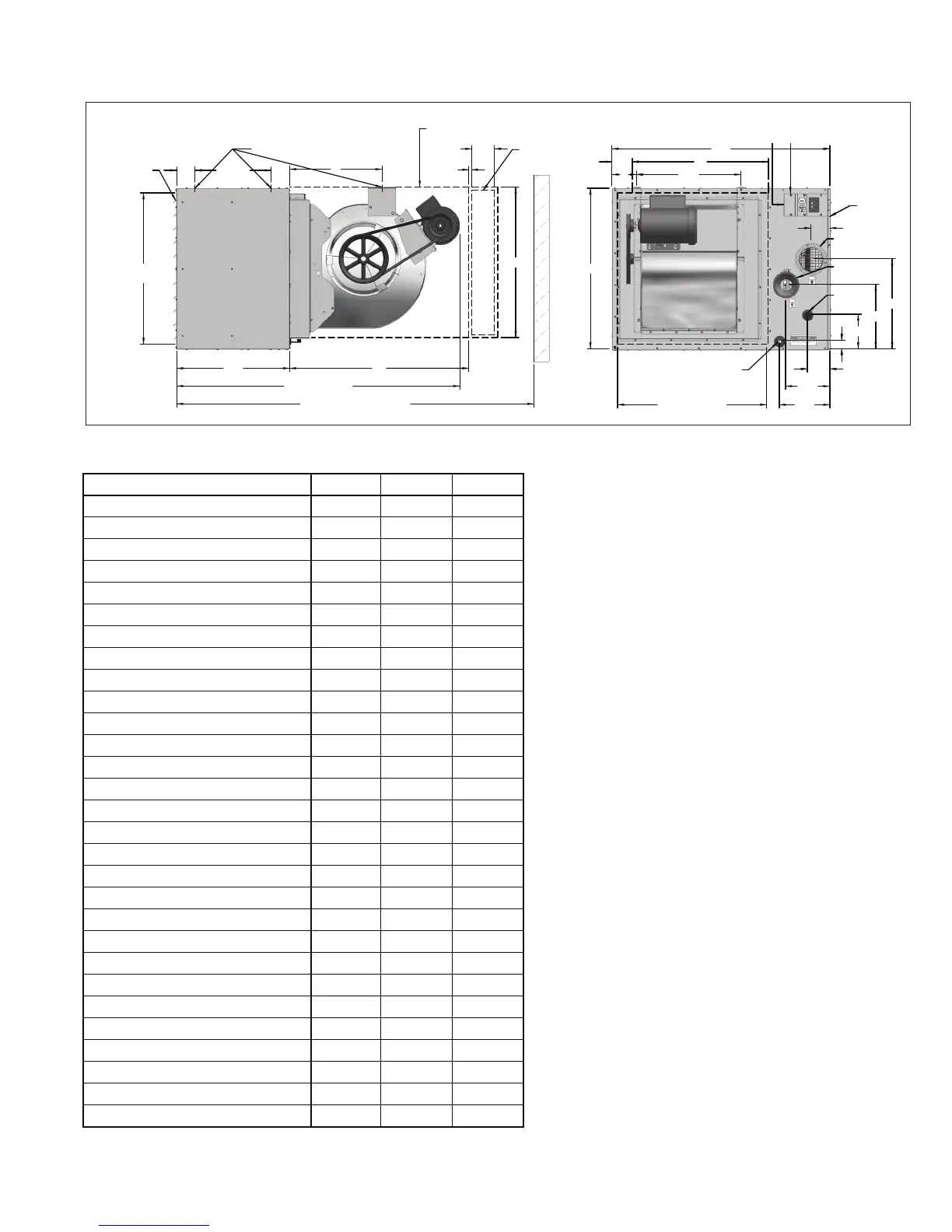

Figure 27.1 - Dimensional Drawings - Model BTC
ADJUSTABLE
LOUVERS
(6) 3/8"-16 MTG HOLES
BLOWER ENCLOSURE
(OPTIONAL)
14.903.56
(OPENING)
V
R (APPROX.)
T x U
Q (MIN DIST TO WALL)
C
E
4.88
7/8"
S
X
N P
W
KNOCKOUTS FOR
SUPPLY POWER WIRING
CONDUIT ENTRANCE
D (OPENING)
A
FILTER RACK
(OPTIONAL)
M
G
H
J
K
L
B
CONDENSATE DRAIN
3/4" PVC
GAS
CONN.
VENT
OUTLET
COMBUSTION
AIR INLET
ACCESS
PANEL
I
F
GAS
CONN.
VENT
OUTLET
COMBUSTION
AIR INLET
ACCESS
PANEL
I
F
➀ This is an approximate dimension for standard motors, allow 3" for sheave and
optional motors.
Models BTC 215 BTC260 BTC310
A 42.53 42.53 42.53
B 31.31 31.31 39.56
C 22.05 22.05 22.05
D 29.52 29.52 29.52
E 29.43 29.43 37.68
F 4.50 4.50 4.50
G 7.47 7.47 8.12
H 9.86 9.86 9.79
I 1.63 1.63 1.88
J 6.72 6.72 10.84
K 12.58 12.58 16.19
L 17.58 17.58 22.19
M 3.72 3.72 4.62
N 3.97 3.97 3.97
P 26.60 26.60 26.60
Q (w/Blower Encl & Filter Rack) 79.68 79.68 79.68
Q (w/o Blower Encl & Filter Rack) 70.88 70.88 70.88
R ➀ 58.88 58.88 58.88
S 39.88 39.88 39.88
T 28.57 28.57 28.57
U 28.28 28.28 28.28
V 18.00 18.00 18.00
W 5.45 5.45 6.45
X 20.59 20.59 21.59
Combustion Air Inlet Pipe 4 4 6
Vent Outlet Pipe 4 4 4
Gas Connection 3/4 3/4 3/4
Blower 15-15 15-15 15-15
Approx. Shipping Weight (lbs.) 340 350 395
