MoeBot S5 - Repairing the Boundary Wire

- 23 -
If the boundary wire gets cut or breaks for
any reason (indicated by solid red light on
charging station), you need to locate and
repair it. You will need to use one of the

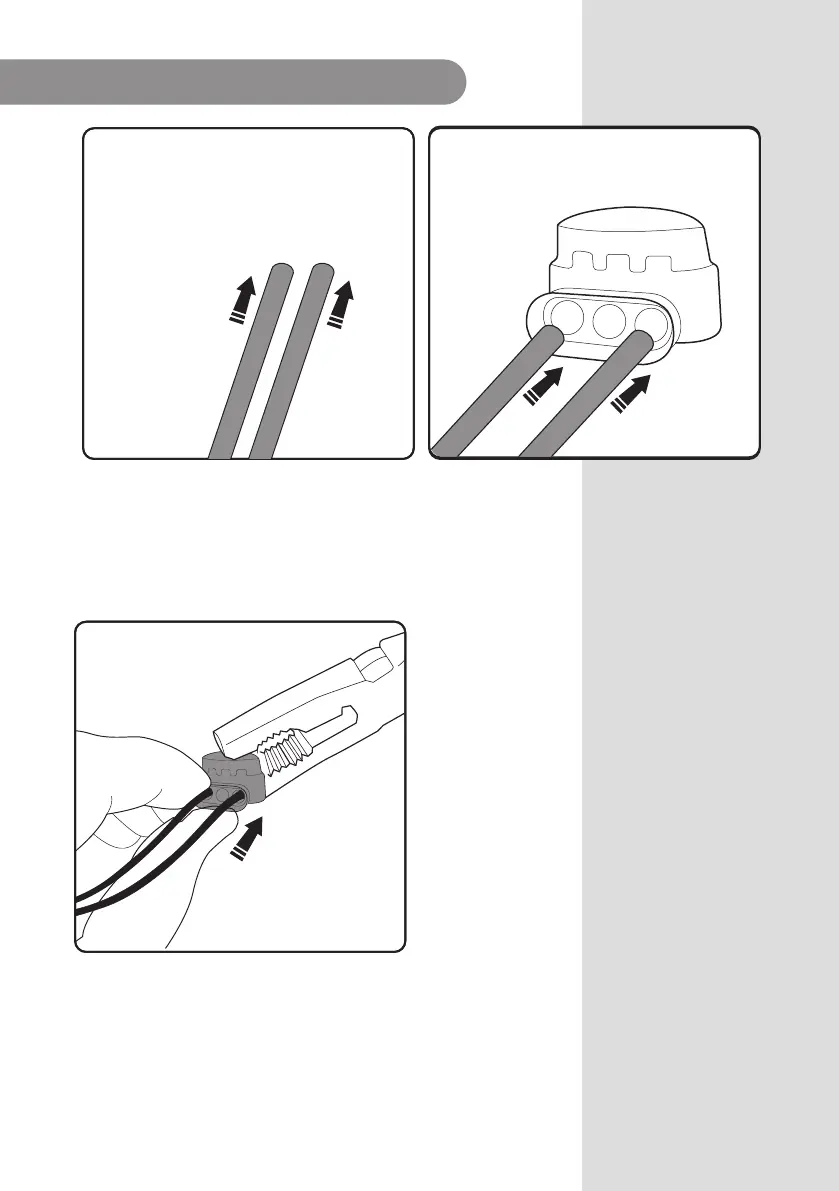

splicing clips provided. First take up the
slack in the wire so there is some overlap.
The clip has two channels in it. Push one
end into one channel and the other end
into the other. The wire needs to go right
in, and can even protrude from the other
end.
Taking a pair of pliers, crimp the metal tab
onto the inserted wires. This will form a
connection between the wires.
When the boundary wire is repaired the charging station will display a solid blue light. If the
light is still red there are more breaks in the loop, which will need locating and repairing.
Repairing the boundary wire
