Moes 002FB - Installation

10
Installation
Your thermostat is designed for installation within a standard 86 mm pattress box or
European 60 mm pattress box.

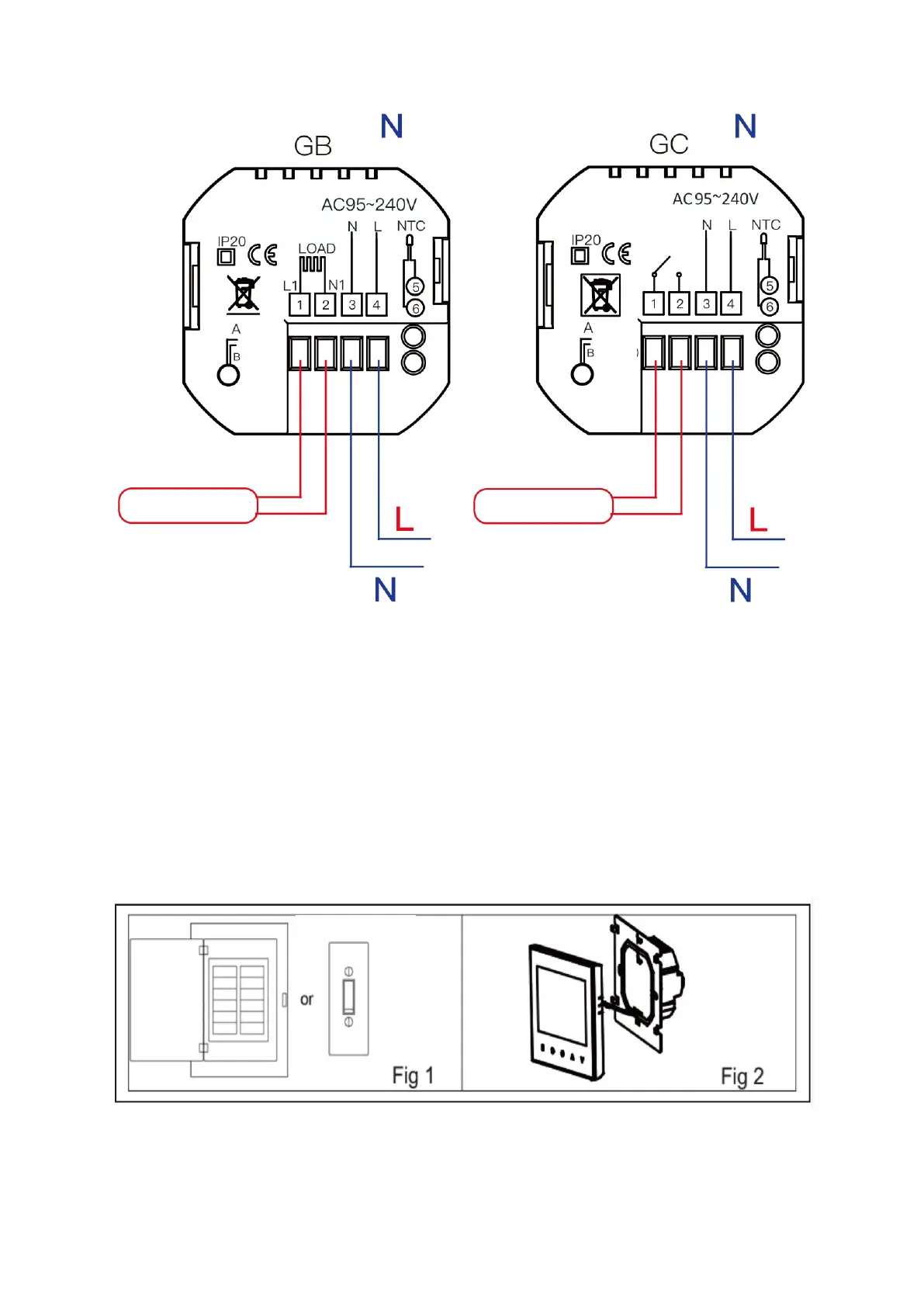

Step 1: Ensure power is switched off. Refer to Fig 1 for guidance.
Step 2: Slide the LCD assembly downward to detach the mounting plate. Consult Fig 2
for reference.
RED
RED
WHITE
WHITE
Modbus
Modbus
Electric Floor
Dry Contact
Dry Contact
Power off
Slide
