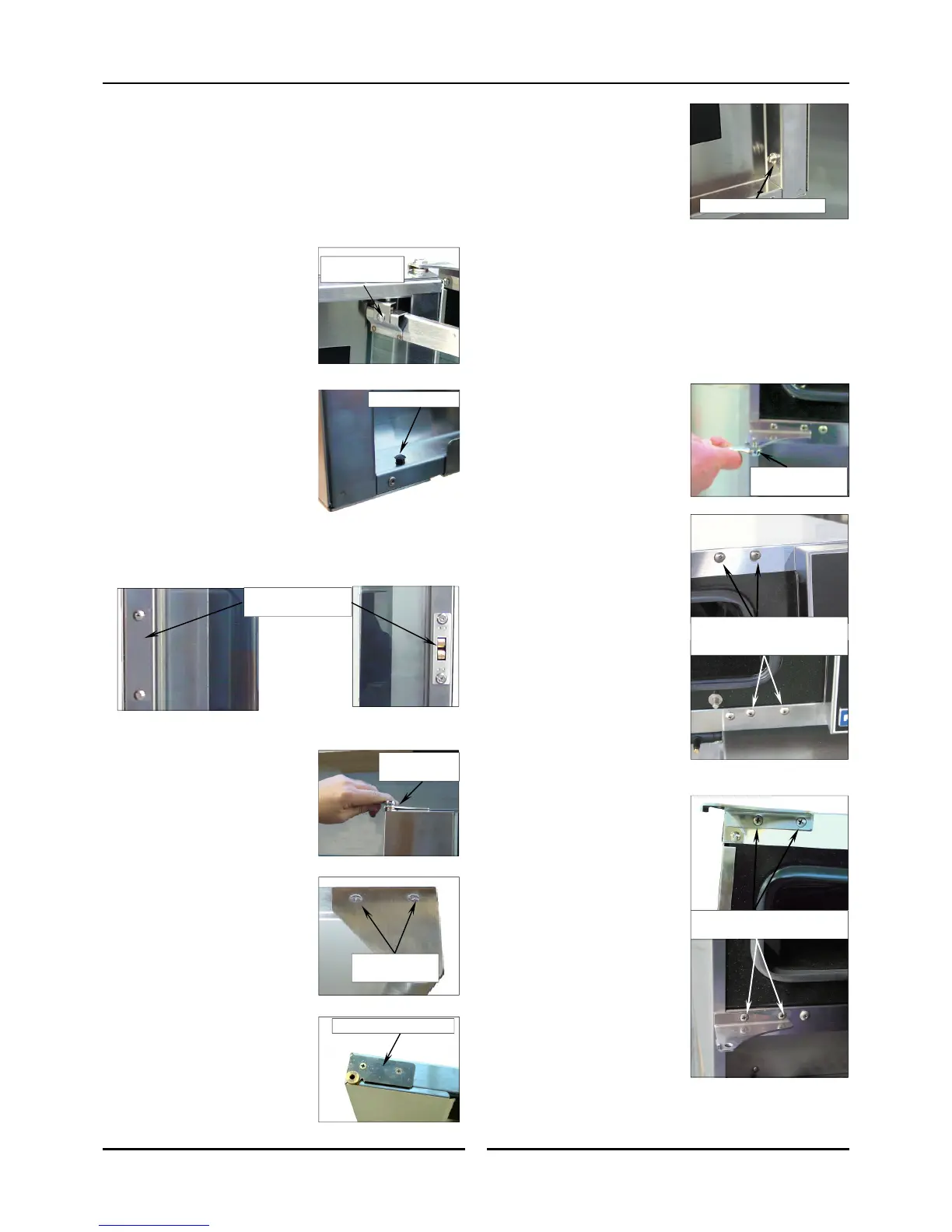

Appendix 1 - Oven Door Reversal
18
Remove Screw
and Retaining
Clip.
Reversing the Oven Door
• Refit all screw fasteners using a low-mid strength
thread locking adhesive unless otherwise stated.
• Door reversal should only be carried out by a
suitably competent person.
Remove the Oven Door Inner Glass.
1. Open the oven door and open
the door inner glass.
2. Remove screw securing inner
glass retaining clip and
remove clip.
3. Lift up inner glass and remove,
ensuring that pivot spacer is
removed from lower inner glass
pivot and retained.
4. Remove black plastic plugs
from top and bottom of door
and fit to holes where inner
glass pivots were removed
from.
Remove the Oven Door.
5. Remove the door roller catch and blanking plate from
the inside of the door and swap these over.
6. Whilst supporting door,
unscrew and remove top
door pivot bolt from top door
hinge assembly.
7. Remove door and lay on a
flat surface or workbench.
8. Unscrew screws securing the
door handle remove door
handle.
9. Remove top door hinge and
fit to bottom opposite corner
of door.
10. Remove bottom door hinge
and fit to top opposite corner
of door.
Fit Blanking Plugs.
Remove Top
Door Pivot Bolt.
Remove Top Door Hinge
Remove Handle
Securing Screws
Swap Roller Catch and
Blanking Plate over.
11. Remove inner glass latching
studs and fit to opposite side
of door using Loctite 243
to secure.
12. Turn door handle over and fit
to other end of door where
hinges were removed from.
Ensure Flat of handle is to
the outside.
Remove Upper and Lower Door Hinges and Door
Catch.
13. Remove bottom door pivot
bolt and spacers and fit pivot
bolt to top door hinge
assembly (as this will be
swapped over and fitted to
bottom of other side of
oven).
14. Remove the 4 blanking
screws from front of oven.
15. Remove Hinge Plate from
top of oven and fit
diagonally opposite, to lower
corner.
16. Remove Hinge Plate from
bottom of oven and fit
diagonally opposite, to
upper corner.
17. Fit screws removed at Item
14 above to where hinges
were fitted.
Remove these screws to remove
top and bottom hinges.
Bottom Door Pivot
Bolt and Spacers.
Remove screws top and bottom
and fit to where hinges removed
from.
Remove Latching Studs
