EZ Repair Instructions
Damaged Carrier Locking Pin Assembly
If additional help is needed, please call MoJack Customer Service: 1-877-575-3173.
© MoJack July 2012 Rev. 2

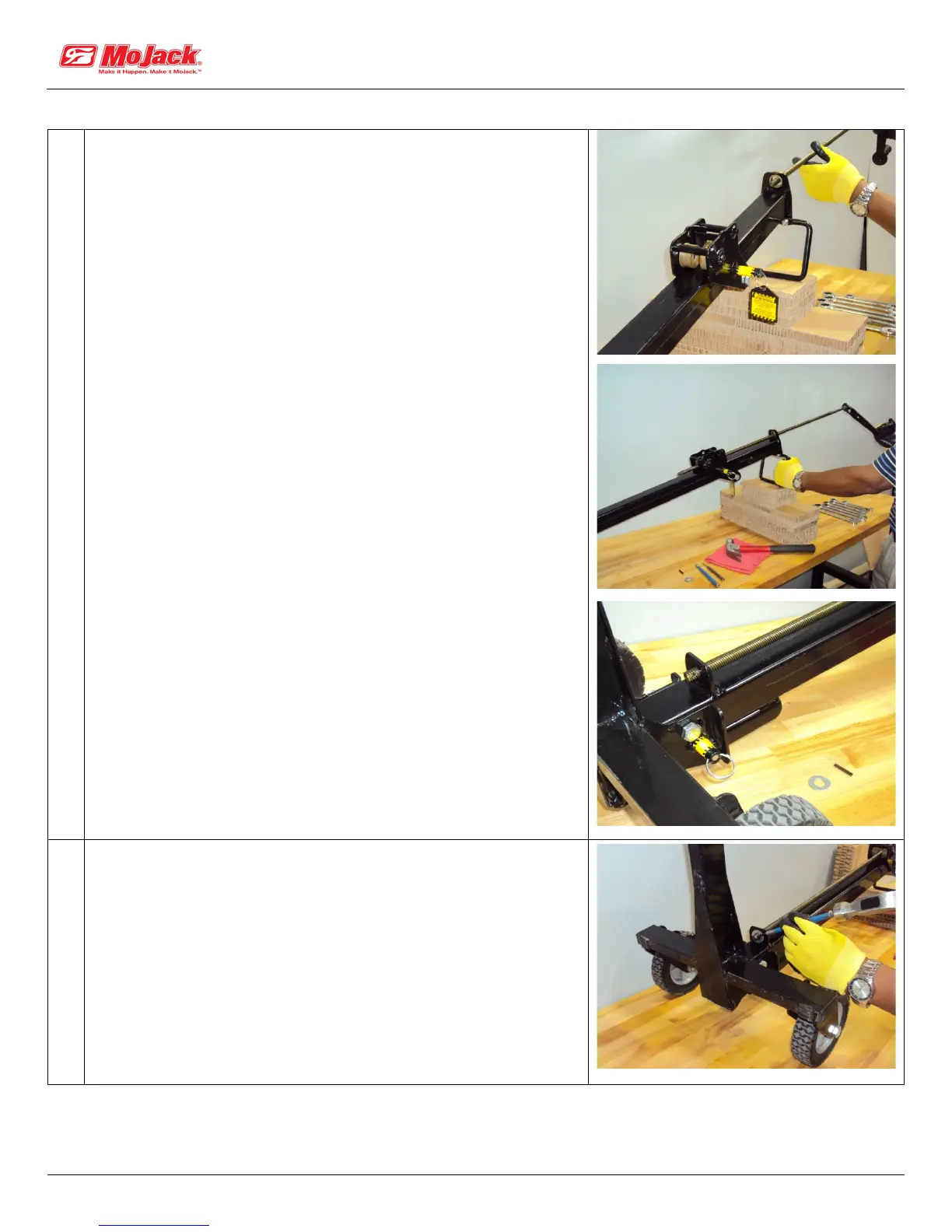

9)
• Thread the Lift Screw down from the top into the new Bronze
Nut by rotating the Crank Handle clockwise.
• The two Front Carriage Rollers should be on the left and
right of the Lift Screw as it passes below the Bronze Nut.
• Continue rotating until the Lift Screw goes through the
welded tab at the bottom of the Tower.
10)
Apply new Flat Washer on Lift Screw and hammer the new Roll
Pin (bevel end first) into the hole using a large punch.
