MoJack EZ - Assembly Steps; Hardware and Initial Assembly; Handle and Arm Installation

MoJack EZ Lift MoJack EZ Lift
6 7

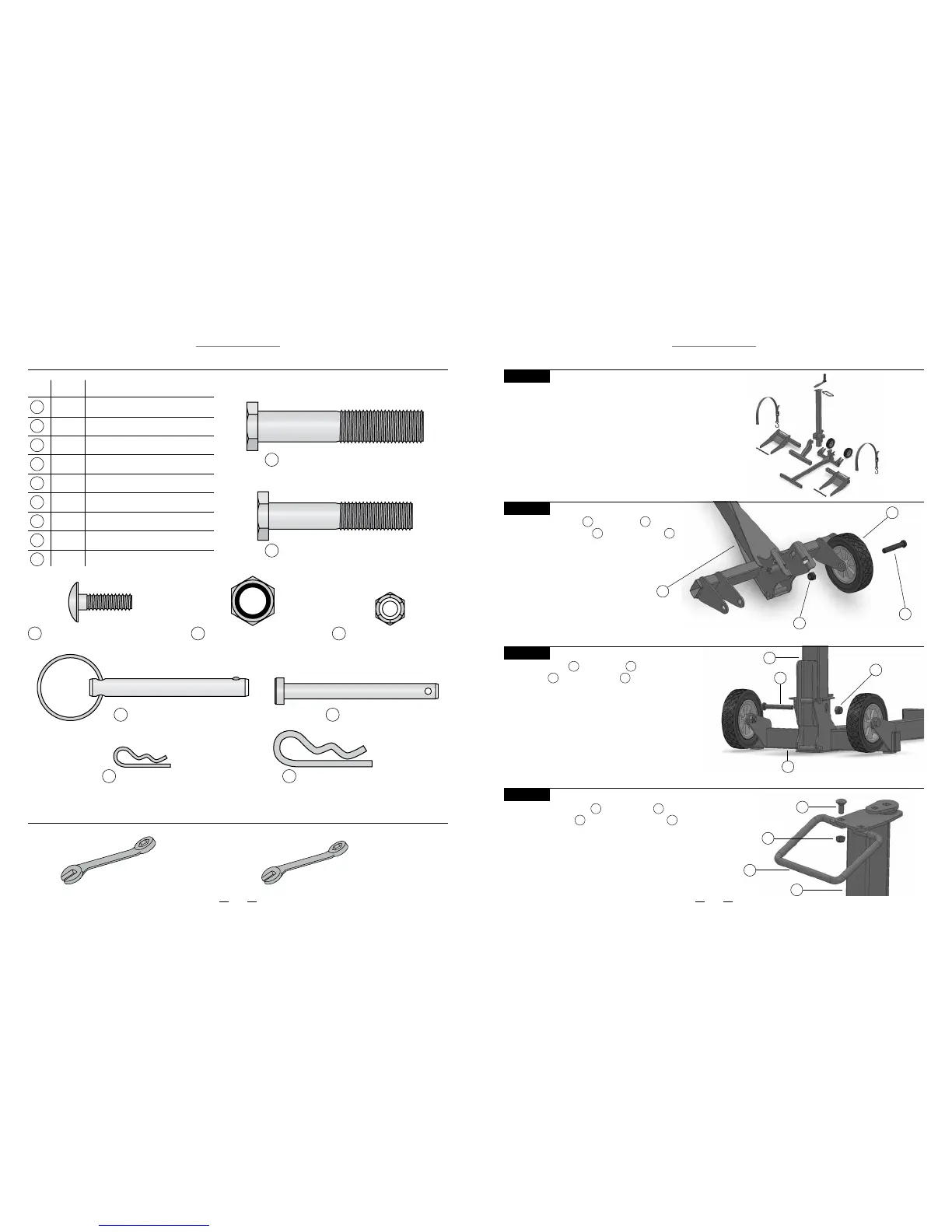

Hardware List
11
Item
No. Qty. Description
Cap Screw M12-1.75 X 80
Cap Screw M12-1.75 X 65
Carriage Bolt M8-1.25 X 20
Nylock Nut – M12-1.75
Nylock Nut – M8-1.25
Push Pin
Clevis Pin
Small Hair Pin
Large Hair Pin
1
2
3
3
3
2
1
1
2
19
12
13
14
15
16
17
18
Tools Needed for Assembly
19mm Wrench (2) 13mm Wrench (1)
14
Nylock Nut – M12-1.75
15
Nylock Nut – M8-1.25
18
Small Hair Pin
19
Large Hair Pin
11
Cap Screw M12-1.75 X 80
13
Carriage Bolt M8-1.25 X 20
12
Cap Screw M12-1.75 X 65
16
Push Pin
17
Clevis Pin
Assembly Instructions
STEP 1
Remove MoJack EZ from package.
Inventory items to be certain all parts and hardware
are present. If any parts or hardware are missing,
please contact MoJack at 1-877-575-3173 or
email us at parts@themojack.com.
STEP 2
Assemble the Wheel to the Base
by inserting Cap Screw and Nylock Nut
and tighten. Repeat with second Wheel.
Note: Do not over tighten Nylock Nut.
Base
3
Wheel
4
Nylock Nut
14
Cap Screw
12
Attach the Tower to the Base using
Cap Screw and Nylock Nut as shown.
Note: Do not over tighten Nylock Nut.
STEP 3
Nylock Nut
14
Cap Screw
11
Base
3
Tower
1
4 3
12 14
1 3
11 14
Tower
1
Attach the Grip Handle to the Tower with
two Carriage Bolts and two Nylock Nuts .
STEP 4
Carriage Bolt
13
Grip Handle
7
Nylock Nut
15
7 1
13 15
