PARAMETER
Input Voltage
Input Current
Operating Voltage
Operating Current
Standard Controls
Standard Indicators
External Connections
Dimensions
Weight
C-99A-12 C-99A-24
120 Vac, 60 Hz 120 Vac, 60 Hz
1.5
A
maximum 1.5
A
maximum
12 Vdc
24 Vdc
150
mA
nominal 100
mA
nominal
6
A
maximum 6
A
maximum

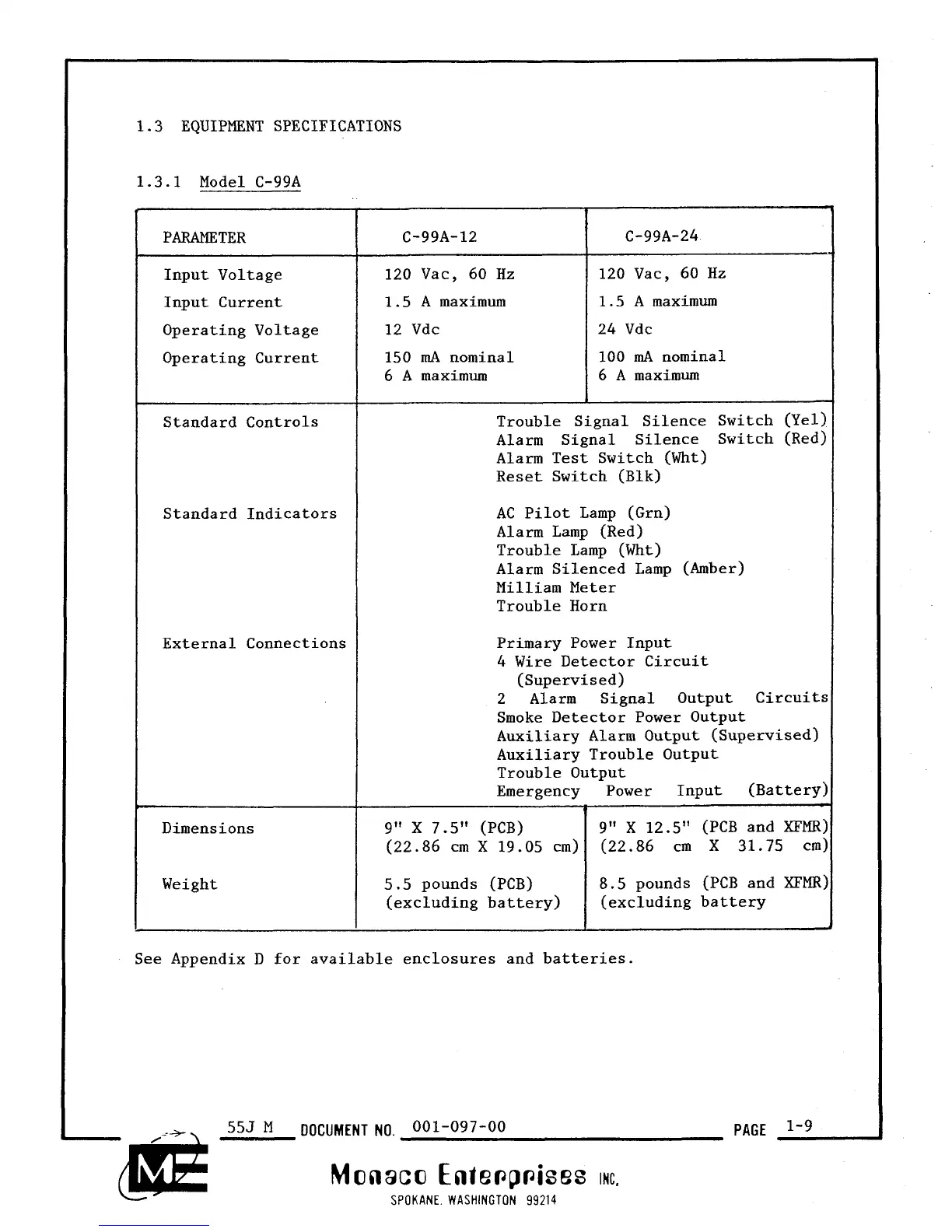

1.3 EQUIPMENT SPECIFICATIONS
1.3.1 Model C-99A
C
-
-
C
-
See Appendix
D
for available enclosures and batteries.
555
M
DOCUMENT NO.
001-097-00
Monaco Ente~p~ises
rc.
SPOKANE WASHINGTON
99214
Trouble Signal Silence Switch (Yel)
Alarm Signal Silence Switch (Red)
Alarm Test Switch (Wht)
Reset Switch (Blk)
AC
Pilot Lamp (Grn)
Alarm Lamp (Red)
Trouble Lamp (Wht)
Alarm Silenced Lamp
(Amber)
Milliam Meter
Trouble Horn
Primary Power Input
4 Wire Detector Circuit
(Supervised)
2 Alarm Signal Output Circuits
Smoke Detector Power Output
Auxiliary Alarm Output (Supervised)
Auxiliary Trouble Output
Trouble Output
Emergency Power Input (Battery)
9"
X
7.5" (PCB) 9"
X
12.5" (PCB and XFMR)
(22.86 cm
X
19 .05 cm) (22.86 cm
X
31.75 cm)
5.5 pounds (PCB) 8.5 pounds (PCB and XFMR)
(excluding battery)
(excluding battery
