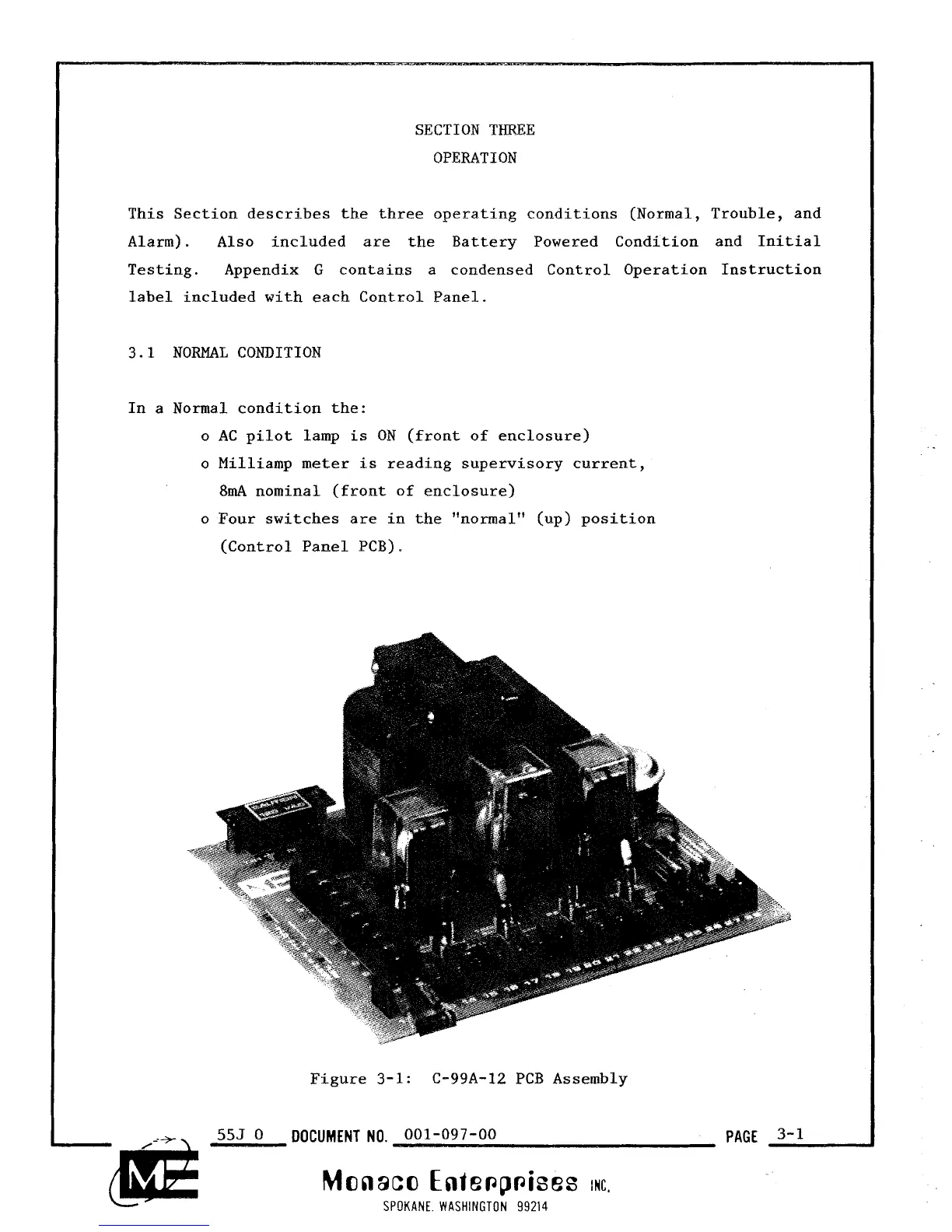

SECTION TmEE
OPEMTION
This Section describes the three operating conditions (Normal, Trouble, and
Alarm). Also included are the Battery Powered Condition and Initial
Testing. Appendix
G
contains a condensed Control Operation Instruction
label included with each Control Panel.
3.1
NORMAL CONDITION
In
a
Normal condition the:
o AC pilot lamp is ON (front of enclosure)
o Milliamp meter is reading supervisory current,
8mA
nominal (front of enclosure)
o Four switches are in the "normal" (up) position
(Control Panel PCB).
Figure
3-1:
C-99A-12 PCB Assembly
