2.6 CUSTOM CONFIGURATION
Building monitoring requirements may change from time to time requiring
additional equipment to an existing Control Panel configuration. These new
requirements are accommodated by adding to the existing system new options.
Consult either Monaco Field Service or Customer Service for all necessary
information.
2.7 ADDITIONAL EQUIPMENT
Supervising smoke detector power leads may be done with the aid of an
end-of-line power supervision relay module. Figure 2-1 shows the super-
visory scheme. The miscellaneous part Tables in Section
5
contain ordering
information for this module.
L
Single Loop Panel Functional Diagram
I
Double Loop Panel Functional Diagram

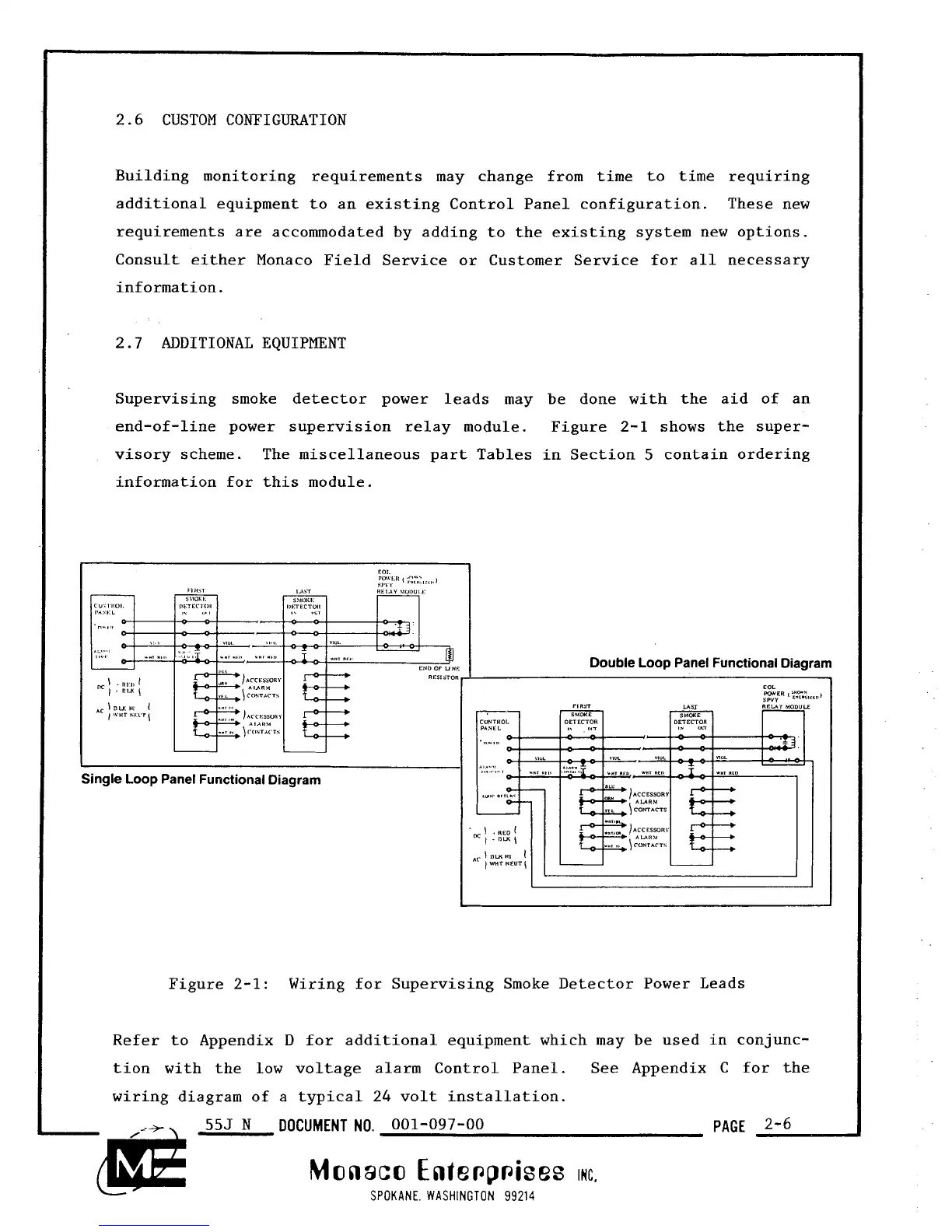

Figure 2-1: Wiring for Supervising Smoke Detector Power Leads
Refer to Appendix
D
for additional equipment which may be used in conjunc-
tion with the low voltage alarm Control Panel. See Appendix C for the
wiring diagram of a typical 24 volt installation.
