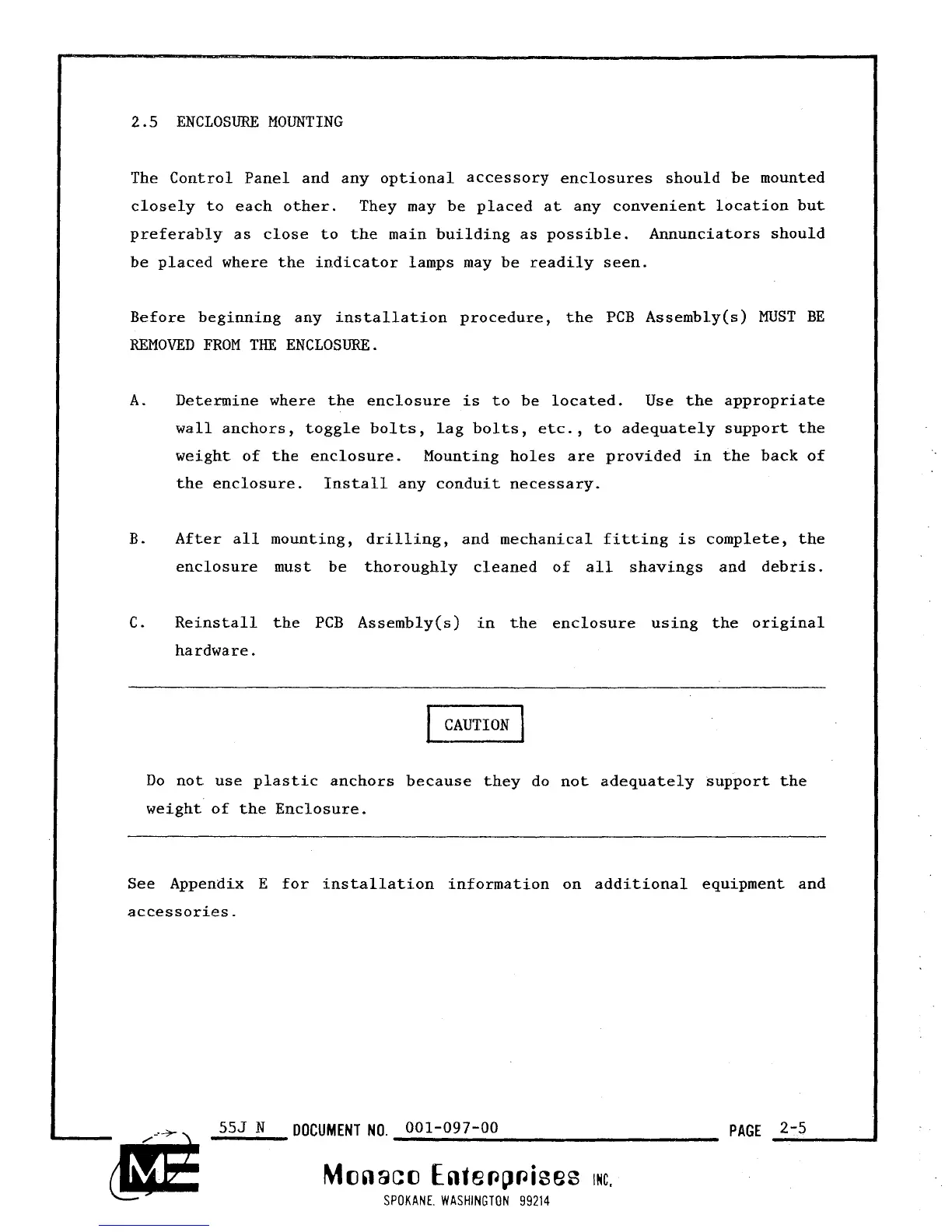

2.5
ENCLOSURE MOUNTING
The Control Panel and any optional accessory enclosures should be mounted
closely to each other. They may be placed at any convenient location but
preferably as close to the main building as possible. Annunciators should
be placed where the indicator lamps may be readily seen.
Before beginning any installation procedure, the PCB
Assembly(s)
MUST
BE
REMOVED
FROM
THE
ENCLOSURE.
A.
Determine where the enclosure is to be located. Use the appropriate
wall anchors, toggle bolts, lag bolts, etc., to adequately support the
weight of the enclosure. Mounting holes are provided in the back
of
the enclosure. Install any conduit necessary.
B.
After all mounting, drilling, and mechanical fitting is complete, the
enclosure must be thoroughly cleaned of all shavings and debris.
C.
Reinstall the
PCB
Assembly(s) in the enclosure using the original
hardware.
Do not use plastic anchors because they do not adequately support the
weight of the Enclosure.
See Appendix
E
for installation information on additional equipment and
accessories.
555
N
DOCUMENT
NO.
001-097-00
PAGE
2-51
Monaco
Ente~p~ises
INC.
SPOKANE WASHINGTON
99214
