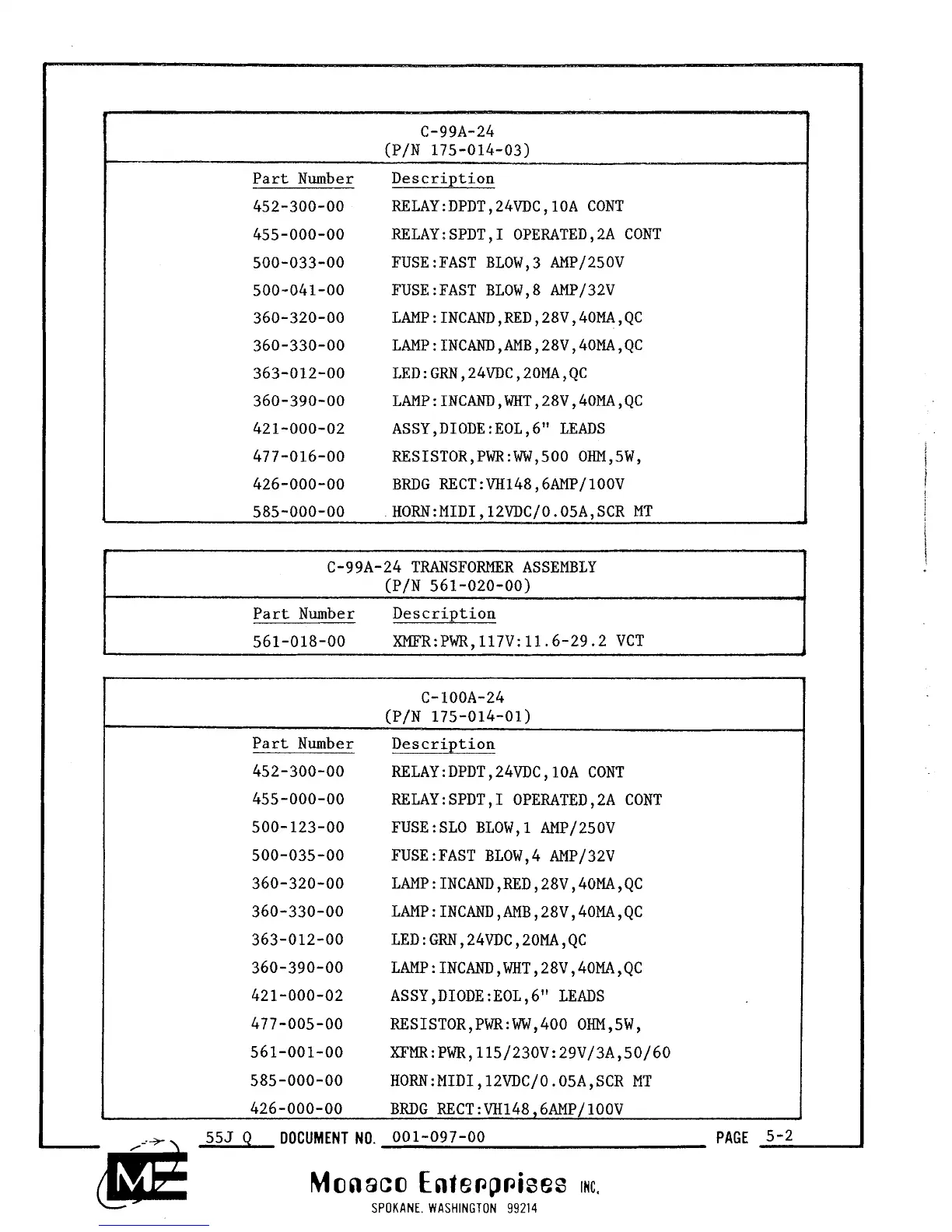

C-99A-24
(PIN 175-014-03)
PartNumber Description
452-300-00 RELAY:DPDT,24VDC,lOA CONT
455-000-00 RELAY:SPDT,I OPERATED,2A CONT
500-033-00 FUSE:FAST BLOW,3 AMP/250V
500-041-00 FUSE:FAST BLOW,8 AMP/32V
360-320-00
LAMP:INCAND,RED,28V,40MA,QC
360-330-00 LAMP:INCAND,AMB,28V,40MA,QC
363-012-00 LED:GRN,24VDC,20MA,QC
360-390-00
LAMP:INCAND,WHT,28V,40MA,QC
421-000-02 ASSY,DIODE:EOL,G" LEADS
477-016-00 RESISTOR,PWR:WW,500 OHM,5W,
426-000-00 BRDG RECT:VHl48,6AMP/lOOV
585-000-00
HORN:MIDI,12VDC/O.O5A,SCR MT
C-100A-24
(PIN 175-014-01)
Part Number Description
452-300-00 RELAY:DPDT,24VDC,lOA CONT
455-000-00 RELAY:SPDT,I OPERATED,ZA CONT
500-123-00 FUSE:SLO BLOW,l AMP/250V
500-035-00 FUSE:FAST BLOW,4 AMP/32V
360-320-00
LAMP:INCAND,RED,28V,40MA,QC
360-330-00 LAMP:INCAND,AMB,28V,40MA,QC
363-012-00 LED:GRN,24VDC,20MA,QC
360-390-00
LAMP:1NCAND,WHT,28V,40MA9QC
421-000-02
ASSY ,DIODE
: EOL ,6" LEADS
477-005-00 RESISTOR,PWR:WW,400 OHM,5W,
561-001-00
XFMR:PWR,115/230V:29V/3A,50/60
585-000-00 HORN:MID1,12VDC/O.O5A,SCR MT
426-000-00 BRDG RECT:VH148,6AMP/lOOV
- .-+- \
555 Q DOCUMENT NO. 001-097-00 PAGE 5-2
