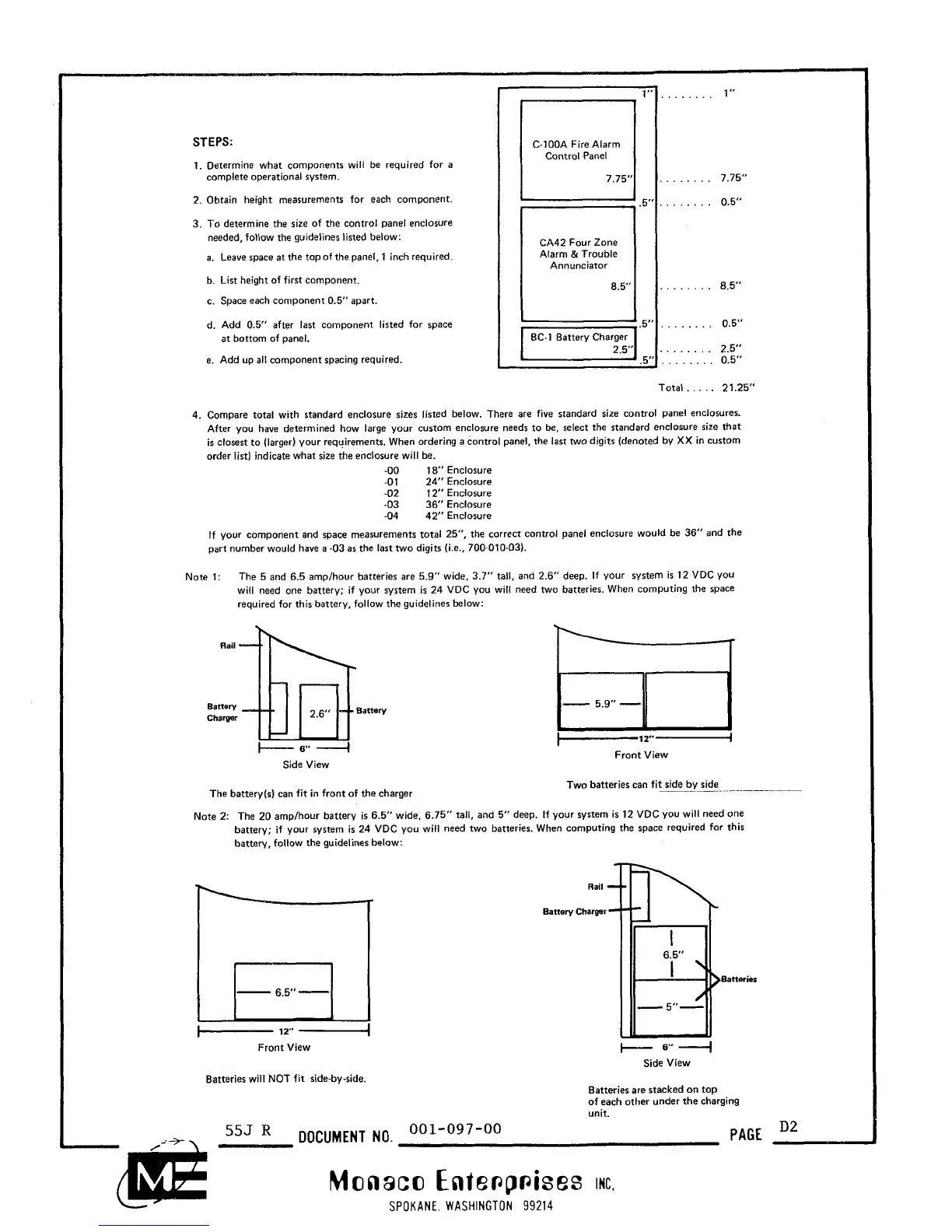

Monaco C-99A - Page 51

STEPS:
1. Determine what components will be required for a
complete operational system.
2. Obtain height measurements for each component.
3. To determine the size of the control panel enclosure
needed, follow the guidelines listed below:
a. Leave space at the topof the panel, 1 inch required.
b. List height of first component.
c. Space each component 0.5" apart.
d. Add 0.5 after last component listed for space
at bottom of panel.
e. Add up all component spacing required.
1 '
C-100A Fire Alarm
Control Panel
7.75"
.5'
CA42 Four Zone
Alarm
& Trouble
Annunciator
8.5
n 2.5"
Total . . . . . 21.25"
4. Compare total with standard enclosure sizes listed below. There are five standard size control panel enclosures.
After you have determined how large your custom enclosure needs to be, select the standard enclosure size that
is closest to (larger) your requirements. When ordering a control panel, the last two digits (denoted by
XX in custom
order list) indicate what size the enclosure will be.
-00 18" Enclosure
-01 24" Enclosure
-02 12" Enclosure
-03 36 Enclosure
-04
42" Enclosure
If your component and space measurements total 25". the correct control panel enclosure would be 36" and the
part number would have a -03 as the last two digits (i.e., 700-010-03).
Note
1:
The 5 and 6.5 amplhour batteries are 5.9" wide, 3.7" tall, and 2.6" deep. If your system is 12 VDC you
will need one battery; if your system is 24 VDC you will need two batteries. When computing the space
required for this battery, follow the guidelines below:
Rail
Batter,
- 5.9" -
Charwr B 1- 12" -
6" 4 Front View
Side View
Two batteries can fit side by side-
The battery(s) can fit in front of the charger
Note 2: The 20 amplhour battery is 6.5" wide, 6.75" tall, and 5" deep. If your system is
12 VDC you will need one
battery; if your system is 24 VDC you will need two batteries. When computing the space required for this
battery, follow the guidelines below:
Battery
Rail
Chargel
Front View + 6--i
Side View
Batteries will
NOT fit side-by-side.
Batteries are stacked on top
of each other under the charging
unit.
001-097-00 D2
- /
-.+- \ 55J DOCUMENT NO. PAGE
Monaco Ente~p~ises INC.
SPOKANE. WASHINGTON 99214
