KNOW-HOW: Example of Application
All rightsreserved by MONACOR
®
INTERNATIONAL GmbH & Co. KG.
Areproduction of this catalogue – or any parts thereof – for any commercialuseisprohibited.
PA Technology 2014

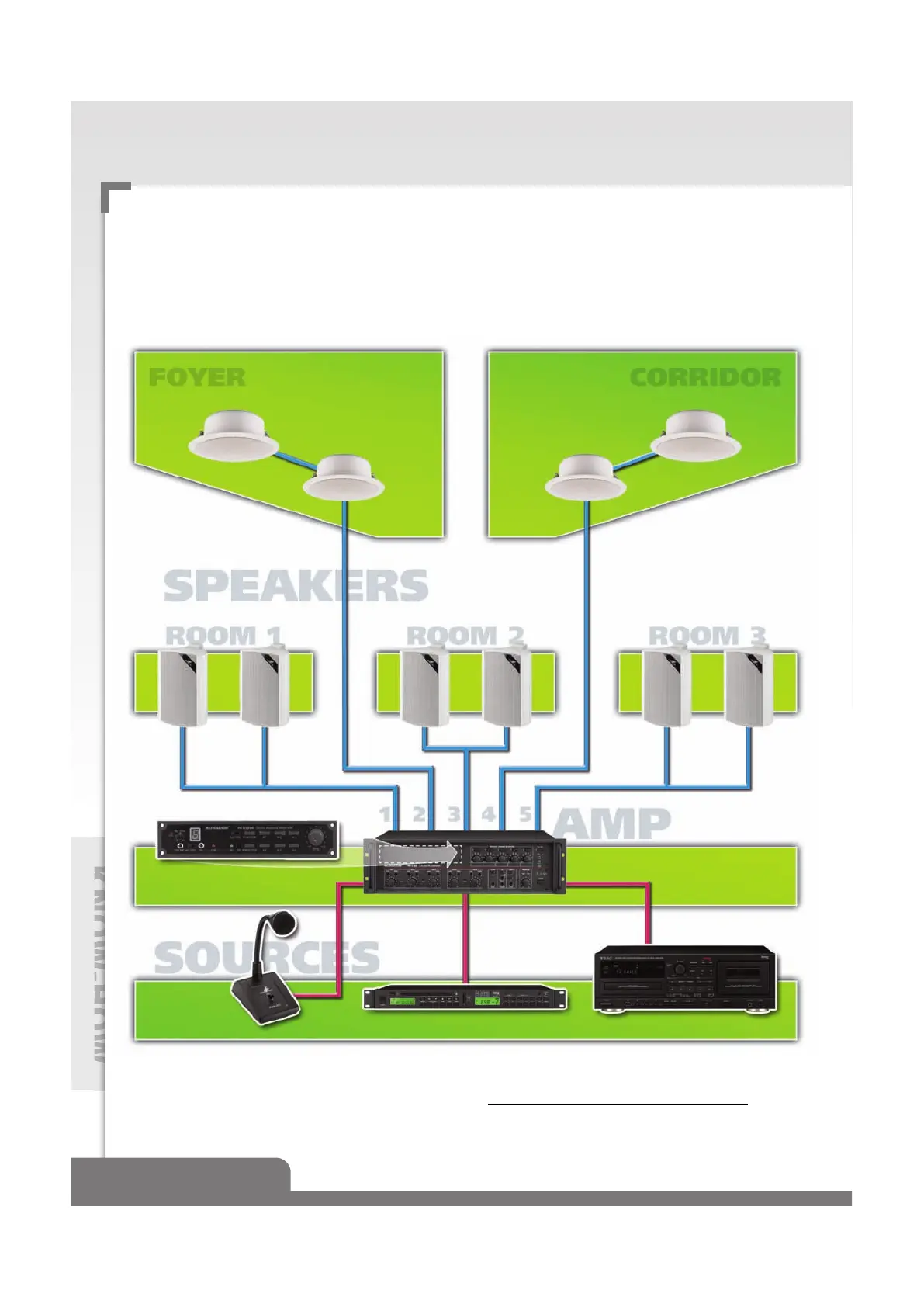

A PA System for Conference Rooms
In larger hotels, conference rooms are frequently provided. It is
required to adjust the volume in the individual rooms separately, with
the option to switch off the background music and announcements of
the PA system completely. This can be done at the amplifier itself which
is equipped with 5 adjustable output groups.
In caseofan alarm, e.g. fire,the announcements have to reach the
switched-off areas as well. This is realised by the the emergency
priority
function of the amplifier. If thisfunction is activated, every out-
put will be adjusted to max.volume.
The message module PA-1120DM can be built into the amplifier. Thus,
acontact-controlled replay of individually recorded alarm messages is
possible.
Units
1 x PA-1120 . . . . . . . . 5-zone amplifier
1 x PA-1120DM. . . . . . message module
1x PDM-302 . . . . . . . desktop microphone
1x CD-112TRS ......CD and MP3 player
1 x ADRW-900 . . . . . . CD and MP3 recorder + tape deck
Speakers
6x EUL-30/WS . . . . . wall speakers . . . . . each 15 W
4x EDL-11TW ......ceiling installation ..each 5W
Total . . . . . . . . . . . . . .110 W
List of materials
EUL-30/WS EUL-30/WS EUL-30/WS
PA-1120
PA-1120DM
PDM-302 CD-112TRS ADRW-900
EDL-11TW
EDL-11TW
EDL-11TW
EDL-11TW
