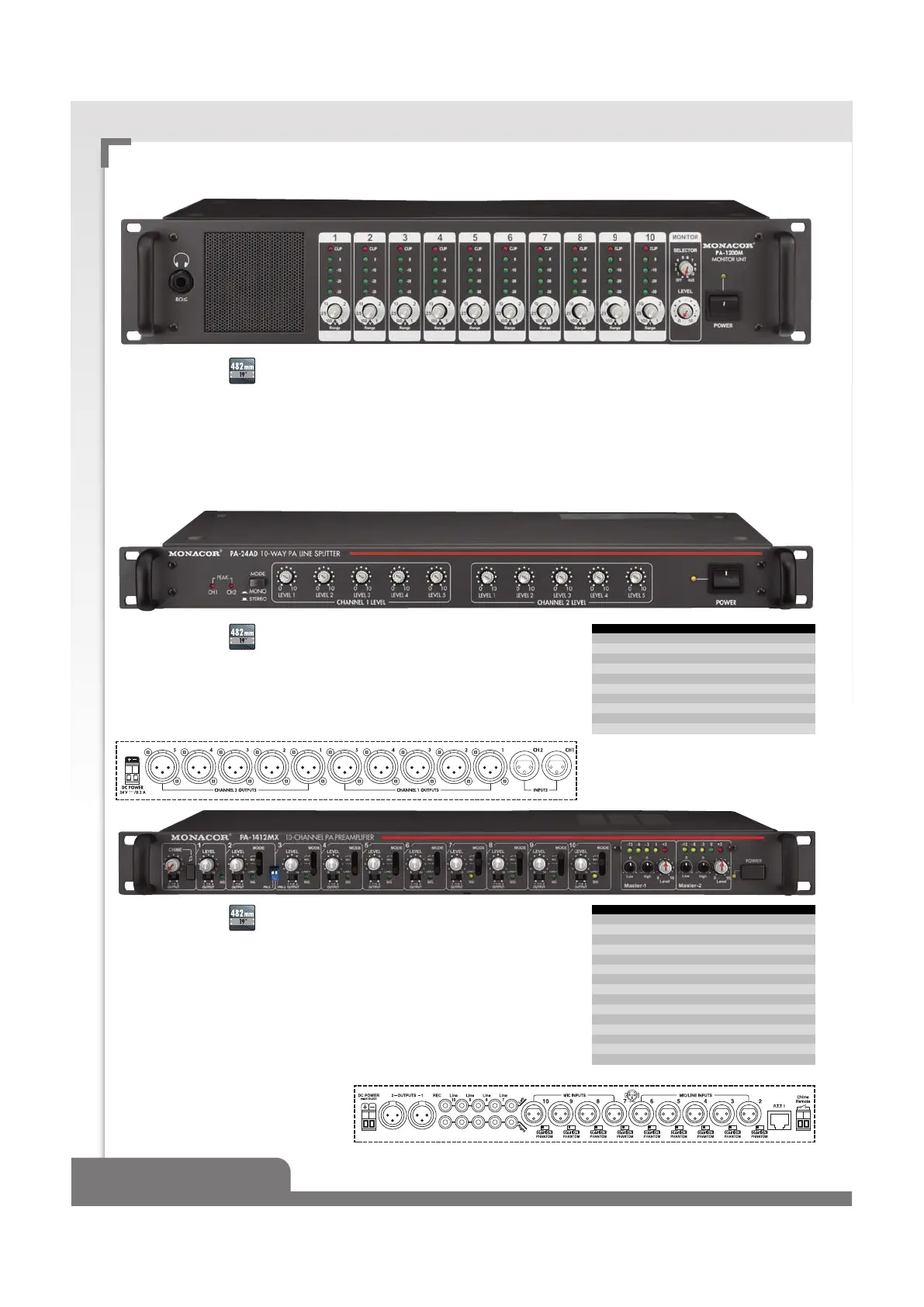

Monitor Unit, Line Splitter, Preamplifier
Order No. 24.0260
Monitor unit, 10 + 1 channels
• Audio sources can be selected via rotary
switch
• 10 monitor inputs 1-100 V/10 kΩ
•1aux input 0 dB (0.775 V)/600 Ω
• Level control, LED VU meter and clip LED
for each monitor input
• Built-in 2 W speaker, volume control
• Headphone output: ≥ 8 Ω, 0.1 W
• Frequency range: 100-20,000 Hz
•THD: < 0.3 %
•Power supply: 230 V~/50 Hz/15 VA or
24 V‡/0.5 A
• Dimensions: 482x88x200 mm,2RS
• Weight: 4.7 kg
•Mains operation and 24 V emergency
power operation
Order No. 17.1890
10-way PA line splitter
•2separate inputs
• Stereo operation or mono operation
•Balanced XLR connection for each input
and output
• Gain control for each output
• Peak indication for each input
•Mains operation and 24 V emergency
power operation
Model PA-24AD
Line inputs,mono 0.775 V/15 kΩ
Line outputs, mono 0.775 V/600 Ω
Frequency range 20-20,000 Hz
THD <0.05%
S/N ratio >68dB
Power supply 230 V~/50 Hz/10 VA
24 V‡/0.2 A
Admiss. ambient temp. 0-40°C
Dimensions 482x45x235 mm, 1 RS
Weight 3.1 kg
Order No. 17.3440
10-channel PA preamplifier
• 5 XLR input channels, switchable mic/line
•4input channels, switchable
XLR mic/RCA line
• 2 XLR master outputs
•1record output (master 1, master 2)
•Input channels with level control and
output selector switch (master 1,
master 1+2,
master 2)
•Each master output with 2-way tone control
•Chime button withpriority circuit, remote
control possible, 2-tone chime or 4-tone
chime, siren (selectable)
•1push-to-talk connection, RJ45, with
Model PA-1412MX
Frequency range 20-20,000 Hz (-0.5 dB)
Input sensitivity
Mic 2.5 mV, bal.
Line XLR 250 mV, bal.
Line RCA 250 mV, unbal.
Outputs 1.2 V/200 Ω,bal.
S/N ratio
Mic >60dB
Line >75dB
THD <0.05%
Admiss. ambient temp. 0-40°C
Power supply 230 V~/50 Hz/15 VA,
24 V‡/0.5 A
Dimensions 482x45x240 mm, 1 RS
Weight 3.9 kg
priority circuit (suitablee.g. for PA-4000PTT)
• Low cut filter to be switched on additionally
for eachmicrophone input
•Prioritycircuit for channels 2-3
•Phantom power for electret microphones
can be switched on additionally for each
XLR input channel
•Mains operation or 24 V emergency
power operation
