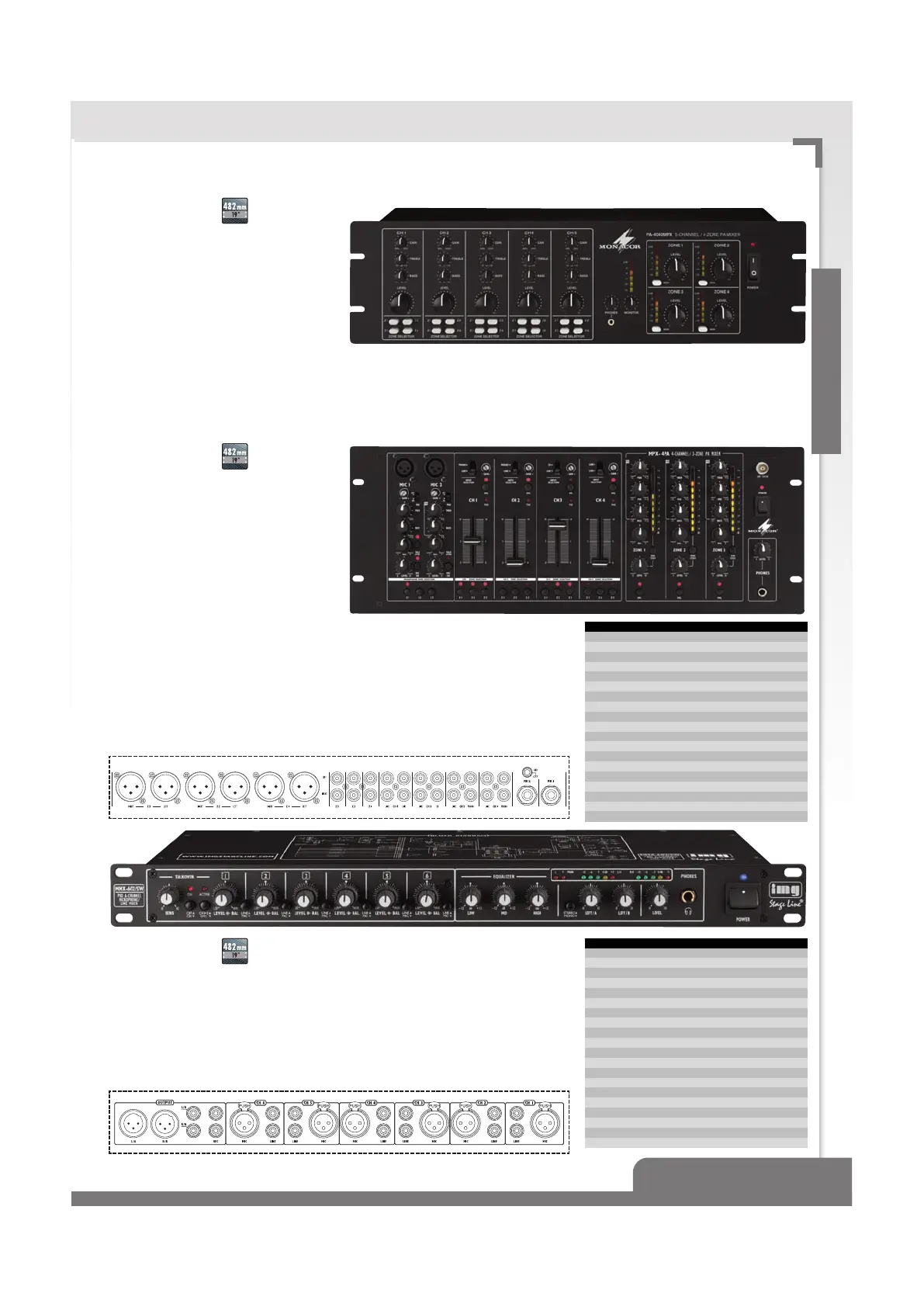

AMPLIFIERS
PA Technology 2014
Zone Mixers
Order No. 20.2070
3-zone mixer
•3zones with routing facility of all input
channels as desired
• XLR and RCA zone outputs
•6inputchannels (4 stereo ways, 2 micro-
phone ways)
• Both microphone ways can only be routed
together
• Recessed gain control for each input
channel
• Microphone ways, each with 2-way tone
control, talkover and PAD switch
• Stereo channels, switchable
2xphono/line and 2xline/line
•Zoneoutputs, each with 3-way equalizer,
LED level display of the stereo master,
balancecontrol, pre-fader listening (PFL)
and mono/stereo selector switch
• Adjustable headphone output with pre-
fader listening (PFL) to the stereo input
channels and the zone outputs
• Connection for gooseneck light GNL-204
or GNL-205
Order No. 17.3450
4-zone mixer, for general multi-room PA
applications.
• 4 zones with routing facility of all input
channels as desired
•3inputs microphone/line via comb. jacks
•2inputs line stereo via RCA jacks
• Each input channel with gain control,
2-way tone cont
rol and zone routing
swit
ch
• Microphone inputs with +15 V phantom
power, to be switched on as required
• Priority function for channels 1-3, switch-
able
•Independent paging input, can be routed
to each zone
•
4 zone outputs, canbeadjustedindividually
•Connection for monitor speaker
• Level control via zone VU meter and
monitor VU meter
• Adjustableheadphone output
• Mains operation or 24 V emergency
power operation
Model MPX-4PA
Mic input 1.5 mV
Phono input 3 mV
CD input 150 mV
Line input 150 mV
Master output 1 V/600 Ω
Record output -
Headphones ≥ 8 Ω
Frequency range 20-20,000 Hz
THD 0.1 %
S/N ratio 61 dB,unweighted
Equalizer, bass +12 dB, -12dB/50 Hz
Equalizer, midrange +12 dB, -12dB/1 kHz
Equalizer, treble +12 dB, -12dB/10 kHz
Talkover -16dB
Gooseneck light 12 V/5 W, BNC
Power supply 230 V~/50Hz/20VA
Admiss. ambient temp. 0-40°C
Dimensions 482x177x105 mm, 4 RS
Weight 3.75kg
Order No. 20.2230
Microphone line mixer, 6 channels.
• 6 stereo line inputs, 6 balanced mono
microphone inputs, switchable
• Adjustable automatic talkover (-12 dB),
switchable for channel 1 or channels 1+2
• Balance control for each stereo input
channel
• 3-way equalizer
• 12 V phantom power can be switched on
additionally
•LED VU meter, peak LED
•Master output and record output
• Output can be switched stereo/mono
•Adjustable headphone output
• 482 mm (19") rack installation, 1 RS
Model MMX-602/SW
Line input, stereo 100 mV/10 kΩ
Microphone input 1 mV/6.6 kΩ
Master output, stereo 1V/600 Ω
Record output, stereo 310 mV/600 Ω
Headphones, stereo > 8 Ω
Frequency range 20-20,000 Hz
THD 0.1 %
S/N ratio 62 dB,unweighted
Equalizer, bass ±12 dB/50 Hz
Equalizer, midrange ±12 dB/1 kHz
Equalizer, treble ±12 dB/10 kHz
Power supply 230 V~/50 Hz/12VA
Admiss. ambient temp. 0-40°C
Dimensions 482x47x208 mm, 1 RS
Weight 2.8 kg
Line input, stereo 6xRCAL/R
Microphone input 6 x XLR, bal.
Master output, stereo 1xRCAL/R, 1 x XLR L/R, bal.
Record output, stereo 1xRCAL/R
Headphones 1x6.3 mm jack
