ZERO ADJUSTMENT OF METER BOARD
Remove the transport tape for the pendulum. Loosen
tension device so the brake belt feels loos. Check that
the pendulum will hang in vertical position. The index on
the pendelum weigh shall now be aligned with the index
at the 0-position on the board.
If adjustment is necessary, first loosen the lock nut and
then change the position of the board, so that it will have
its 0-index in line with the index of the weight. Tighten the
lock nut after the adjustment. See fig 9.
Check at the same time that the scale for kiloponds to
the left of the electronoic meter will have its 0-index in
line with the index in window.
If needed the position of the scale can be adjusted after
the adjusting screw has been loosened.
Tighten the screw firmly after the adjustment.
Lock nut
Adjustm.
weight

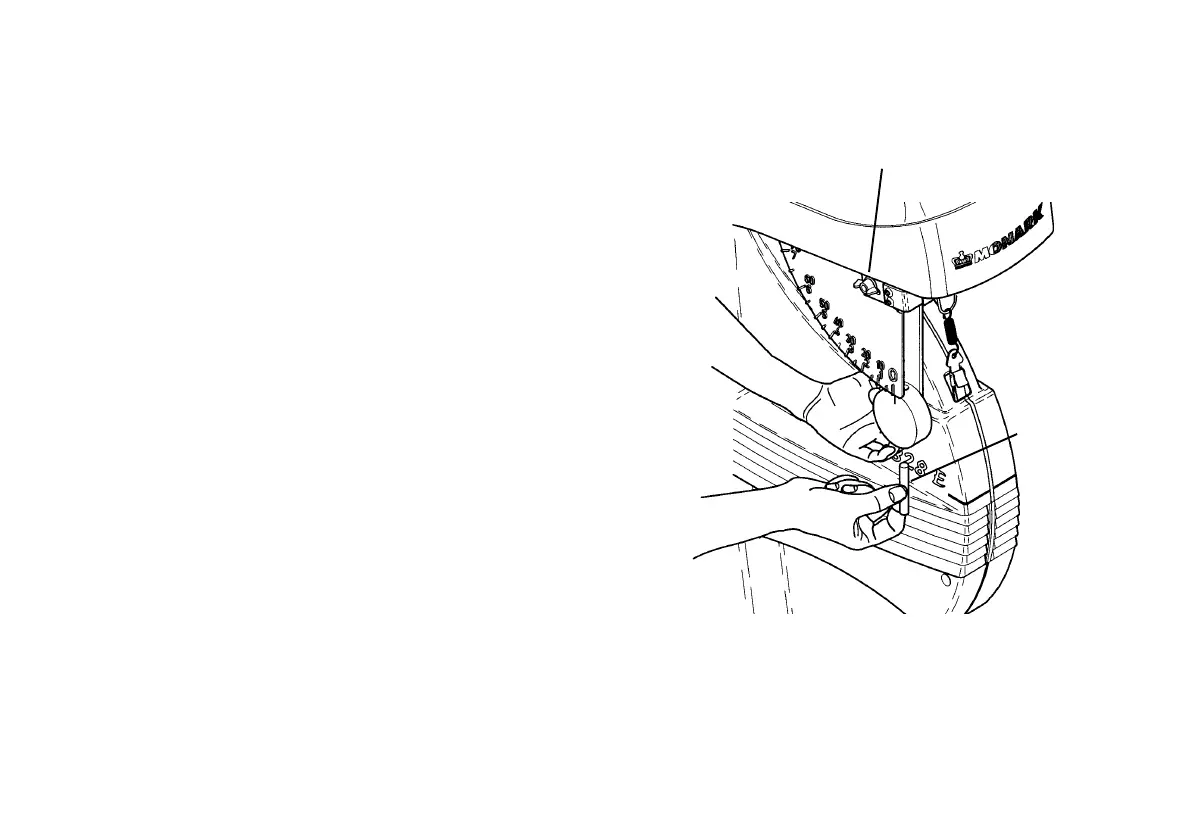

Fig. 9
