© Monitor Audio 2006
- 2 -
Preconstruction Bracket installations steps:
1. Decide location of speaker (s).

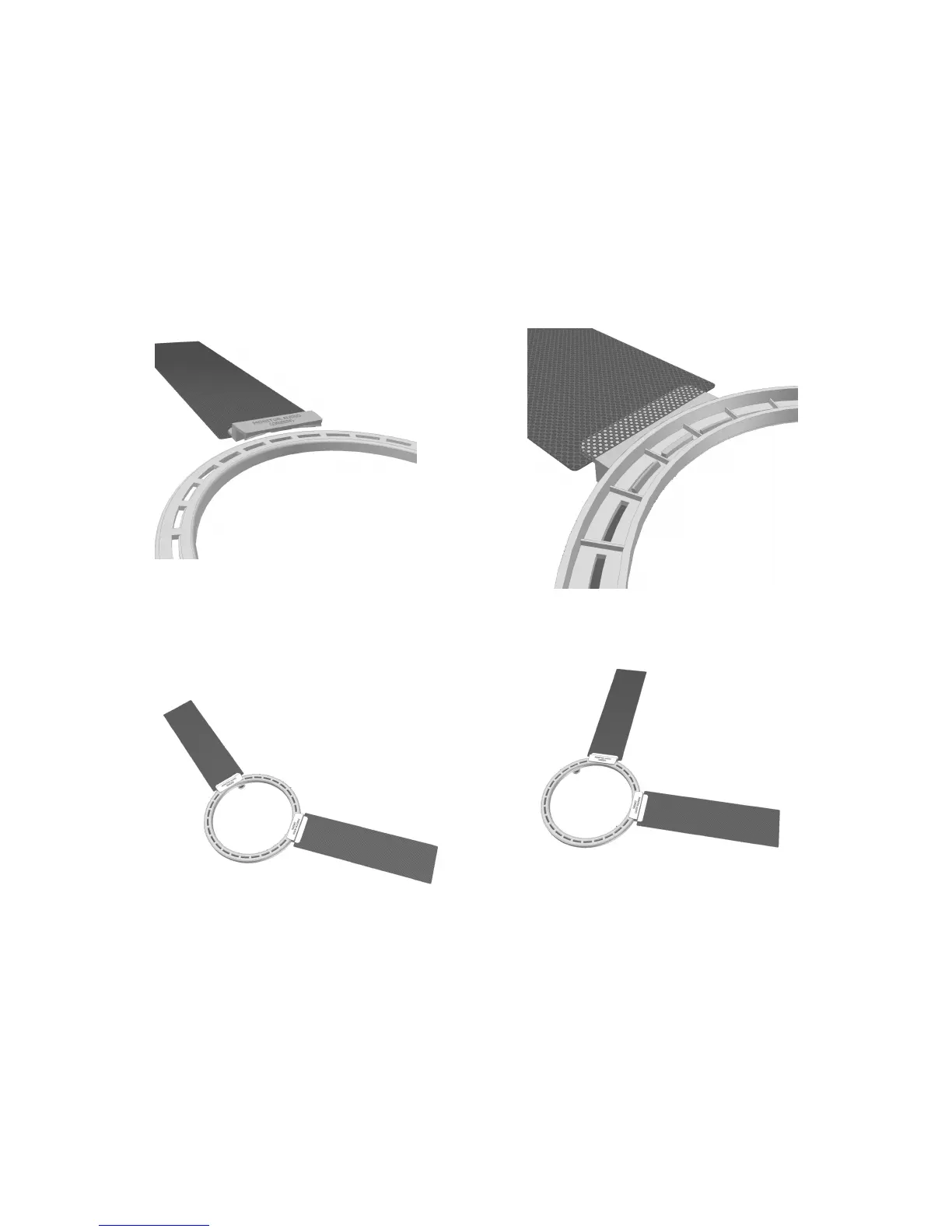

2. Clip fixing wings into place in convenient location around the polymer frame to
suit the joists.
NOTE: Ensurethe clips of the wings are fixed securely. There should be no gap
around the outside of the wing whereit joins the bracket. If there is a gap, this
is a sure sign one of theclips is not incorrectly.
3. Staple fixing wings to joists. Ensure the Monitor Audio and colour text on the
wings face away from youwhen fastening.
4. Cable tie/ zip tie the speaker cable to the loop provided inside the moulding.
This loop snaps off when installing speaker.
5. Fix plaster board/ drywall.
6. Cut hole around the pre-construction bracket.
Alternativefixing arrangements are possible.
