Monitor Audio 300 series User Manual

Frequency Response
45 Hz - 30 KHz
Impedance (nominal)
6 Ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (R.M.S)
120 W
Recommended Amp
15 - 120 W
Crossover Frequency / Slope
2.4 KHz @ 12 dB / Octave
Driver
1 x 8” C-CAM
®
cone bass driver
featuring RST
®
2 x 1” (25 mm) C-CAM
®
gold dome
tweeter
Overall Diameter
286 mm (11 1/4 inch)
Overall Depth
161 mm (6 5/16 inch)
Cut-out Hole Diameter
247 mm (9 3/4 inch)
Mounting Depth
156.5 mm (6 3/16 inch)
Controls
+3db / 0dB / -3dB
High Frequency level switch &
di-pole / bi-pole switch with
addtional 12v trigger switching
Fixing Type
3 position Tri-Grip dog fixings
Cable Connection
Gold plated ‘push’ type terminals
Construction Material
Frame: Mineral lled ABS plastic
(UL94-VO rated, RoHS compliant)
Bafe: Die-cast Aluminium
Pre-construction Bracket
CB8 (Green)
Weight Kg (lb)
3.2 Kg (7 lb)
C380-FX
Frequency Response
45 Hz - 30 KHz
Impedance (nominal)
6 Ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
112 dBA
Power Handling (R.M.S)
150 W
Recommended Amp
15 - 150 W
Crossover Frequency / Slope
Mid: 250 Hz @ 6 dB / Octave
High: 3 KHz @ 12 dB / Octave
Driver
1 x 8” C-CAM
®
cone bass driver
featuring RST
®
Pivoting inverted dual concentric
module (IDC) housing:- 1 x 4”
C-CAM
®
RST
®
‘inverted’ mid-range
driver
1 x 1” (25 mm) C-CAM
®
gold dome
tweeter
Overall Diameter
286 mm (11 1/4 inch)
Overall Depth
161 mm (6 5/16 inch)
Cut-out Hole Diameter
247 mm (9 3/4 inch)
Mounting Depth
156.5 mm (6 3/16 inch)
Controls
+3db / 0dB / -3dB
High Frequency level switch &
Boundary Compensation switch
Fixing Type
3 position Tri-Grip dog fixings
Cable Connection
Gold plated ‘push’ type terminals
Construction Material
Frame: Mineral lled ABS plastic
(UL94-VO rated, RoHS compliant)
Bafe: Die-cast Aluminium
Pre-construction Bracket
CB8 (Green)
Weight Kg (lb)
3.64 Kg (8 lb)
C380-LCR W380-LCR
Frequency Response
42 Hz - 30 KHz
Impedance (nominal)
6 Ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
112 dBA
Power Handling (R.M.S)
150 W
Recommended Amp
15 - 150 W
Crossover Frequency / Slope
Mid: 250 Hz @ 6 dB / Octave
High: 3 KHz @ 12 dB / Octave
Driver
1 x 8” C-CAM
®
cone bass driver
featurung RST
®
Pivoting inverted dual concentric module
(IDC) housing:- 1 x 4” C-CAM
®
RST
®
‘inverted’ mid-range driver
1 x 1” (25 mm) C-CAM
®
gold dome
tweeter
Overall Dimensions
423 mm x 270 mm
(16 5/8 x 10 5/8 inch)
Overall Depth
103 mm (4 1/16 inch)
Cut-out Hole Size
387 mm x 234 mm
(15 1/4 x 9 3/16 inch)
Mounting Depth
98.5 mm (3 7/8 inch)
Controls
+3db / 0dB / -3dB
High Frequency level switch;
+3db / 0dB / -3dB
Mid Frequency level switch &
Boundary Compensation switch
Fixing Type
6 position Tri-Grip dog fixings
Cable Connection
Gold plated ‘push’ type terminals
Construction Material
Frame: Mineral lled ABS plastic
(UL94-VO rated, RoHS compliant)
Bafe: Die-cast Aluminium
Pre-construction Bracket
WB8 (Green)
Weight Kg (lb)
4.1 Kg (9 lb)

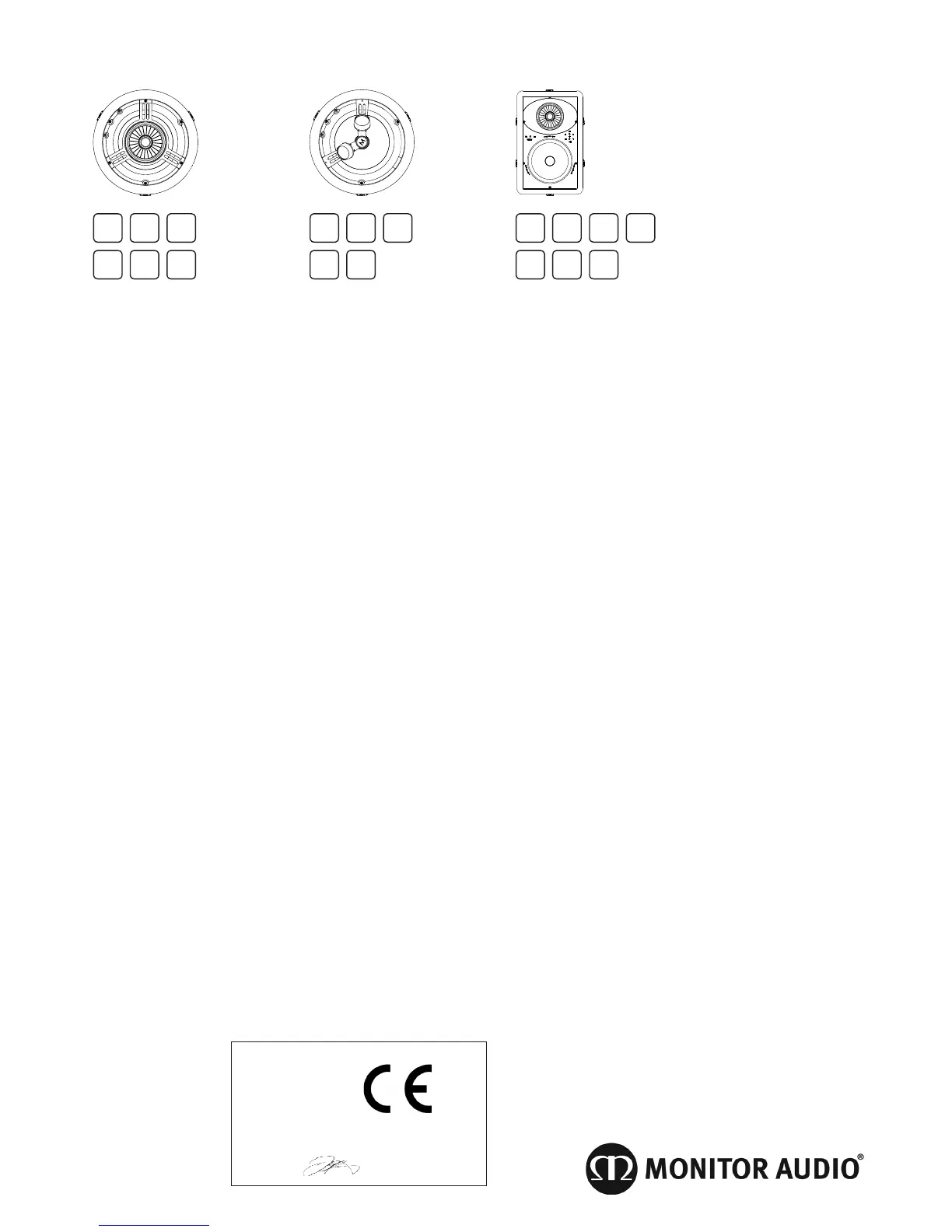

C-CAM
®
H.F
IDCRST
®
Boundary
M.F
Declaration of Conformity
We, Monitor Audio Ltd.
24 Brook Road
Rayleigh
Essex
SS6 7XL
England
Declare in own responsibility, that the products described in this manual are in
compliance with technical standards:
EN 50082-1 : 1998
EN 55013 : 2001
EN 50020 : 2002 Dean Hartley (Technical Director)
Monitor Audio Ltd
England
Q u i c k T i m e ™ a n d a
d e c o m p r e s s o r
a r e n e e d e d t o s e e t h i s p i c t u r e .
Declarat ion of Co n for mity
We , M on itor Au d io L td.
24 Brook Road
Rayleig h
Esse x
SS6 7 XL
Eng land
Declare in ow n resp onsibi lity , th at th e produ cts descri bed in this ma nua l are in
compl iance with technica l standard s:
EN 50082 -1 : 19 98
EN 5501 3 : 2001
EN 5002 0 : 200 2 Dean Ha rtley (Tech n ical Director)
Mon ito r Au dio L td
Eng land
C-CAM
®
Tri-Grip
IDCRST
®
Boundary
H.F
Monitor Audio Ltd
Unit 2, 24 Brook Road
Rayleigh, Essex
SS6 7XL
England
Tel: 01268 740580
Fax: 01268 740589
Email: info@monitoraudio.co.uk
C-CAM
®
Di-Pole
Tri-GripRST
®
H.F
Tri-Grip

Monitor Audio 300 series Specifications

General

Frequency Response	45 Hz - 30 kHz
Nominal Impedance	8 Ohms
Sensitivity	90dB
Tweeter	1 x 25 mm Gold Dome C-CAM tweeter
Drive Unit Complement	1 x 25 mm Gold Dome C-CAM tweeter
