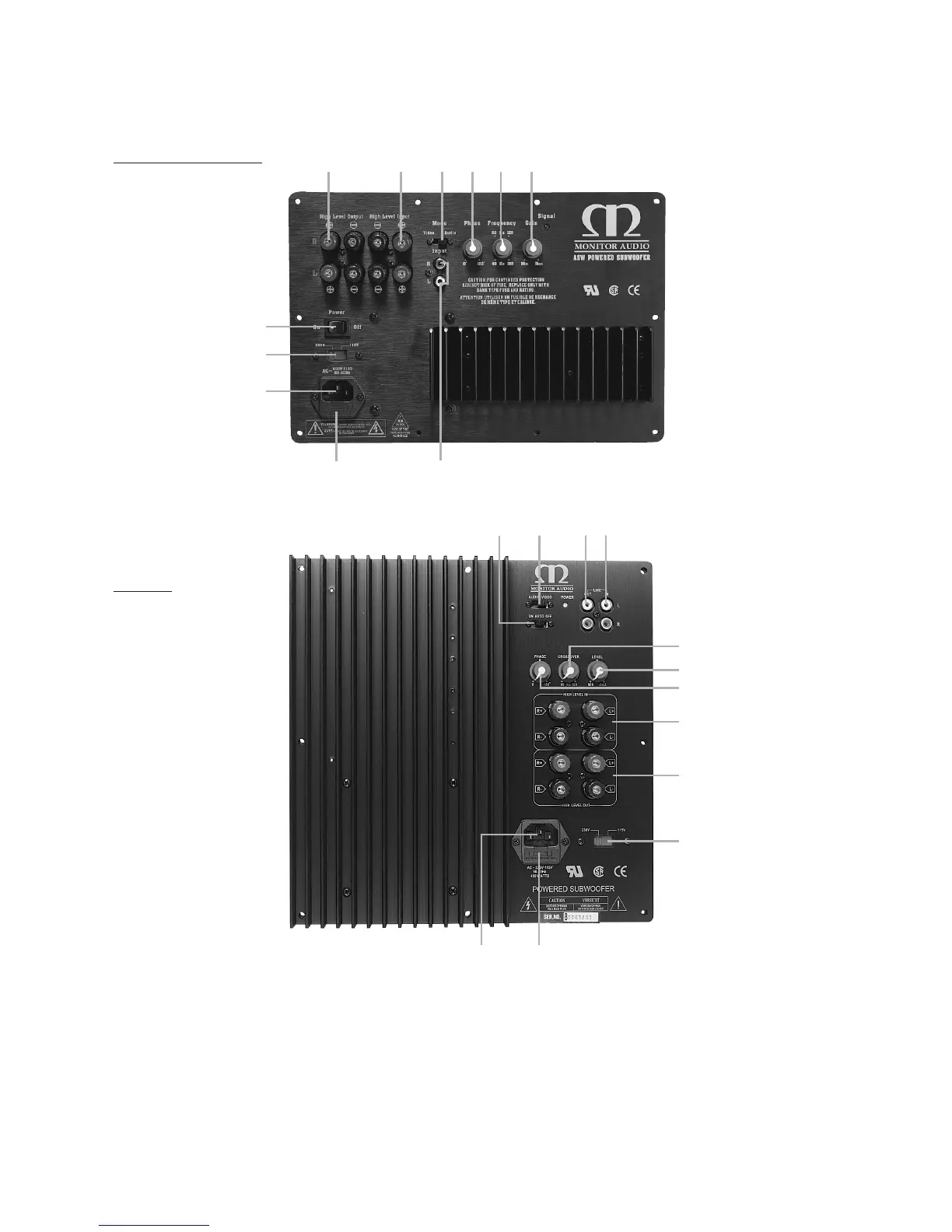

Subwoofer Controls and Connections
ASW 100 / FB110
FB 210
9 8 2 5 4 3
7
10
1
12
11
6
7
21
4
3
5
8
9
12
11 10
7RCA Phono inputs
8 High level inputs
9 High level outputs
10 Fuse
11 Mains connection
12 Voltage Selector 115/230V
1Power switch with auto off facility
2 Mode switch
3Level/Gain control
4Crossover/Frequency control
5 Phase control
6RCA Phono outputs
