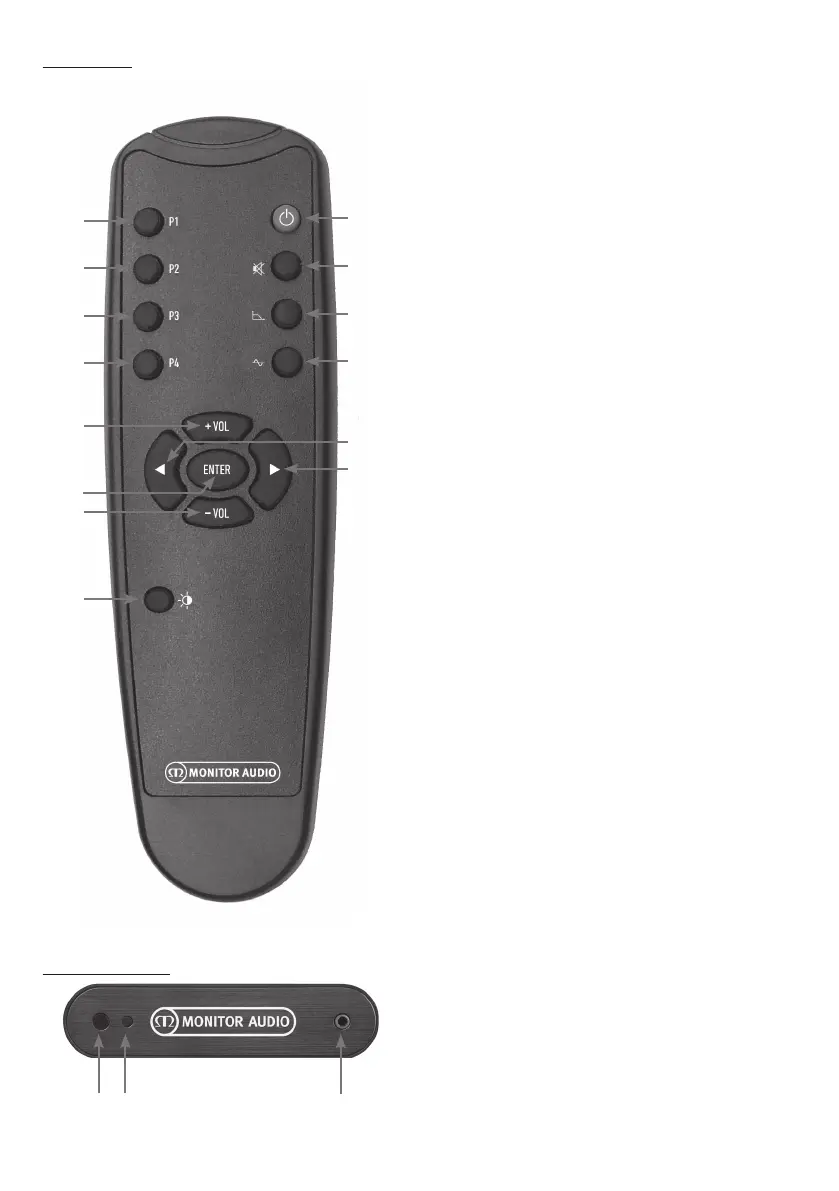

Remote
Front Panel
1. Preset 1
Selects preset 1.
2. Preset 2
Selects preset 2.
3. Preset 3
Selects preset 3.
4. Preset 4
Selects preset 4.
5. + Vol
Increases the volume trim level.
6. Enter
Selects/ confirms the command.
7. - Vol
Decreases the volume trim level.
8. LED Brightness
Toggles the LED display on or off.
9. Standby
Puts the Gold W12 into standby or wakes it
up from standby.
10. Mute
Mutes all output from the Gold W12.
11. Crossover Point
Selects the crossover control on the Gold
W12. Use the left and right arrows to adjust
the crossover frequency. This is set in 5Hz
steps from 20 to 135 Hz.
12. Phase
Selects the phase control of the Gold W12.
Use the left and right arrows to adjust the
phase. This is set in 15 degree increments
from 0 - 360 degrees.
13. Left arrow
Adjusts the chosen control.
14. Right Arrow
Adjusts the chosen control.
1. Gold W12 IR Receiver
Aim the Gold W12 remote here for it to
function.
2. IR LED Indicator
Blinks when an IR signal is received.
3. Room EQ Set Up Microphone
Connect the supplied set up microphone here
and run the set up procedure detailed below.
1
2
3
1
2
3
4
6
13
12
11
10
9
14
7
8
5
Gold W12
