Monitor Audio Radius 45 User Manual

14
© Monitor Audio 2005 Rev 2

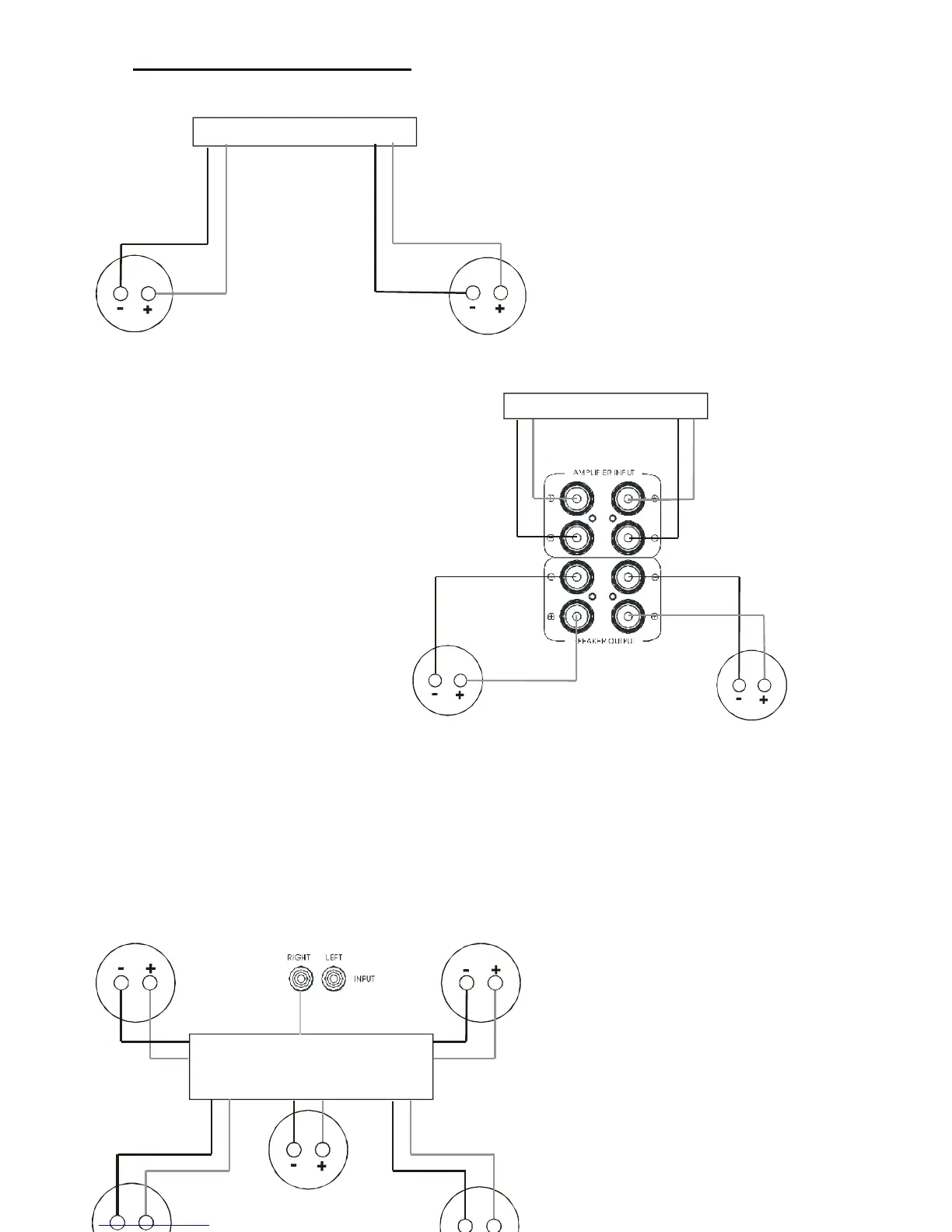

System wiring configuration
AMPLIFIER
Speaker Output
Speaker Output
AMPLIFIER
Speaker Output
Speaker Output
AV RECEIVER/PROCESSOR
Rear Speaker
Output
Rear Speaker
Output
Centre
Channel
Front Speaker
Output
Front Speaker
Output
Sub-Wofer
Phono Output
The illustration to the left
shows how the Radius
90, 180, 225, 250 and
270 can be connected
direct to your amplifier.
We do not recommend
using the Radius 45 with
a normal 2 channel
stereo system.
This next illustration to
the right shows how the
high pass filter is used on
the Radius 360/720 sub-
woofer using high-level
speaker outputs.
This final configuration to the left
shows how the Radius speakers
can be used in
home cinema.
Connect the Radius 45’s,
90’s,
180’s, 225’s, 250’s or 270’s
to
your AV receiver/processor using
the speaker outputs and use the
RCA phono sub-
woofer output on
the receiver/processor and
connect to the right input on the
Radius 360/720 sub-woofer.
When connecting your Radius
loudspeakers to an AV
amplifi
er, please set the
amplifier up so that it
recognises that they are small
