Wiring
Single Wiring

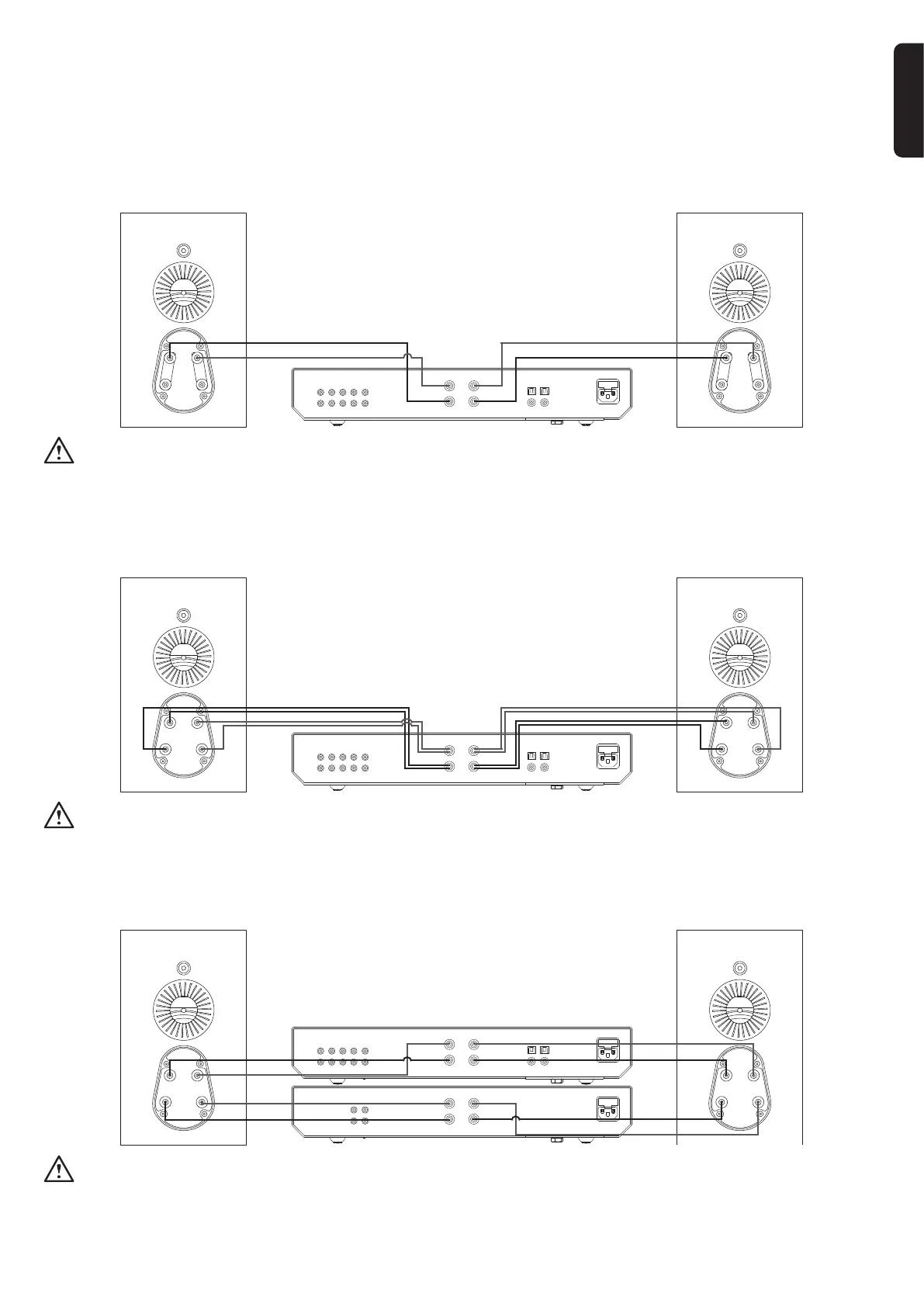

Single wiring is achieved via a single set of cables to the terminals on the back of the loudspeaker. Internally
the loudspeaker crossover guides the frequencies to the appropriate driver/tweeter. Low frequencies to the
bass drivers, mid frequencies to the mid/bass drivers and high frequencies to the tweeter.
It is perfectly acceptable to connect to the top, bottom terminals or even diagonally (experimentation is
advisable to achieve the preferred results).
RightIntergrated Amplifier
+
-
+
-
Left
NOTE: When using this method you must keep the terminal links in place.
Bi-Wiring
Bi-wiring is accomplished by connecting separate pairs of speaker cables to the terminals on the
loudspeaker from a single pair of connections on the amplier. In the case of the Silver Series, the bottom
terminals connect to the bass driver(s) and the top terminals connect to the tweeter in 2 way loudspeakers,
or the mid and tweeter in 2.5 and 3 way loudspeakers.
RightIntergrated Amplifier
+
-
+
-
Left
NOTE: When using this method the terminal links MUST be removed.
Bi-Amping
Bi-amping is the same as bi-wiring except you are introducing a second amplier into the equation.
In order to bi-amp you must connect a set of speaker cables to the top terminals on the loudspeaker from
one amplier and another set of speaker cables to the bottom terminals from the second amplier.
RightIntergrated Amplifier
+
-
+
-
Left
RightPower Amplifier
+
-
+
-
Left
NOTE: When wiring this method the terminal links MUST be removed.
