Bx oven ECO HAL range inc condenser and spares 24/01/13 RAC

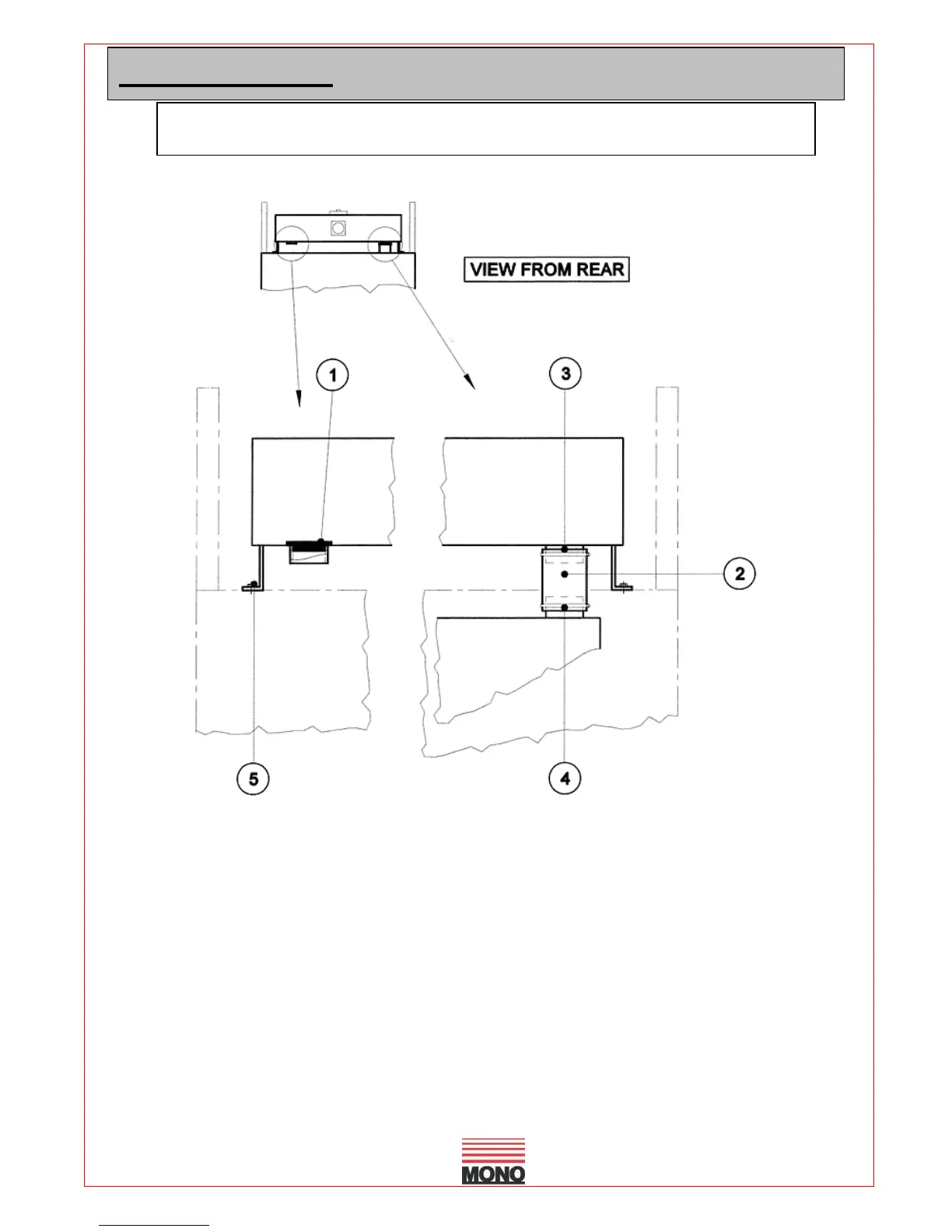

1. Before fitting the main condenser assembly, insert blanking plug (1) into lower hole
that will not be required for the hand of oven being used.
2. Connect tube (2) to the spigot and retain with worm-drive clip (3).
NOTE
If fixing holes are not present on the top sheet of the oven, they should be marked and
drilled at this stage.
Position condenser correctly and mark hole positions (centre of each slot). Remove
condenser and drill holes of 6.5mm diameter at 4 positions.
INSTALLATION
NG ENSURE THAT ALL POWER IS DISCONNECTED AND
THE OVEN IS COOL
