Mono Bx OVEN

Bx oven ECO HAL range inc condenser and spares 24/01/13 RAC
85
3. Place condenser in position ensuring that the tube (2) passes through the hole in the
top of the oven and worm drive clip (4), then over spigot of the damper assembly on
the oven.
4. Tighten worm-drive clip (4).
5. Fasten condenser unit to top of oven with M6 x 12mm long hex head screws and
washers in 4 positions.
(If holes have been drilled, nuts will have to be used also).
6. Connect wiring, depending on whether the oven is 4 tray or 10 tray, as shown in
electrical manual.
7. Connect drain hose to a suitable drain.

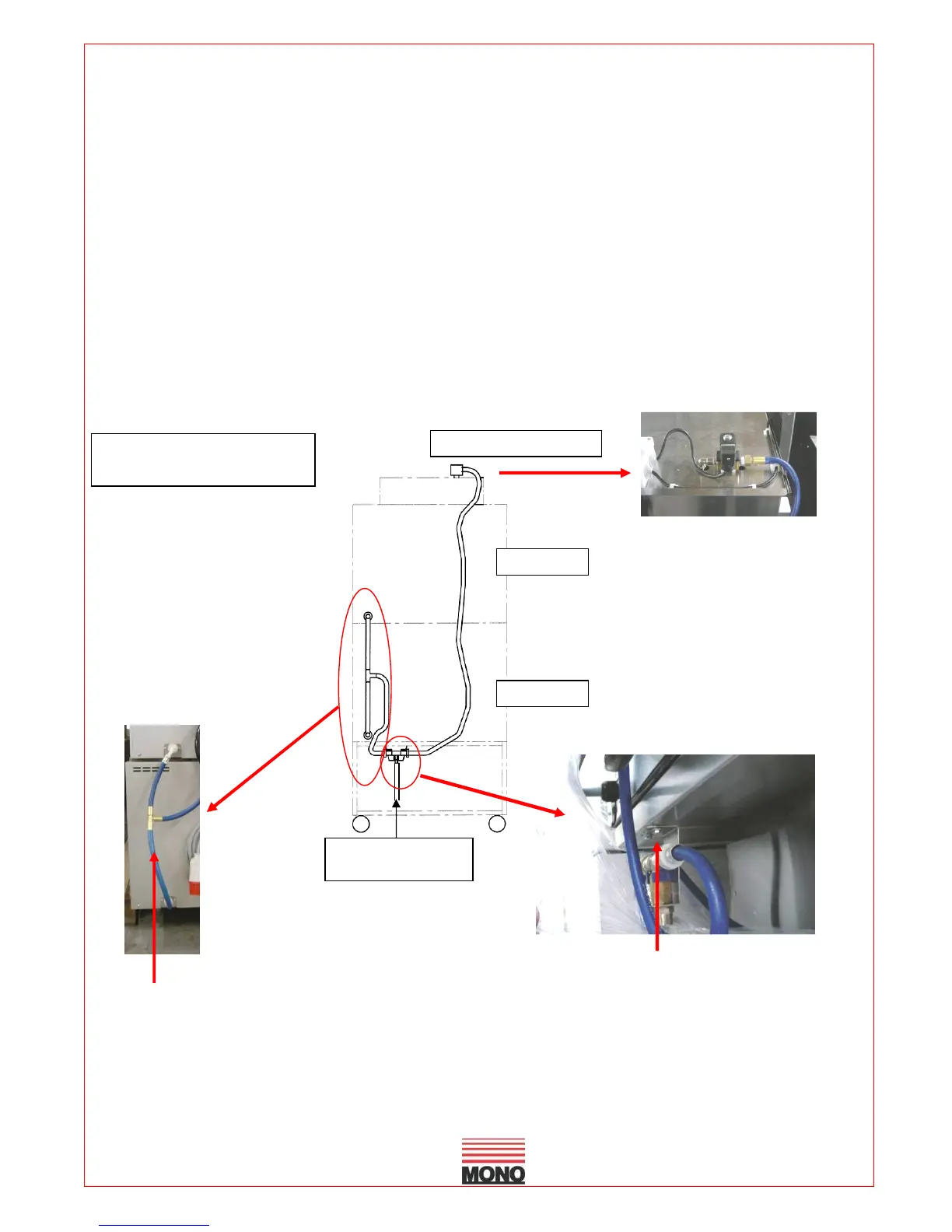

8. Attach water tap bracket to frame of base as shown and fasten water hose to a water
supply. (A tee pipe must be used on double ovens)
WATER TAP BRACKET
FIXINGS
TEE PIPE FOR DOUBLE
OVEN CONNECTION
WATER PIPE
CONNECTION
OVEN 1
OVEN 2
CONDENSER SOLENOID
MAINS IN
