Eco Connect Convection Ovens | 4/5/7/10-Tray | Steam Installation and Operation Manual
54
MONO FG1BX-UK-MAN-0200 | Rev. A23 (March 2023)

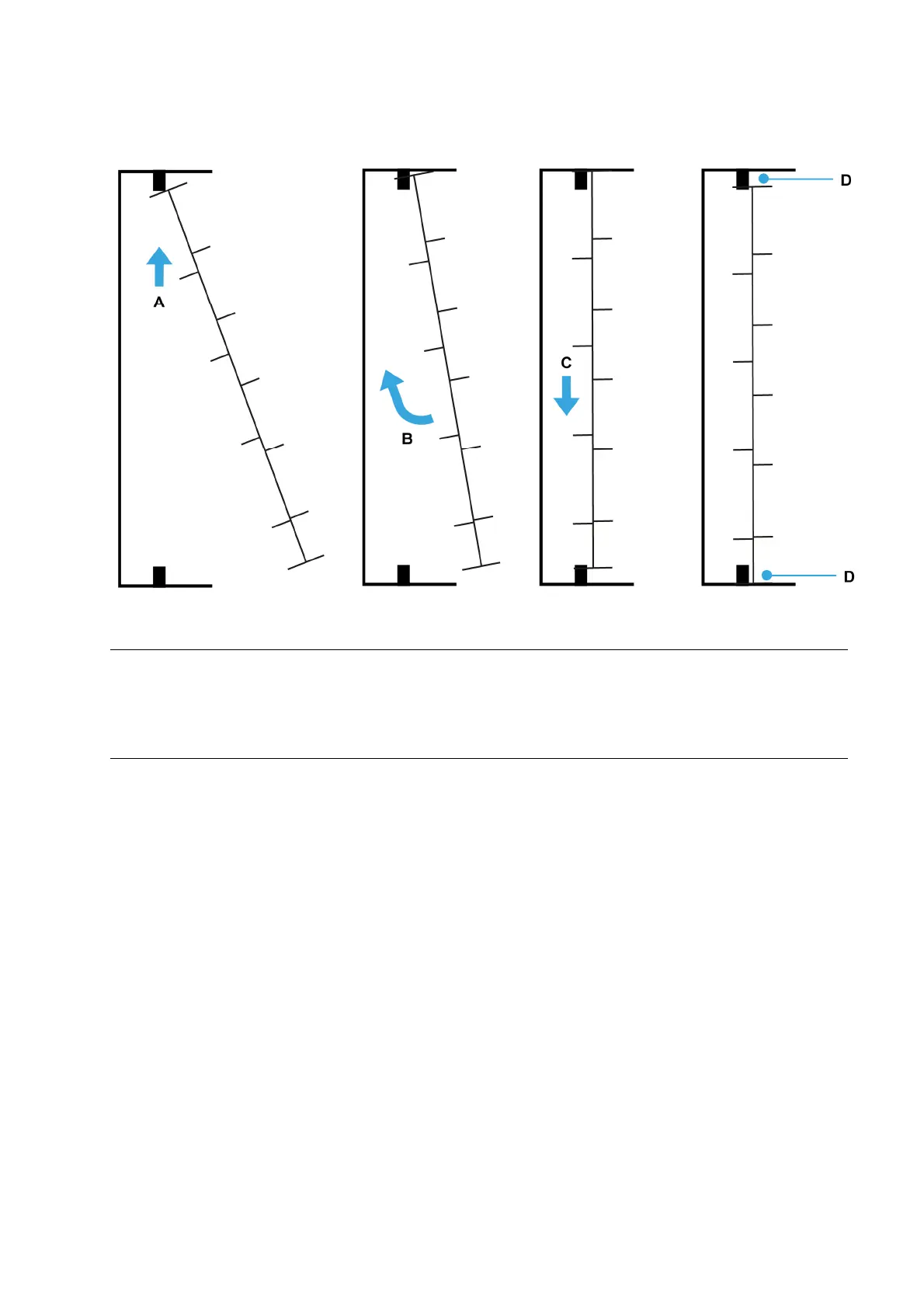

Figure 8: Installing a runner rack (left-hand side shown)
A. Place slots nearest oven wall over top pins
B. Swing rack into line up bottom slots with bottom pins
C. Lower rack onto bottom pins
D. Rack held in place by the top and bottom pins
