Installation and Operation Manual Eco Connect Convection Ovens | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0200 | Rev. A23 (March 2023) MONO 75
PART 3 4/5 Tray 60cm x 40cm Oven Spares Section
Oven Code FG158

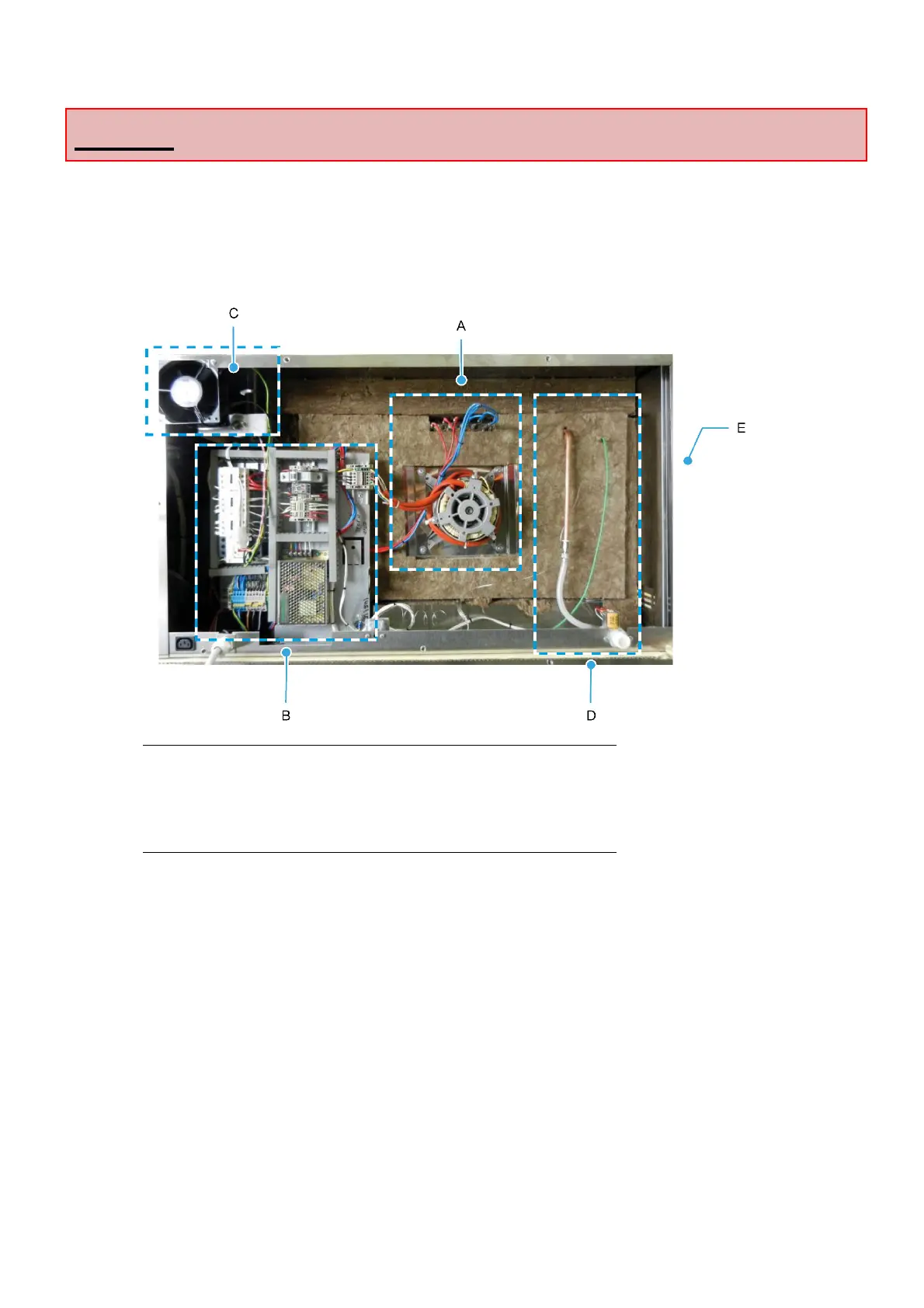

Figure 25: Rear view with outer sheeting removed (FG158)
A. Motor and Element ....................... (Part 3 / Section 1 on Page 76)
B. Main Panel ................................... (Part 3 / Section 2 on Page 77)
C. Damper and fan............................ (Part 3 / Section 3 on Page 78)
D. Water System ............................... (Part 3 / Section 4 on Page 79)
E. Baking Chamber and Door Parts . (Part 3 / Section 5 on Page 81)
