Installation and Operation Manual Eco Connect Convection Ovens | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0200 | Rev. A23 (March 2023) MONO 67
PART 2 4/5 Tray 18” x 30” Oven Spares Section
Oven Code FG159

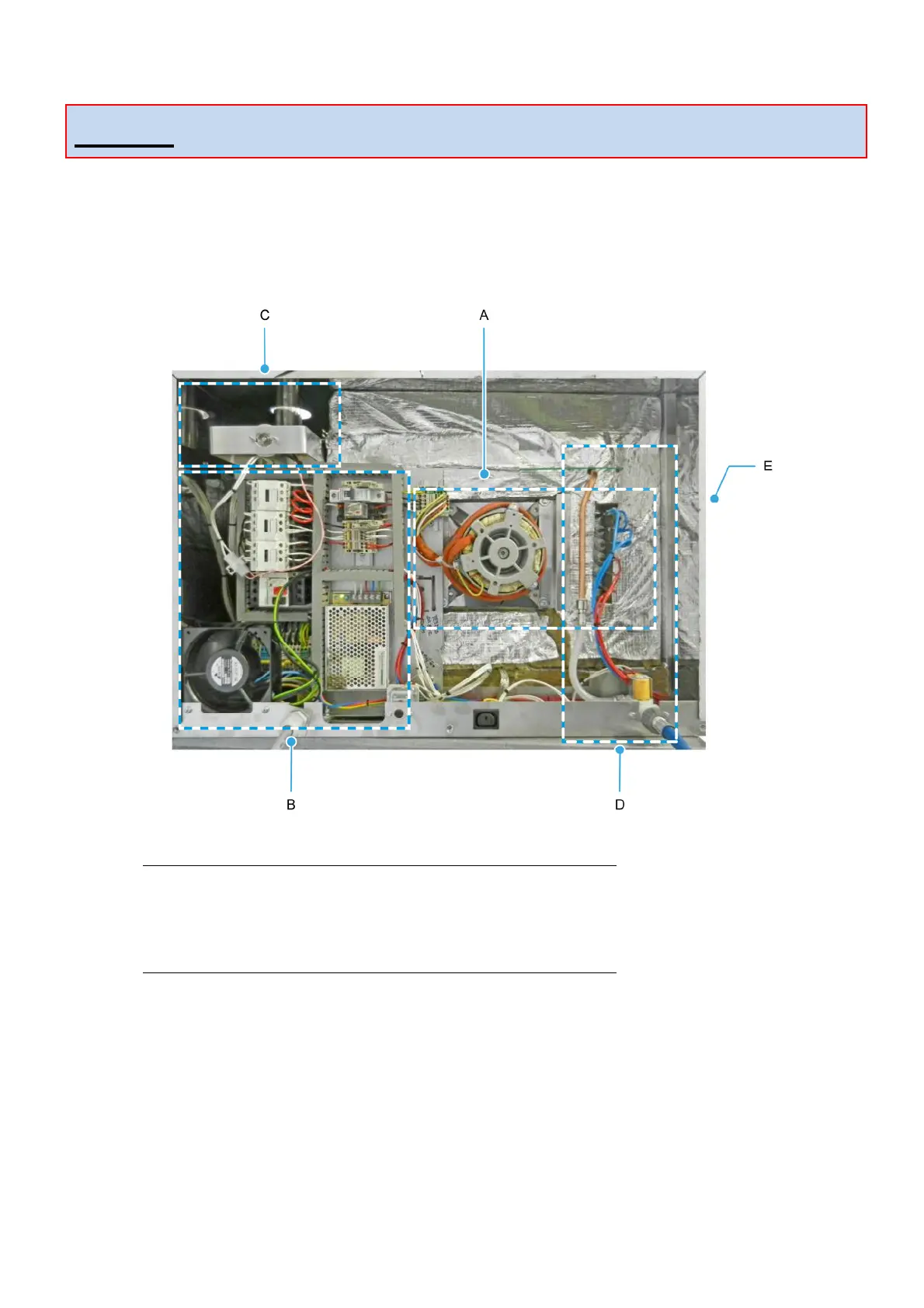

Figure 18: Rear view with outer sheeting removed (FG159)
A. Motor and Element ....................... (Part 2 / Section 1 on Page 68)
B. Main Panel ................................... (Part 2 / Section 2 on Page 69
C. Damper ......................................... (Part 2 / Section 3 on Page 70)
D. Water System ............................... (Part 2 / Section 4 on Page 71)
E. Baking Chamber and Door Parts . (Part 2 / Section 5 on Page 73)
