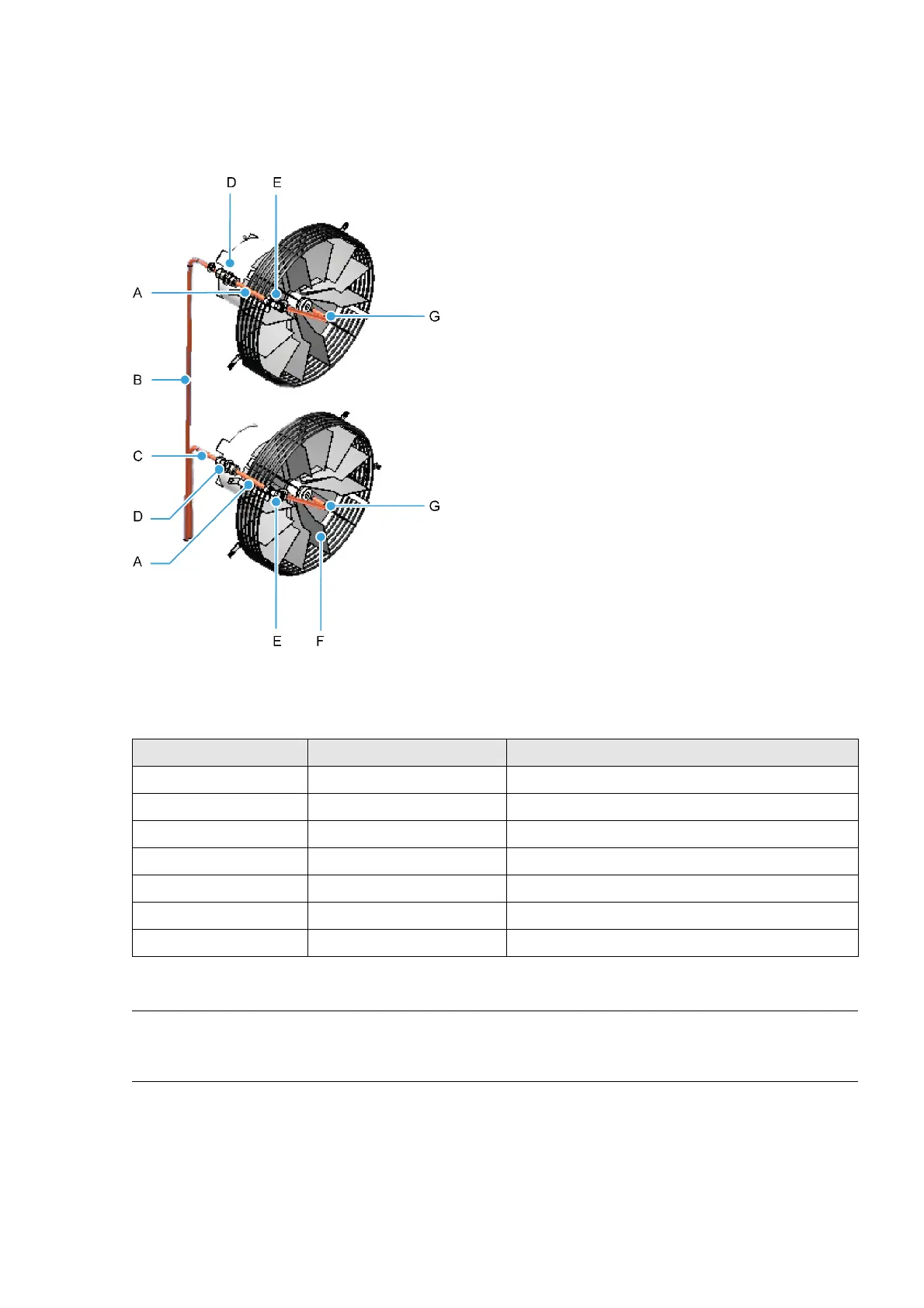

Figure 16: Water/Steam System (FG150) – 2
Table 10: Item numbers in Figure 16
Item Number Part Number Part Description
A 150-07-00900 Joint tube
B 150-07-00800 Delivery pipe - long
C 150-07-00700 Delivery pipe - short
D A900-34-321 Bulkhead coupling
E A900-34-387 Equal elbow
F 150-00-11300 Fan
G 150-07-00500 Delivery pipe
NOTE
Complete steam assembly kit is part number 150-07-00003.
Includes 150-01-07700 (pipe guide bracket x 2) and 150-07-00400 (double solenoid inlet valve).
