Installation and Operation Manual Eco Connect Convection Ovens | 4/5/7/10-Tray | Steam
FG1BX-UK-MAN-0200 | Rev. A23 (March 2023) MONO 87
Part 4 | Section 4 | Water/Steam System (FG153)

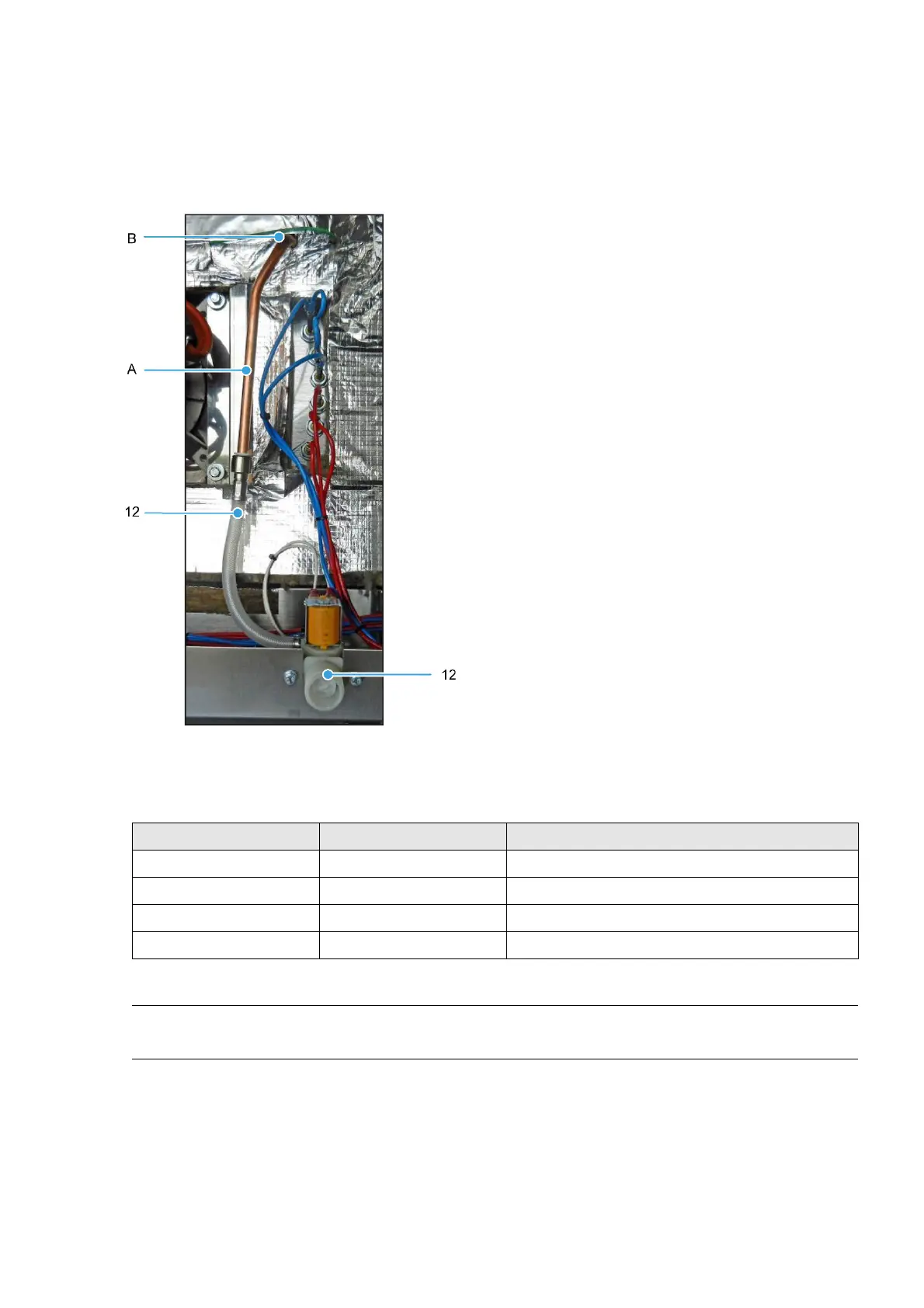

Figure 36: Water/Steam System (FG153) ā 1
Table 27: Item numbers in Figure 36Figure 29
Item Number Part Number Part Description
12 158-17-00400 Water inlet assembly (including hose)
A A900-34-253 Copper pipe (10 mm OD x 20 SWG)
B A900-34-321 Bulkhead coupling (under insulation)
N/A A900-34-087 Hose ā blue (Not shown)
NOTE
Part numbers are referenced from electrical drawing M158E25-75200 in the Electrical Manual.
