Custom Panel Dimensions
48" Built-In Refrigerator

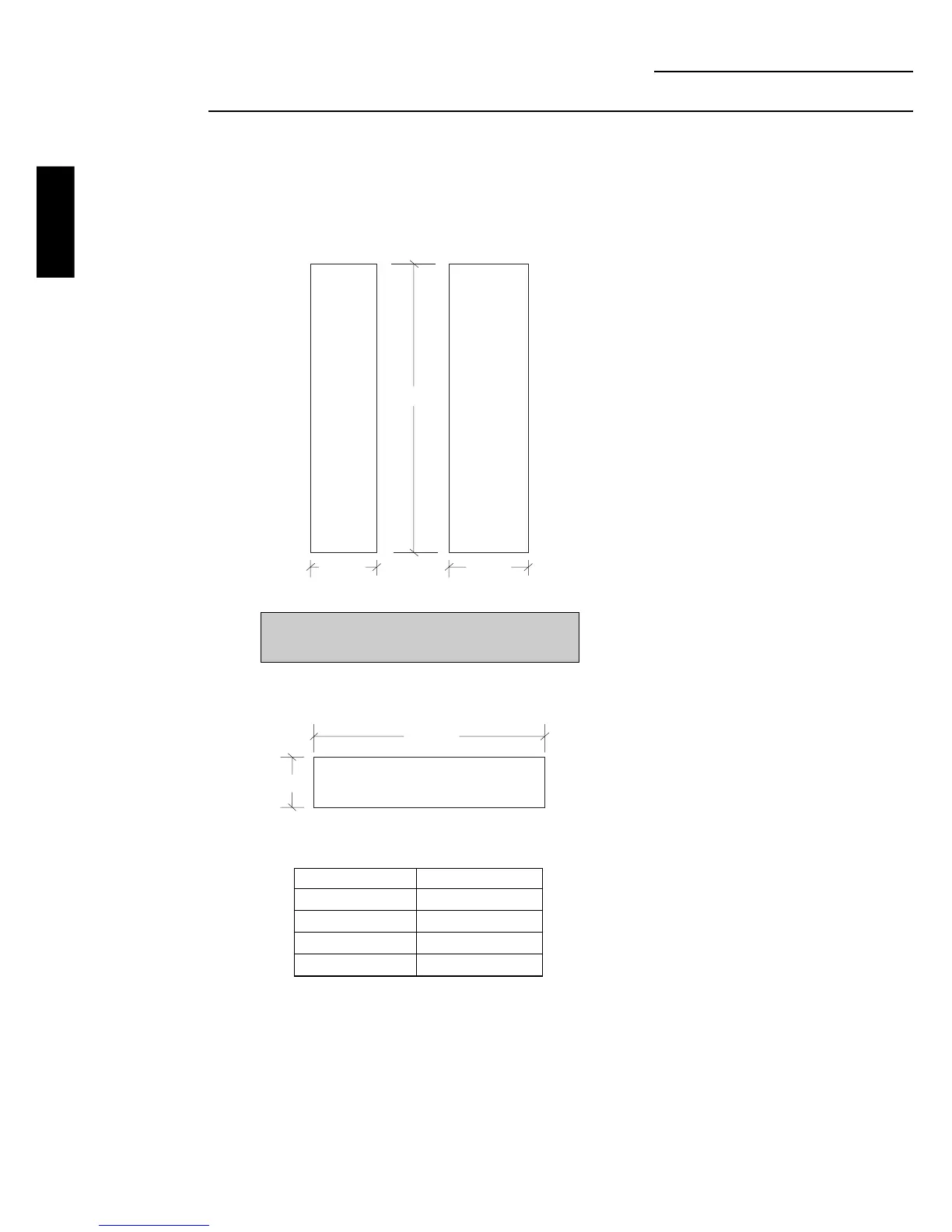

Custom Door Panel Dimensions
Using Trim Kit ZKT48
3/4" thick panel with standard handle
Grille Panel height can vary to fill installation
height.
Installation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Important:
Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
ZIS48N (non-dispenser)
• The ZKT48 trim kit provides for the installation of 3/4"
custom door and grille panels, using the standard full-
length handle. Cut panels to size and install.
67 15/16"
19 1/16" 27 1/16"
Freezer Panel Fresh Food Panel
Custom Grille Panel
47 1/2"
A
Over 1/4" Thick (3/4" max) Panel
CUSTOM PANEL
DIMENSIONS
Important: Maximum weight for fresh food panels is
50 pounds and 30 pounds for freezer door panels.
