9
Custom Panel Dimensions
48" Built-In Refrigerator
ZIS48N (non-dispenser)
• ZKT48 and ZKHT1 installed together provides for the
installation of 3/4" custom door and grille panels,
using a custom handle, of your choice. Order
ZKHTSS1 for tubular stainless-steel handles. Cut
panels to size, rout the handle side of the panels as
shown below and install.

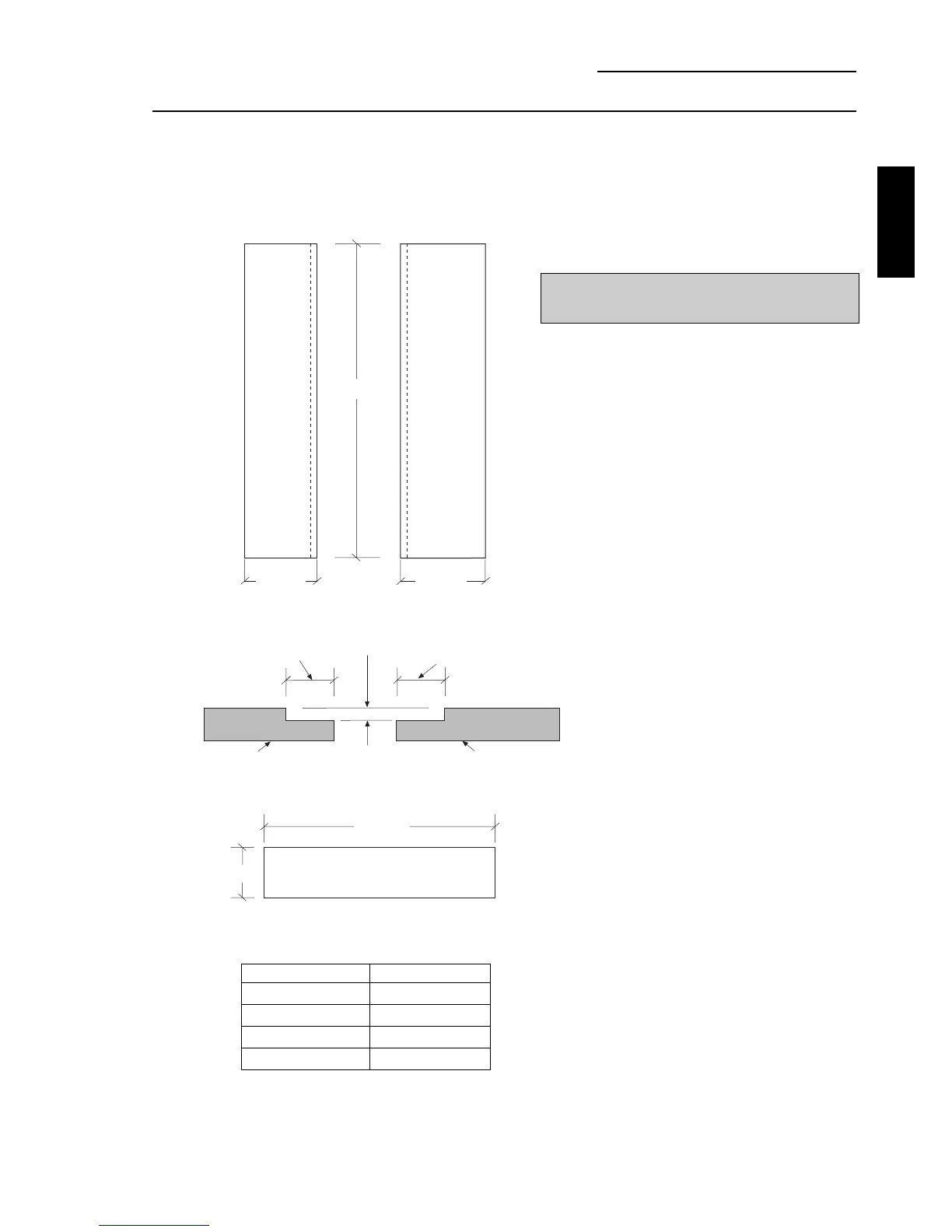

Custom Door Panel Dimensions
Using Trim Kits ZKT48
3/4" thick panel
with custom handle
Installation Height Dimension A
83" 8-1/4"
83-1/2" 8-3/4"
84" 9-1/4"
84-1/2" 9-3/4"
Important:
Maintain 1-1/2" min. gap between
top of doors and bottom of grille panel.
Grille Panel height can vary to fill installation
height.
Freezer Panel
Fresh Food Panel
67 15/16"
19 5/16"
27 5/16"
1 13/16"
1 13/16"
1/4"
max
Freezer Door FaceFreezer Door Face
Fresh Food Door Face
Rout panels to specification below on
the handle side of each panel
Custom Grille Panel
47 1/2"
A
Over 1/4" Thick (3/4" max) Panel
CUSTOM PANEL
DIMENSIONS
Important: Maximum weight for fresh food panels is
50 pounds and 30 pounds for freezer door panels.
