10

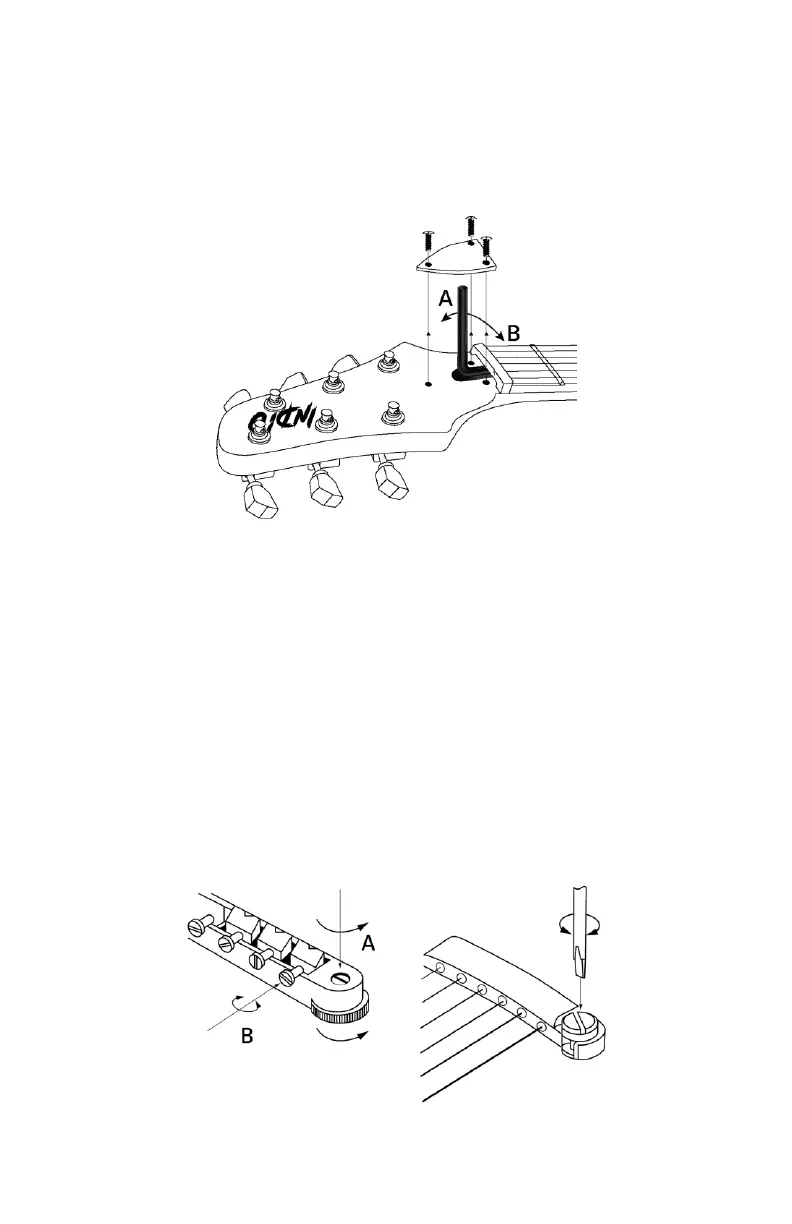

4. If your guitar is a Route 66 model, use a #1 Phillips screwdriver to
remove the screws securing the truss rod cover to the headstock.
5. Using the included truss rod wrench, turn the truss rod no more
than 1/4 turn in the direction indicated in step 3 above.
6. Repeat steps 1-3 and 5-6 until no further adjustment is necessary.
BAR TAILPIECE (Route 66 models only)
Replace the strings by feeding the new string through the hole in the
tailpiece, then over the saddle.
Adjust the intonation by moving the saddle forward or backward using the
intonation adjustment screw and a flat head screwdriver.
Adjust the height by turning the screws at each end of the bridge using a
flat head screwdriver.
