Arranging Multiple Pumps 6 Mounting
42 User Manual RKP-II (CA53461-001; Version 2, January 2010) © 2010 Moog GmbH
Adapter flange SAE-C with 14-tooth shaft

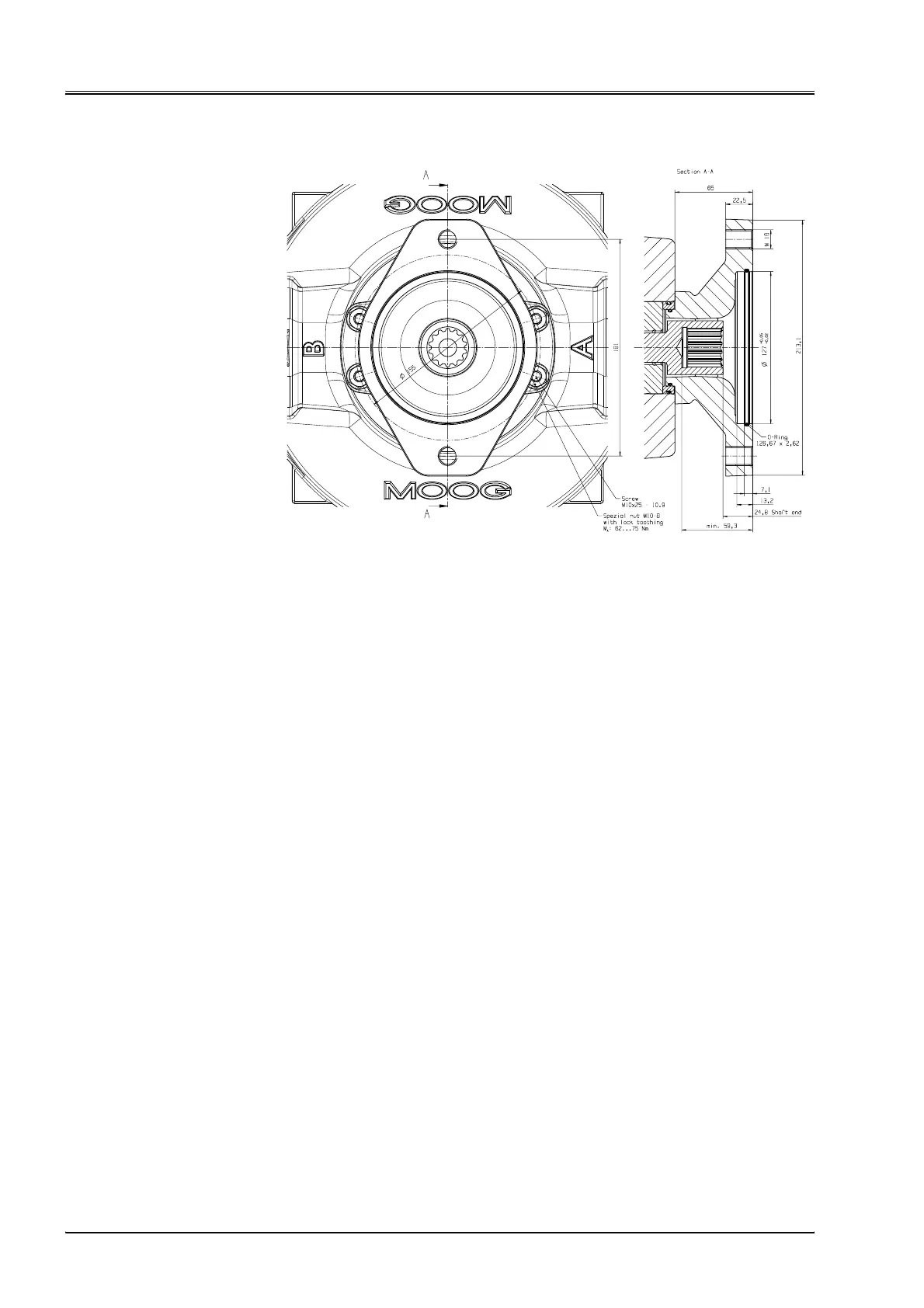

Fig. 24: Adapter flange SAE-C with 14-tooth shaft
Adaptor including through-drive shaft, seals (HNB-R), intermediate ring for
RKP 140 and 4 fastening screws and special nut.
Flange Code: 127-2
Shaft Code: 32-4
Toothing to: ANSI B92.114T 12/24DP Flat root side fit
Conditions for
attachment: RKP with heavy-duty through-drive
