Roll Set Point:
This is the angle of roll that the boat is trying to achieve in the specified mode. Factory
default settings are colored gray. User-edited set points are colored orange. Use the arrow
keys to highlight this selection and press Select. Use the  and + keys to adjust, then press
Done.
Reset Set Points:
Selecting this will change the user set points (orange) to
match the default set points in the current mode.

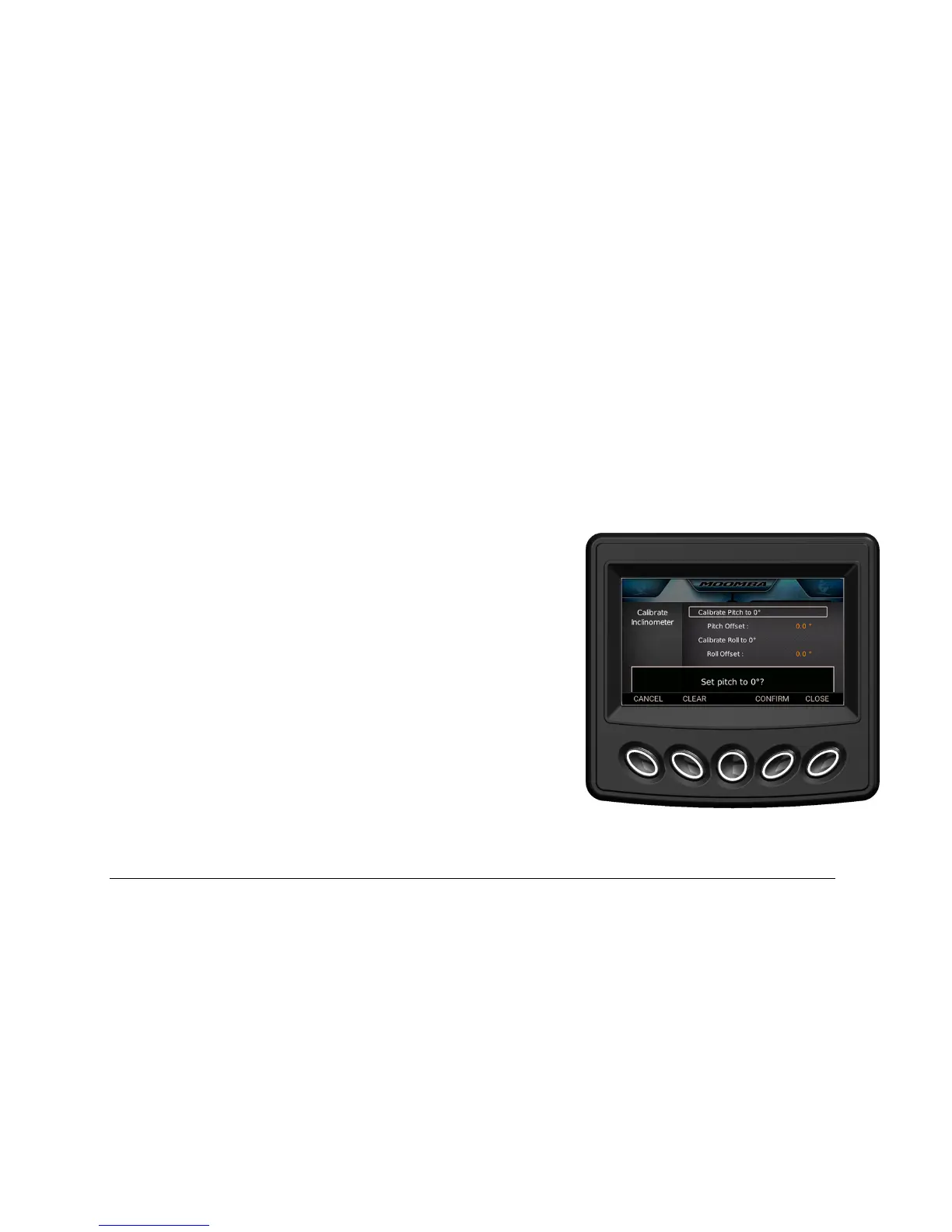

Calibrate Inclinometer:
This selection will display the options to calibrate the pitch
and roll (separately) to 0°. Use the arrow keys to highlight
Calibrate Inclinometer and press Select. Then arrow to
Calibrate Pitch or Calibrate Roll and press Select. The
screen to the right will appear:
Cancel:
Cancels the calibration. AutoWake will continue to use the
previous calibration. This returns the screen to the
AutoWake Settings page.
