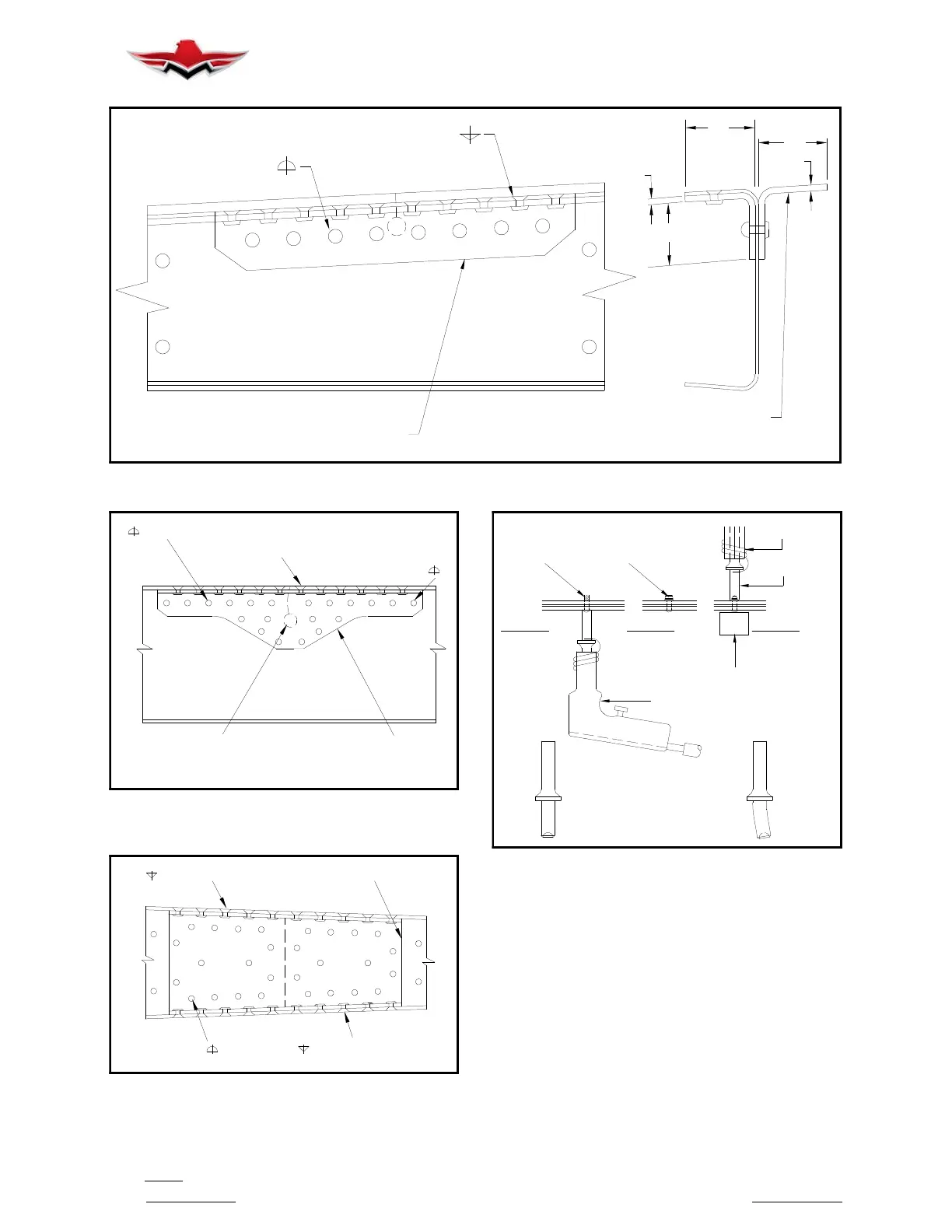

SPAR REPAIR (STA. 48.5 APPROX.)
FIGURE 51- 21
CRACKED SPAR WEB AREA)
STOP- DRILL (OR REMOVE
(10 EACH SIDE OF CRACK)
4
2024- T3
.050
(6 EACH SIDE OF CRACK)
4
SPAR REPAIR (OUTBD. of STA. 34.0)
FIGURE 51- 22
(5 EACH SIDE)
4
4
(5 EACH SIDE)
4
.050 2024T- 3 CLAD
SPAR REPAIR
FIGURE 51- 23
SWAGE SET
#5 & #6
STRAIGHT
HUCK STUMP
STUMP
DRIVE HUCK
STEP 1
SWAGE SET
RIVET GUN
SWAGE SET
BENT #5
HUCK COLLAR
RIVET GUN
INSTALL
STEP 2
COLLAR
BUCKING BAR
COLLAR
SWAGE
STEP 3
REMATING HORIZONTAL STABILIZER TO
STRINGER
FIGURE 51- 24
51-14-03 - RIB REPAIR
The repair of damaged stabilizer and fin ribs is not fea-
sible in most cases. Damaged ribs should be replaced
with new parts.
51-14-04 - REMATING HORIZONTAL STABILIZER
TO STINGER
When stabilizer repair necessitates removal from the
stinger, remating can be facilitated by using huckbolt
substitution information contained in Section
51- 10- 01. When mating stabilizer to stinger use bent
rivet swage set #5 (Figure 51- 24).
