MOONEY INTERNATIONAL CORPORATION
M20V SERVICE AND MAINTENANCE MANUAL
Date
MAR 2017
Rev Date
Page
7
1
2
3
5
4
6, 6A
9
7
8
10
15
20
16, 17, 18
19
13
14
12
23
22
21
6A
11
24
1. CABIN DOORS
2. ENGINE COMPARTMENT
3. BAGGAGE DOOR
4. ELEVATOR/RUDDER CONTROL STOPS
5. EMPENNAGE ATTACHMENT
6. AVIONICS BLACK BOXES, BATTERY, ELT ACCESS
6A. BATTERY ACCESS
7. STABILIZER TRIM JACK SCREW
8. EMPENNAGE ATTACHMENT
9. ELEVATOR/RUDDER CON TROLS, ROD END BEARINGS & TRAVEL STOPS
10. RUDDER CONTROLS, ELEVATORS & RUDDER BELLCRANKS
11. BRAKE MASTER CYLINDERS, ELECTRIC FUEL PUMPS
12. LANDING GEAR ACTUATOR, GASCOLATOR, FUEL SELECTOR VALVE
13. LANDING GEAR RERACT TUBES
14. ELECTRIC FLAP ACTUATOR
15. STABILIZER TRIM SCREW AND STOPS
16. ELEVATOR/RUDDER/AILERON CONTROL SYSTEM
17. ELEVATOR/RUDDER/AILERON CONTROL SYSTEM BELLCRANKS
18. CONTROL SYSTEM/LANDING GEAR ROD END BEARINGS
19. NOSE WHEEL STEERING SYSTEM, COWL FLAP CONTROLS
20. RUDDER TORQUE TUBE
21. LANDING GEAR ACTUATOR AND RETRACTION TUBES
22. TAIL- LIGHT HARNESS CONNECTIONS
23. EMPENNAGE ATTACHMENT, TRIM JACK SCREWS
24. OIL FILLER ACCESS
1

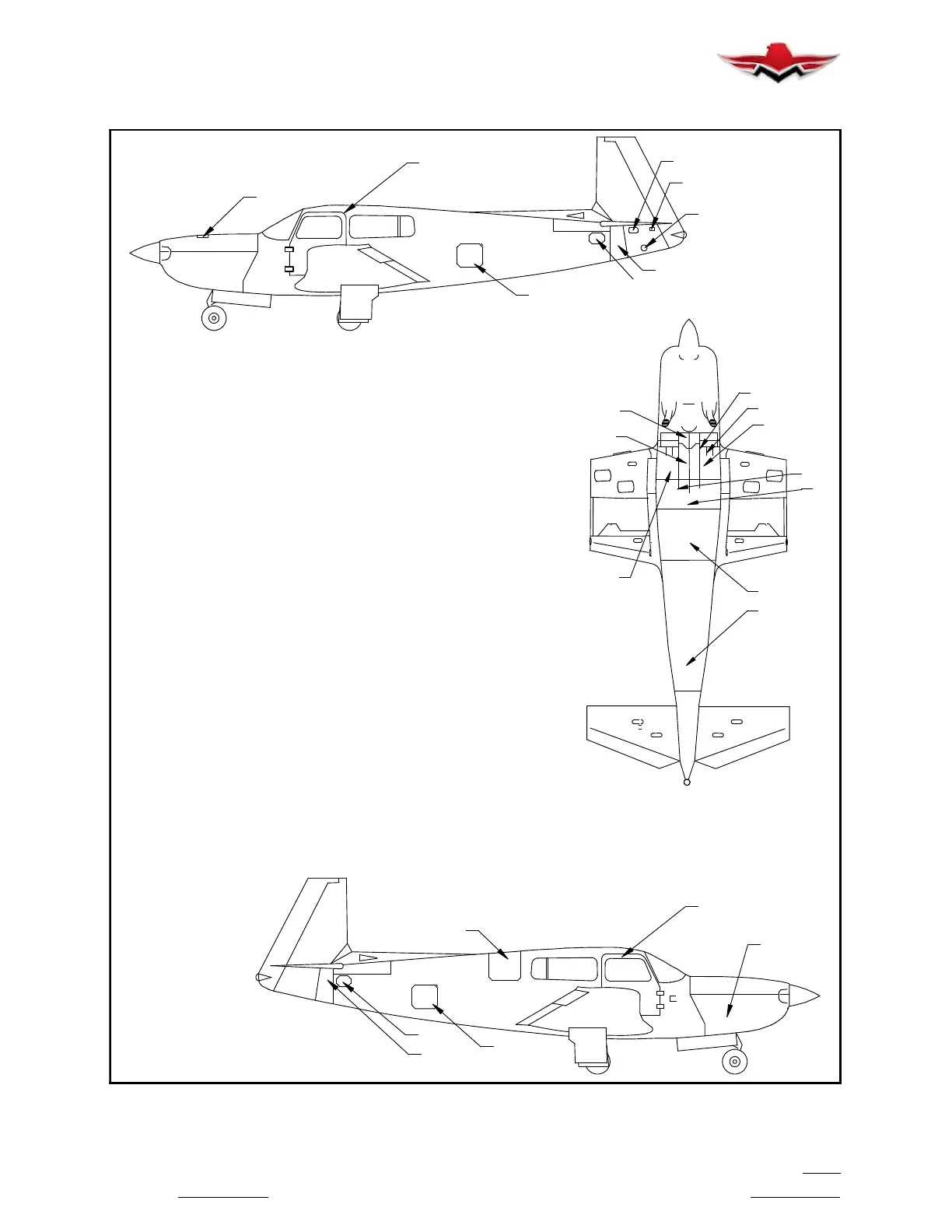

INSPECTION PANELS AND COVERS
FIGURE 53- 3
53-20-00
