MOONEY INTERNATIONAL CORPORATION
M20V SERVICE AND MAINTENANCE MANUAL
Date
MAR 2017
Rev Date
Page
15
FRONT
OF
ENGINE
LH SIDE
OF
ENGINE
RH SIDE
OF
ENGINE
REF
1
590052- 517
590052- 515
590052- 519
590052- 521
BOLT
NAS-6607-48
WASHER
600364-7
HEAT SHIELD
600532-1
LORD MOUNT
J-9612-44
SPACER
Y-16440-2-497
LORD MOUNT
J-9612-43
KIT
J-9613-76
HEAT SHIELD
600394-7
SPACER
Y-16440-2-497
KIT
J-9613-76
LORD MOUNT
J-9612-44
HEAT SHIELD
600532-1
WASHER
600364-7
BOLT
NAS-6607-48
WASHER
600364-7
HEAT SHIELD
600394-7
WASHER
Y-13748-532
WASHER
600364-5
LORD MOUNT
J-7763-53
LORD MOUNT
J-7763-53
KIT
J-7764-31
KIT
J-7764-31
LORD MOUNT
J-7763-53
SPACER
J-10931-17
SPACER
J-10931-17
HEAT SHIELD
600394-7
HEAT SHIELD
600429-503
WASHER
600364-7
WASHER
600364-7
BOLT
NAS-6607-48
BOLT
NAS-6607-48
LORD MOUNT
J-7763-53
INSTALLATION OF SHIELDS:
INDEX DRAIN HOLES AT LOWEST POINT OF INSTALLATION
& INDEX FO UR CUTOUTS PARALLEL TO FOUR SIDES OF ENGINE MOUNT.
NOTE:

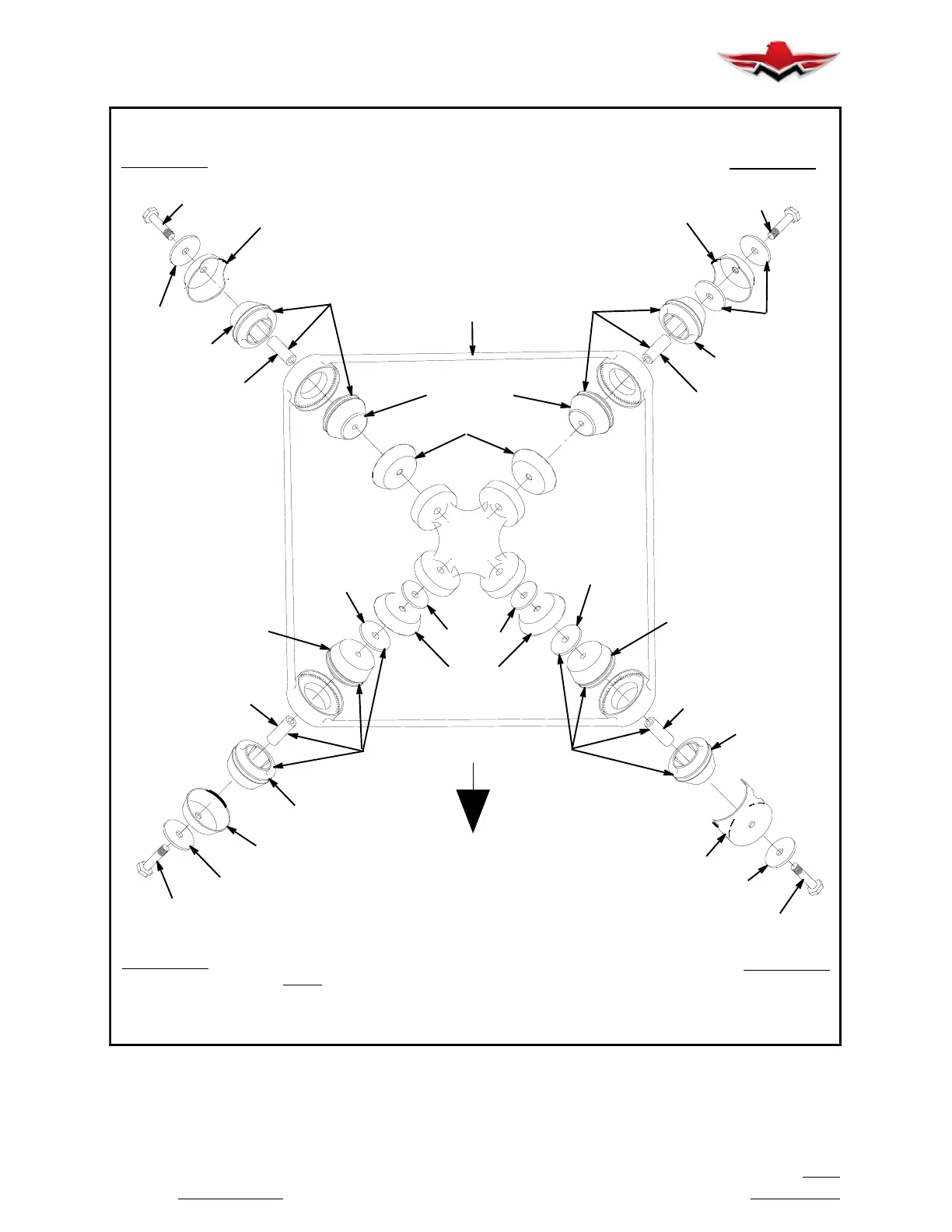

ENGINE MOUNT SEQUENCE
FIGURE 71- 5
71-20-01
