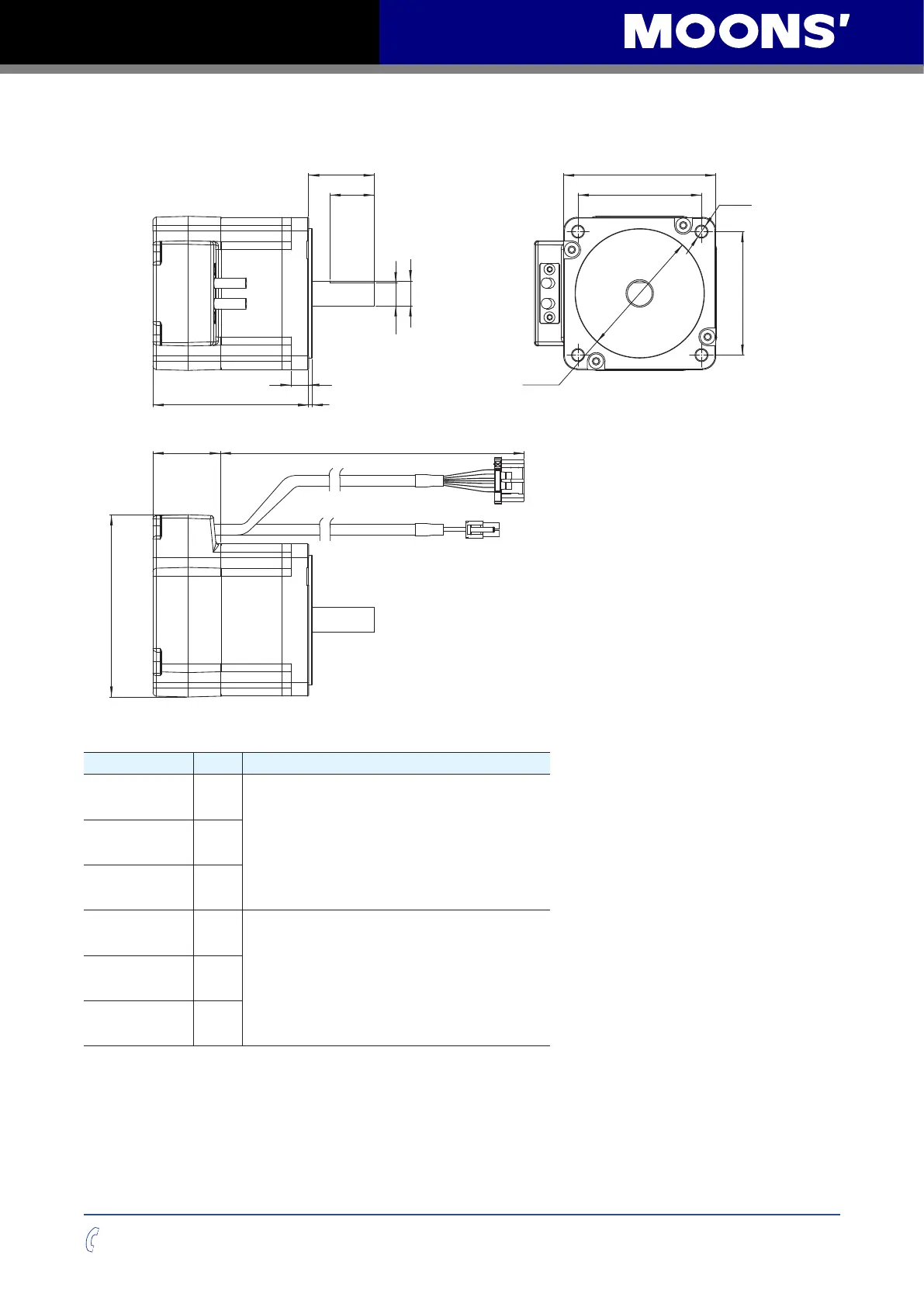

AM34 Series
37
25
Φ14
13FLAT
10
2L
86
69.6
4-Φ6.5
69.6
Φ73.025
300
38
103
Model L Connector On Cable
AM34RS1DMA 88
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-6 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM34RS3DMA 117.5
AM34RS5DMA 147
AM34SS1DGA-N 88
Motor cable
Housing: 39-01-3048 (Molex)
，
1pcs
Crimp: 39-00-0038 (Molex)
，
4pcs
Encoder cable
Housing: 1-1827864-0 (Tyco)
，
1pcs
Crimp: 1827569-2 (Tyco)
，
15pcs
AM34SS3DGA-N 117.5
AM34SS5DGA-N 147
