2005 K J with S K R E E M
2004 K J with S K IM
FACTORY HARNESS
BRAKE SWITCH
PR OGR AMMING
BUTTON
FACTORY
IGNITION
HARNES S
MAL E
IGNITION S WITC H
CONNECTOR
FEMALE
IGNITION S WITC H
CONNECTOR
82208859
PC-12 MODULE
DIPOL E ANTE NNA
REMOTE START DNA
05140471AA
82209083
82209082
HOOD TILT
S WITCH (S UPPL IE D)
GROUND
COWL PANEL
IGNITION C OIL
CONNECTOR
05140473AA
FACTORY HARNESS
FACTORY
HARNES S
6-WAY WHITE STEERING COLUMN HORN
SWITCH CONNECTOR (UNDER COLUMN)
Module B lack/R ed to
G reen/Violet P in #2 (2005 K J )
Black/Red Pin #2 (2004 KJ)
Black/White
Module R ed/Y ellow to
Gas - Blue/Yellow (2005 KJ)
Gas - Red/Yellow (2004 KJ)
Diesel - Dk Blue/Grey @ E CM
to White/T an P in #2
05140470AA
SKREEM INTERFACE
LOOP ANTENNA

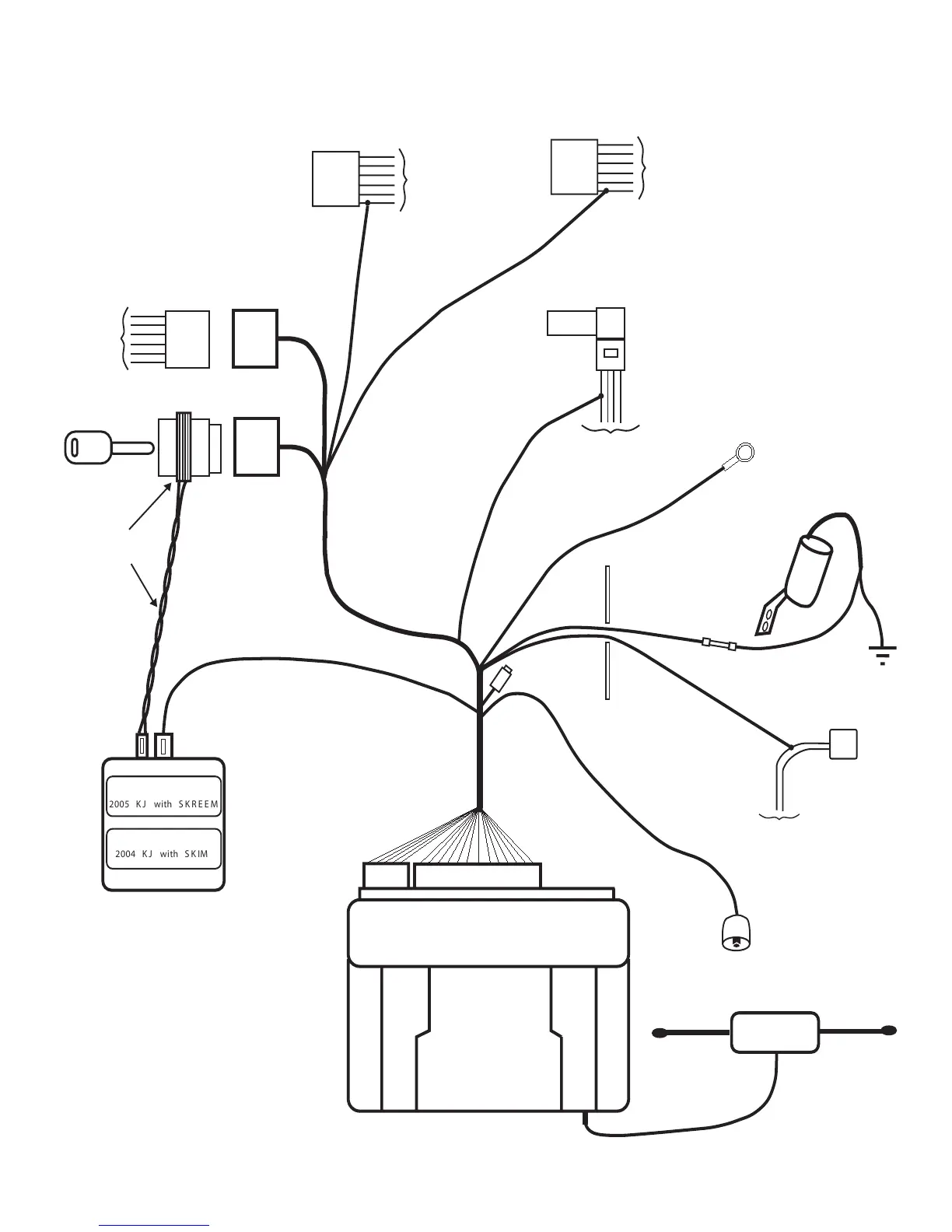

JEEP LIBERTY (KJ) SYSTEM LAYOUT
Module White/Tan
FACTORY
HARNES S
10-WAY GREY STEERING COLUMN MULTI-FUNCTION
SWITCH CONNECTOR (TOP OF COLUMN)
Module Lt Green/Orange to
Pink/Red Pin #5 (2005 KJ)
Lt Green/Orange P in #5 (2004 KJ )
