STAND, 59" | 07
Step 3
Step 4
G
x8
F
x1
J
x4
I
x12
± 2 mm
J
I
7
2
G
F
12
12
12

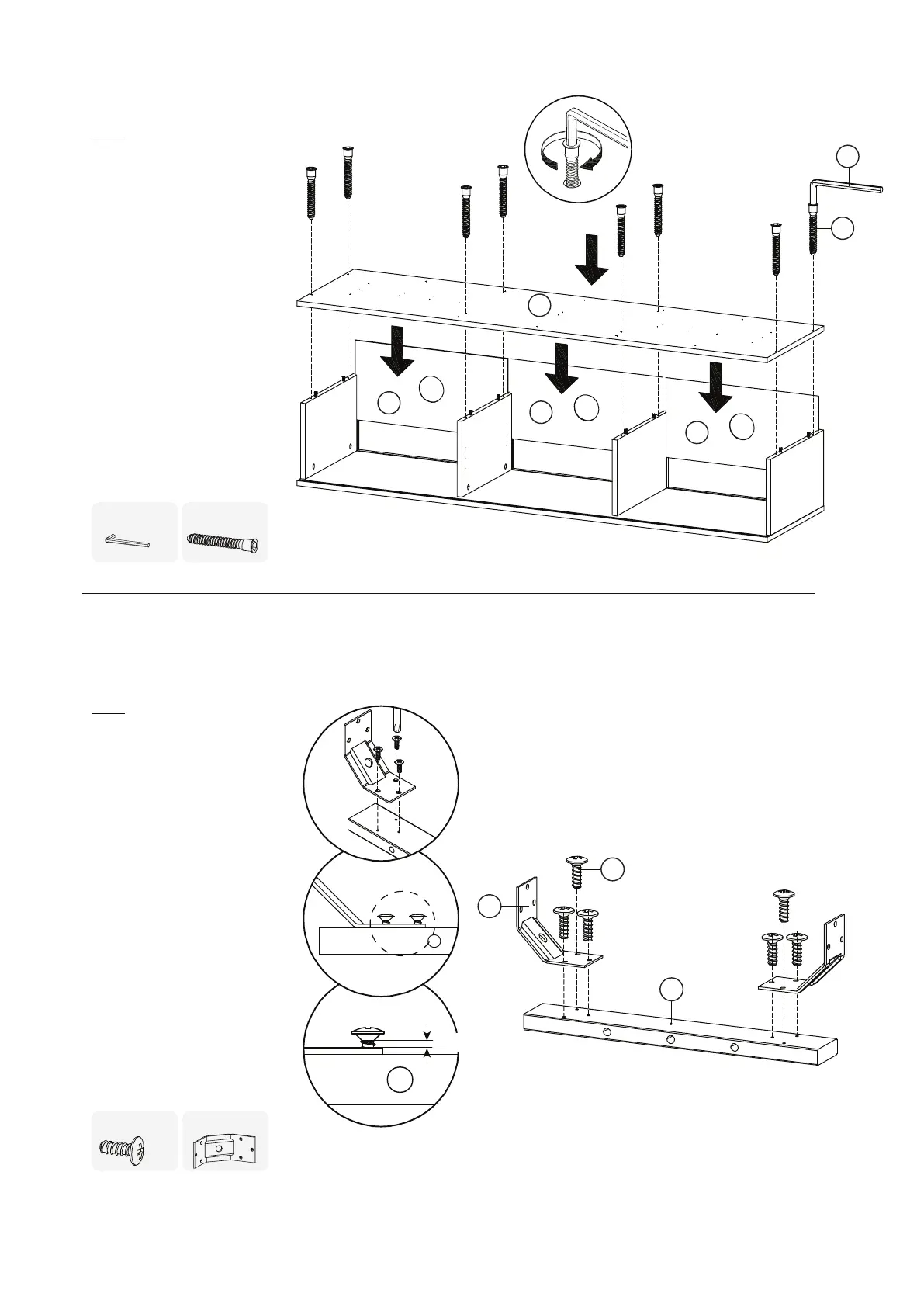

Slide in board no 12 into
the groove. If it doesn't
match, please refer to Step
no 2. Place board No.2. on
top. Insert screw G into
holes indicated and screw
in with Allen Key F.
Do not fully tighten until all
screws are engaged and
screwed in properly.
Prepare leg frame No. 7
(2pcs) and install bracket J
with screw I.
Do not fully tighten the screw
(leave about 2mm), you will
tighten it on Step 9. Please
refer to the illustration
carefully for the bracket
placement orientation.
x2
To Next Page
