mopio Haylee - Step 5: Connecting Leg Frames; Step 6: Securing Leg Frames

TV
STAND, 59" | 08
Step 5
Step 6
I
x6
I
x6
± 2 mm
6
7
7
I
± 2 mm
6
I

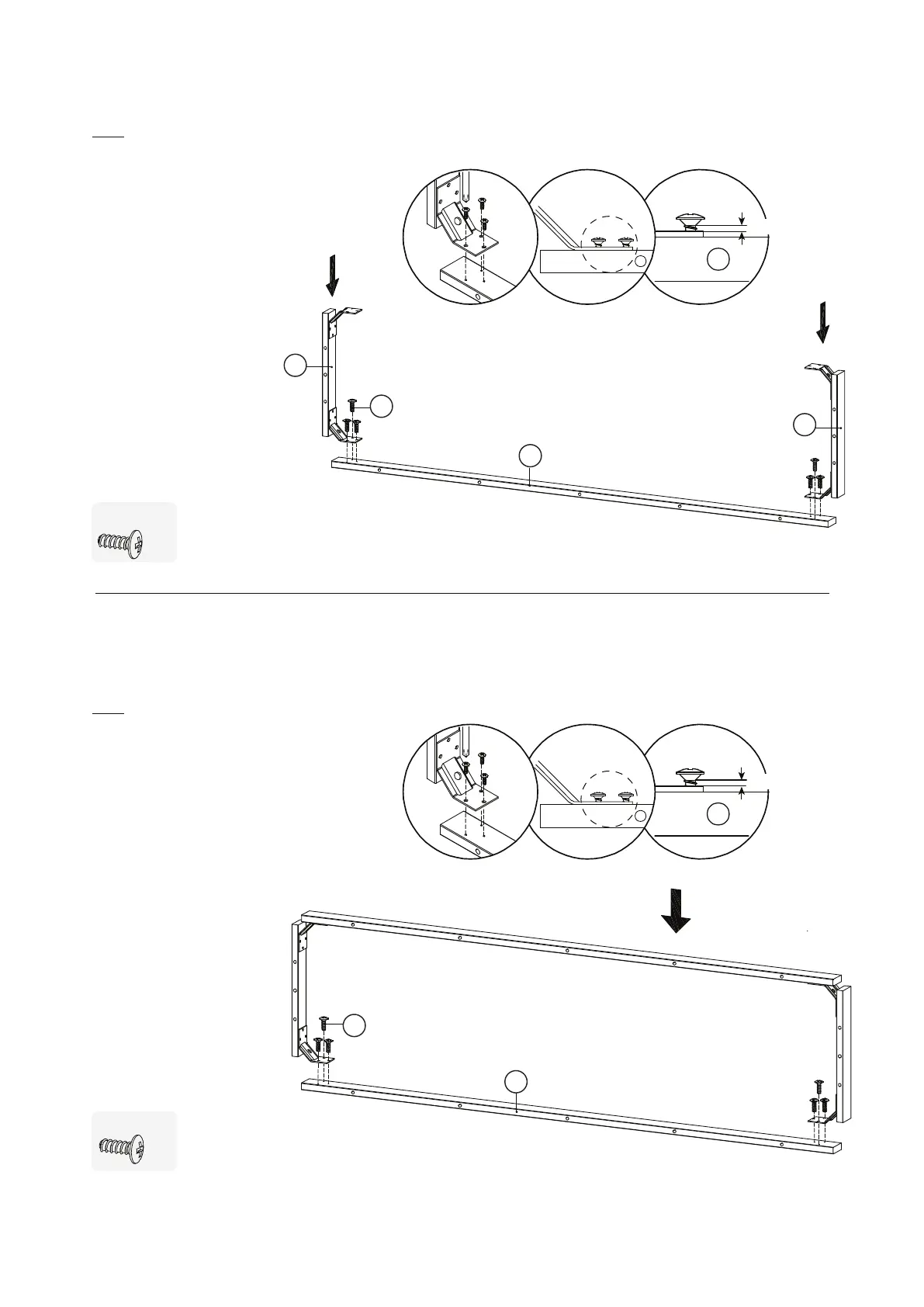

Prepare leg frame No. 6 and
connect with 2 pieces of leg
frame No.7 according to the
position illustrated.
Do not fully tighten the screw
(leave about 2mm), you will
tighten it on Step 9.
Please refer to the illustration
carefully for the bracket
placement orientation.
Prepare another leg frame No.6
and connect with 2 pieces of
leg frame No.7 according to the
position illustrated.
Do not fully tighten the screw
(leave about 2mm), you will
tighten it on the Step 9.
Please refer to the illustration
carefully for the bracket
placement orientation.
