Morco FEB24ED3* - Boiler Dimensions and Connection Details

11

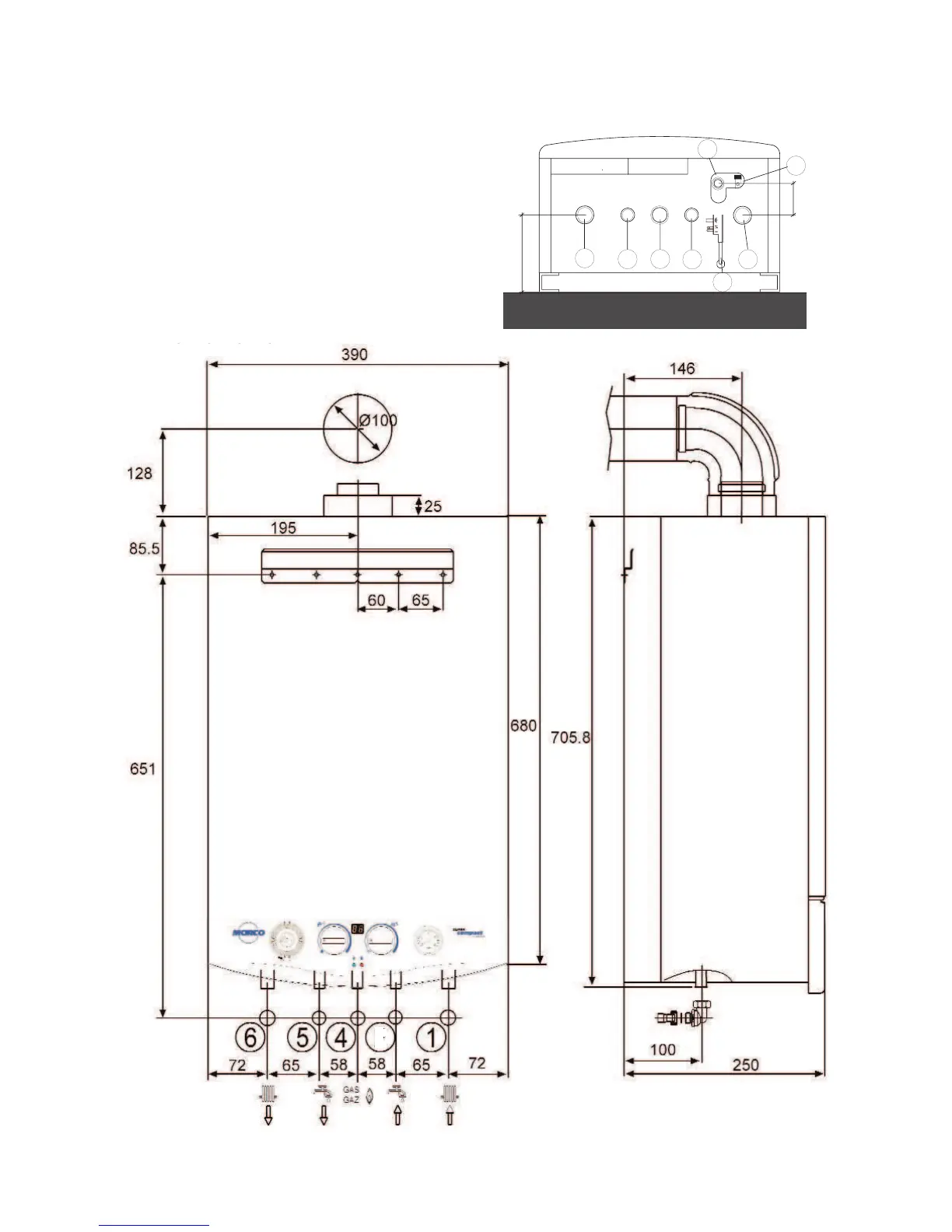

DIMENSIONS AND CONNECTIONS DETAILS
6
5 4
3
1
8
7
2
9
50
10
0
1.- 3/4” BSP Central heating return
2.- Mains cable
3.-1/2” BSP Domestic cold water inlet
4.- 3/4” BSP Gas inlet
5.- 1/2” BSP D.H.W. outlet
6.- 3/4” BSP Central heating ow
8.- Pressure Relief Valve
9.- Draining valve for central heating
T.A.:Room thermostat connection
T.A.
asdasdfasdfasdfasdf
CH ow DHW DCW CH Return
Gas Inlet
