Clock - External Sync Mode - Display Overview

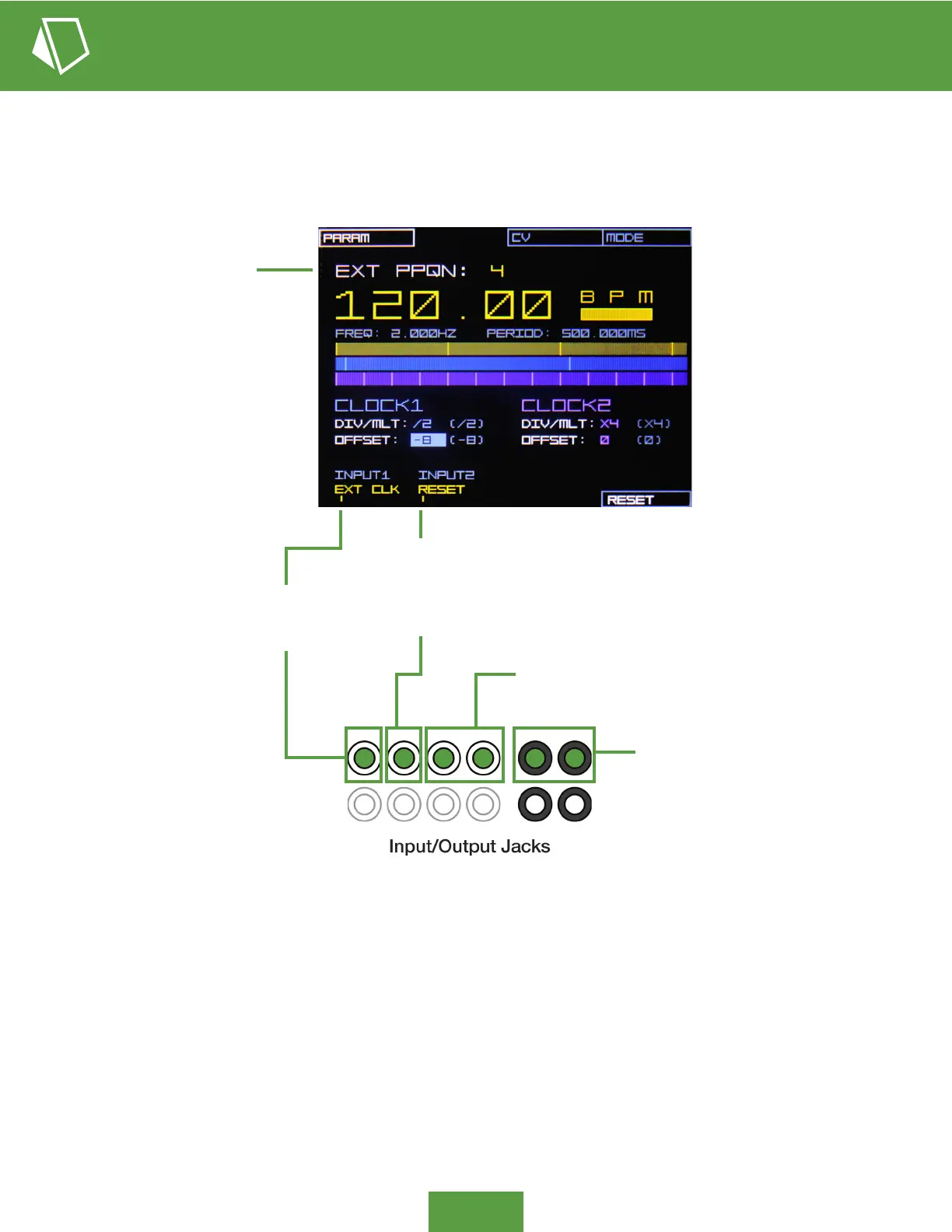

EXT PPQN: The expected pulses
per quarter note (PPQN) of the
incoming external clock signal.
Typically eurorack sequencers put
out 4 PPQN. This can also work
as another stage of clock division/
multiplication and for working in
odd time.
PPQN Range = 1-12, 16, 24, 32.
Most elements are the same as INTERAL MASTER MODE referenced previously;
only those unique to EXTERNAL SYNC MODE are highlighted below.
INPUT1 - EXT CLK: Indicates the
function of INPUT1. This is the input
for incoming external clock signal.
INPUT2 - RESET: Indicates the function of
INPUT2. Send a gate signal to reset the clock
generator’s measure position (applies to longer
division settings). Some sequencers have a RESET
out jack; connect it here.
CV Control: Input channels 3 & 4 can be
assigned control over either clock’s div/mult
or offset parameters.
Clock Out: Clock 1 and 2 output, 5V
peak-to-peak (0V to +5V) trigs
